Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-006-9149 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: MS141016, MS14101-6, MS212326, MS21232-6, NRRG6, ADB6V, AS14101, BS12ATC26, HSB6TL201, HSB6TL-201, HT6VL1, SBS12ATH26M, SWKN6400, SWKN6-400, KNDB633, KNDB6-33, KR6CNGB, KR6-CNGB, LHSSV6, HT6V, 0382506, 03-825-06, 04A0646, 04A064-6, 10107682 , 261136, 85701081, 8570108-1, 3120-01-006-9149, 01-006-9149, 3120010069149, 010069149
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 23 JUL 1975 | 01-006-9149 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

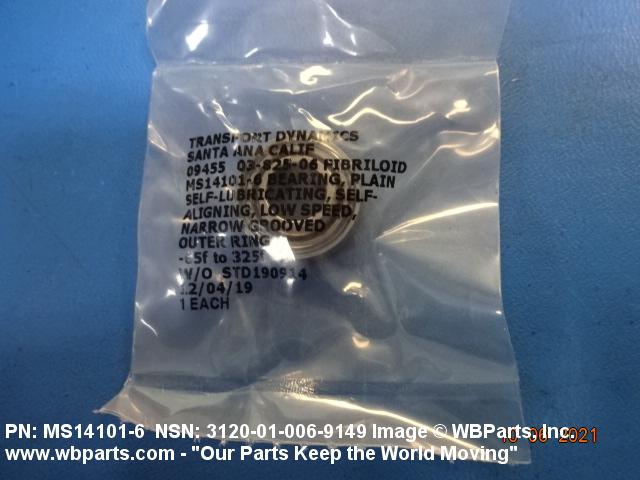

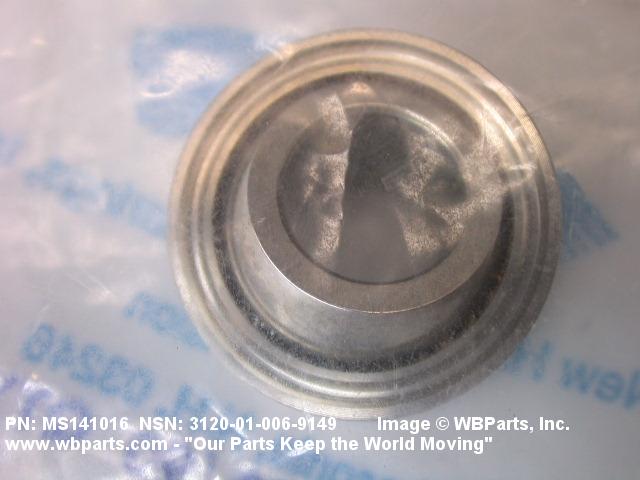

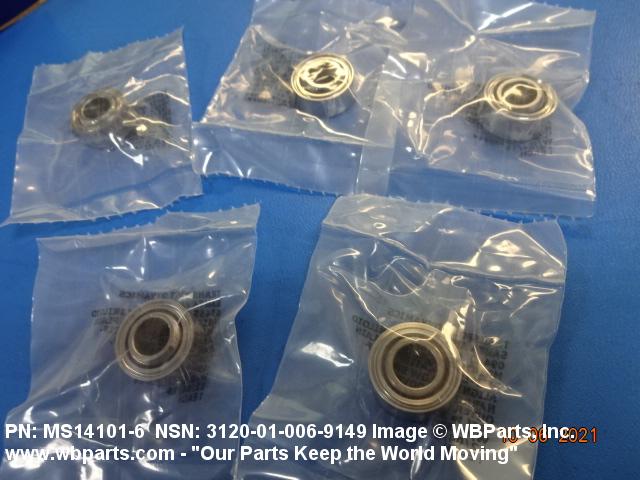

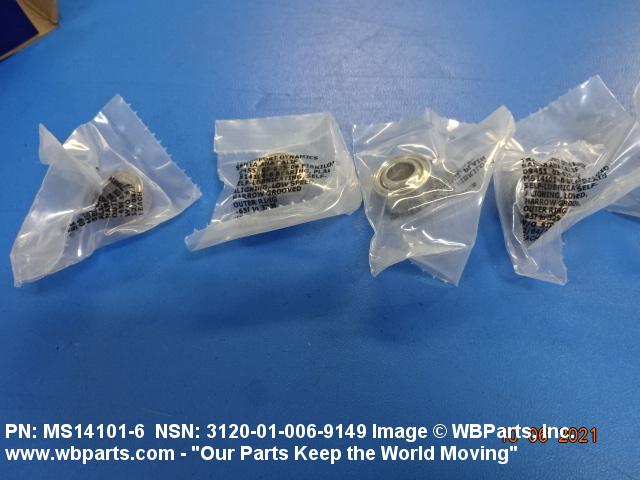

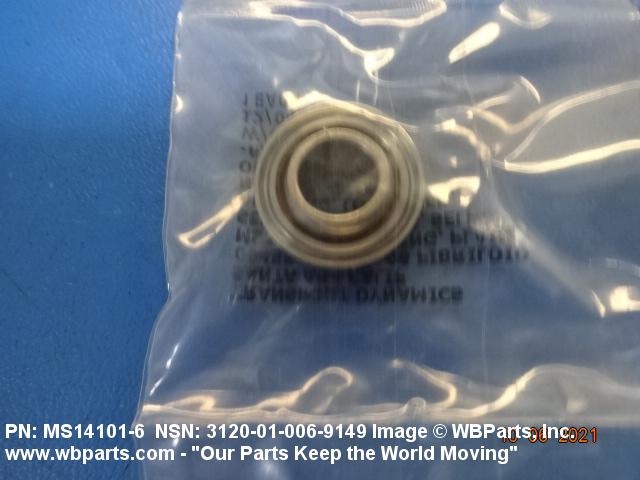

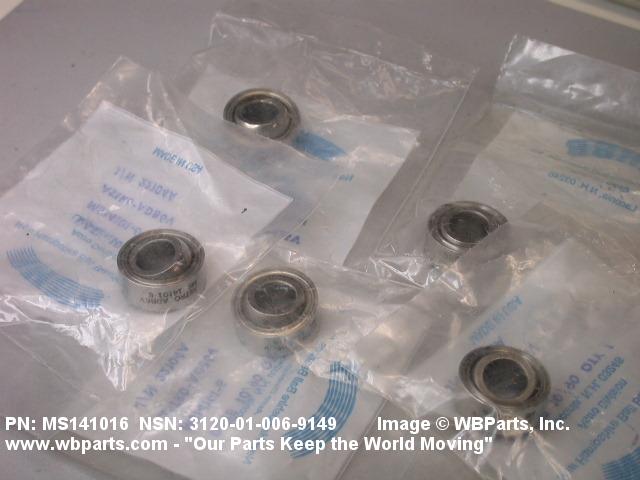

Drawings & Photos | NSN 3120-01-006-9149
Demand History | NSN 3120-01-006-9149
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-006-9149 | 2024-03-24 | 369 | DIBBS |
| 3120-01-006-9149 | 2024-03-14 | 130 | DIBBS |
| 3120-01-006-9149 | 2023-08-31 | 61 | DIBBS |
| MS212326 | 2023-04-07 | 1 | United States |
| 3120-01-006-9149 | 2023-02-15 | 10 | Taiwan |
| MS141016 | 2022-03-18 | 25 | United States |
| 3120-01-006-9149 | 2021-05-11 | 51 | Turkey |
| 3120-01-006-9149 | 2020-06-29 | 4 | SA |
| 3120-01-006-9149 | 2019-09-30 | 3 | US |
| MS141016 | 2018-10-19 | 100 | United States |
| 3120-01-006-9149 | 2017-11-07 | 1 | DIBBS-RFPs |
| 3120-01-006-9149 | 2017-10-15 | 56 | DIBBS |
| 3120-01-006-9149 | 2017-10-03 | 56 | DIBBS |
| 3120-01-006-9149 | 2017-09-17 | 78 | DIBBS |
| 3120-01-006-9149 | 2017-07-05 | 105 | DIBBS |
| 3120-01-006-9149 | 2017-05-16 | 106 | DIBBS |
| MS141016 | 2016-03-10 | 3 | United States |
| MS212326 | 2015-08-31 | 175 | US |
| 3120-01-006-9149 | 2015-05-12 | 18 | United States |
| MS141016 | 2015-04-20 | 25 | United States |
| MS14101-6 | 2015-03-17 | 2 | TH |
| MS141016 | 2014-12-08 | 2 | United States |
| MS14101-6 | 2014-11-13 | 84 | United States |
| 3120-01-006-9149 | 2013-06-03 | 500 | United States |
| 3120-01-006-9149 | 2013-02-01 | 4 | US |
| 3120-01-006-9149 | 2012-10-26 | 20 | PT |
| MS141016 | 2012-08-31 | 25 | United States |
| 3120-01-006-9149 | 2012-05-09 | 8 | Israel |
| 3120-01-006-9149 | 2012-05-09 | 25 | Israel |
| MS141016 | 2012-01-17 | 1 | United Kingdom |
| MS141016 | 2011-03-29 | 16 | United Kingdom |
| 3120-01-006-9149 | 2011-02-08 | 16 | United Kingdom |
| MS141016 | 2010-09-16 | 150 | United States |
| 3120-01-006-9149 | 2010-05-04 | 804 | DIBBS |
| MS212326 | 2010-03-18 | 4 | DK |
| MS141016 | 2010-02-12 | 22 | United States |
| 3120-01-006-9149 | 2009-09-24 | 1788 | DIBBS |
| 3120-01-006-9149 | 2008-12-05 | 1059 | DIBBS |
| 3120-01-006-9149 | 2008-07-22 | 5 | US |
| 3120-01-006-9149 | 2008-06-04 | 10 | BE |
| 3120-01-006-9149 | 2008-02-19 | 25 | United States |
| 3120-01-006-9149 | 2007-10-25 | 200 | DIBBS |
| MS141016 | 2007-07-09 | 1 | United States |
| 3120-01-006-9149 | 2007-04-05 | 254 | DIBBS |
| 3120-01-006-9149 | 2007-01-22 | 392 | DIBBS |
Cross Reference | NSN 3120-01-006-9149
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03-825-06 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 04A064-6 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 261136 | 0KDP7 | KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS |
| 261136 | 96487 | VALCOR ENGINEERING CORP |
| 8570108-1 | 19200 | US ARMY ARDEC RDECOM |
| ADB6V | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| AS14101 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BS12ATC26 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| BS12ATC26 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| HSB6TL-201 | 02758 | U S BEARINGS |
| HT6V | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| HT6V(L1) | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| KNDB6-33 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| KR6-CNGB | 50632 | KAMATICS CORPORATION |
| LHSSV6 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| MS14101-6 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS14101-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21232-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NRRG6 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| SBS12ATH26M | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| SBS12ATH26M | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| SWKN6-400 | 81376 | RBC SOUTHWEST PRODUCTS, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3120-01-006-9149
Related Products | NSN 3120-01-006-9149
3120-01-006-9150, 3120-01-006-9151, 3120-01-006-9152, 3120-01-006-9153, 3120-01-006-9320
Technical Data | NSN 3120-01-006-9149
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 OUTER RACE MEMBER PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 23.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER |
| STYLE DESIGNATOR | 10A WITH INSERT AND/OR LINER WITH STAKING GROOVE |
| BORE DIAMETER | 0.3745 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.8120 INCHES MINIMUM AND 0.8125 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.3070 INCHES MINIMUM AND 0.3170 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4040 INCHES MINIMUM AND 0.4060 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 10540 POUNDS |
Restrictions/Controls & Freight Information | NSN 3120-01-006-9149
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-006-9149
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
