NSN 3120-01-013-2446 160D7125021, 160D712502-1, 162D7125022001
Product Details | SLEEVE BUSHING
3120-01-013-2446 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 160D7125021, 160D712502-1, 162D7125022001, 162D712502-2001 , 3120-01-013-2446, 01-013-2446, 3120010132446, 010132446
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 28 NOV 1975 | 01-013-2446 | 13206 ( BUSHING, SLEEVE ) |

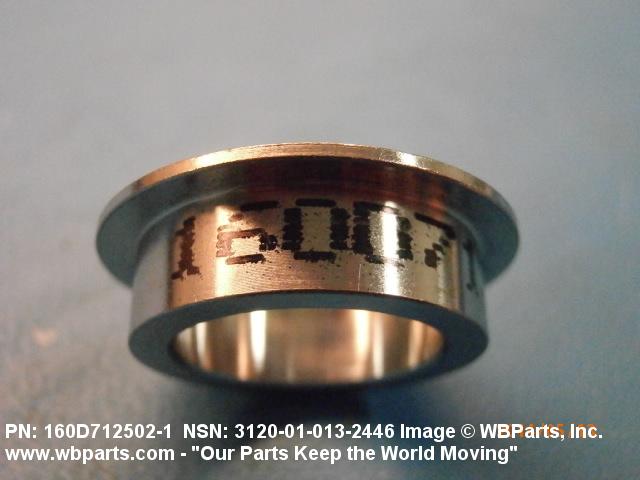

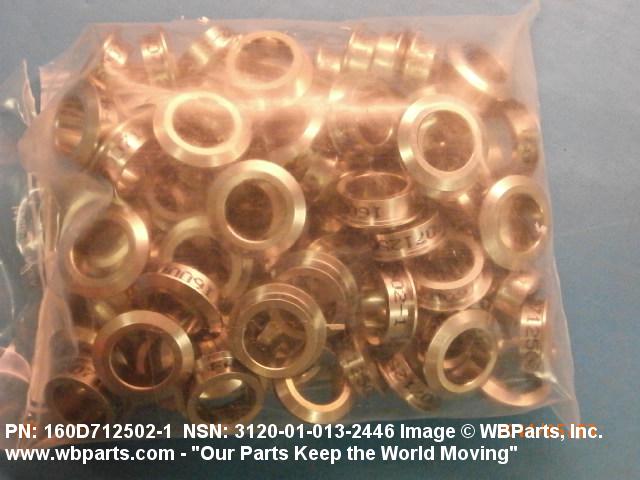

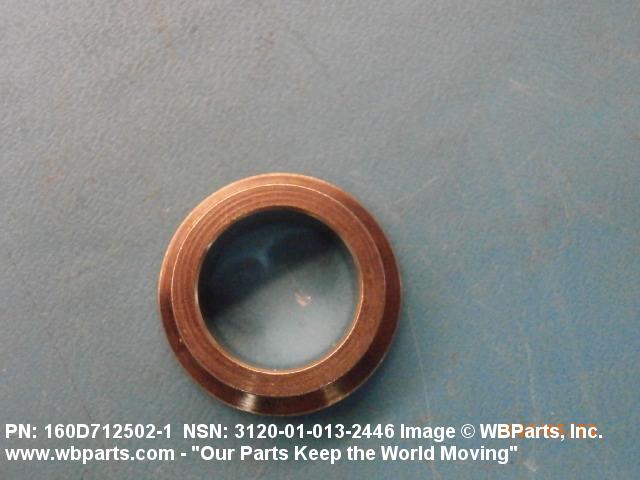

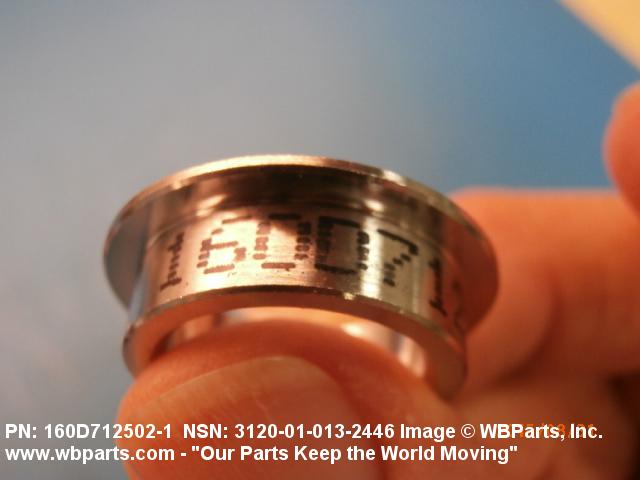

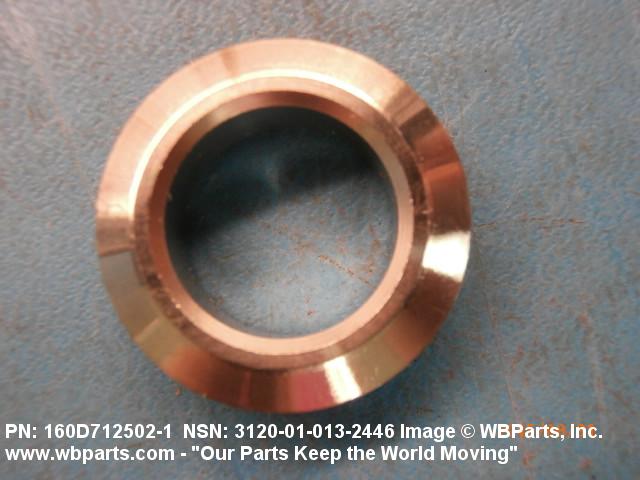

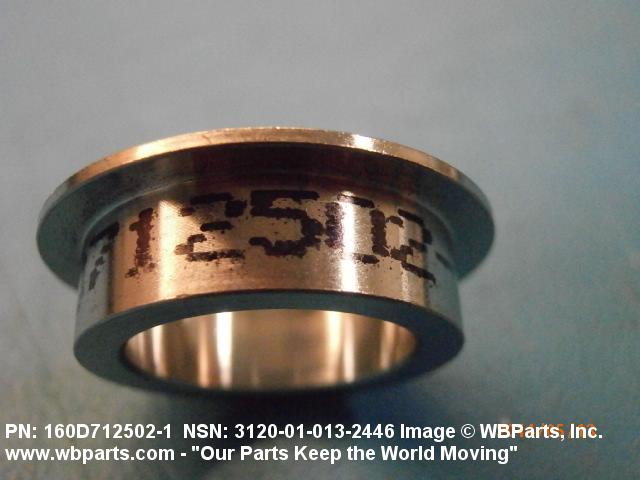

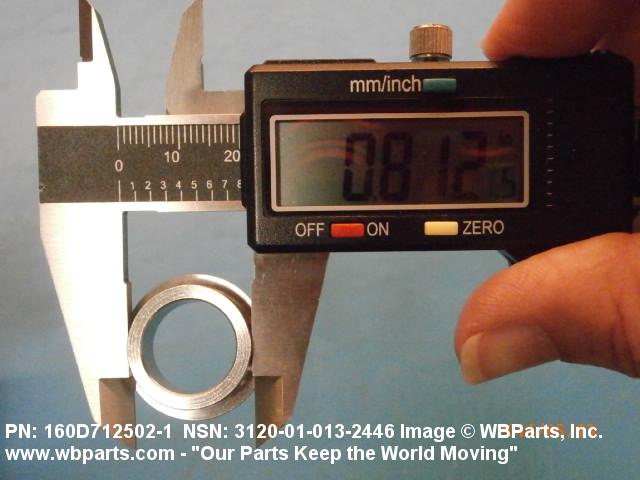

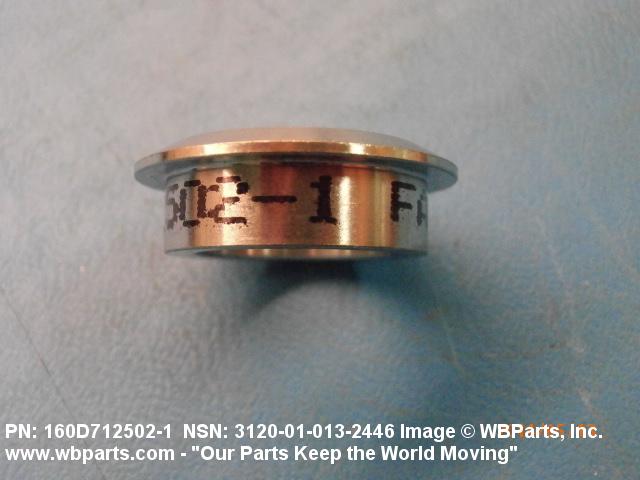

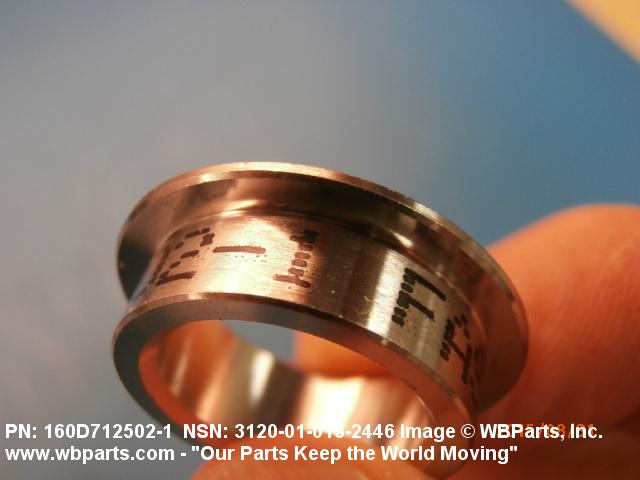

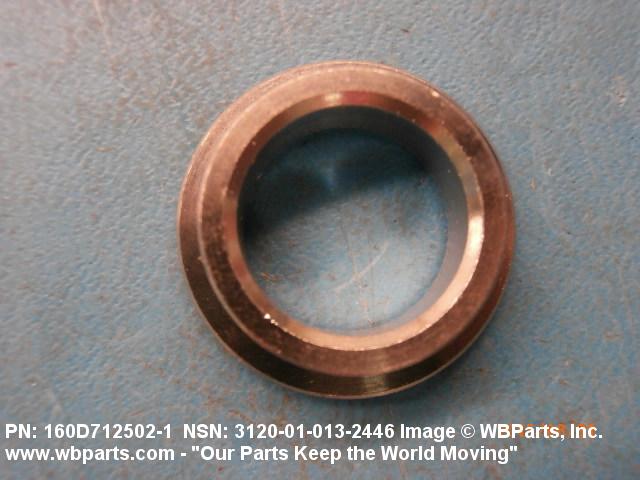

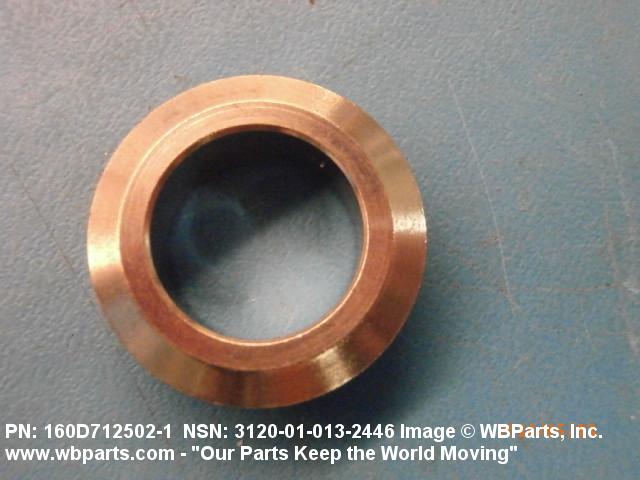

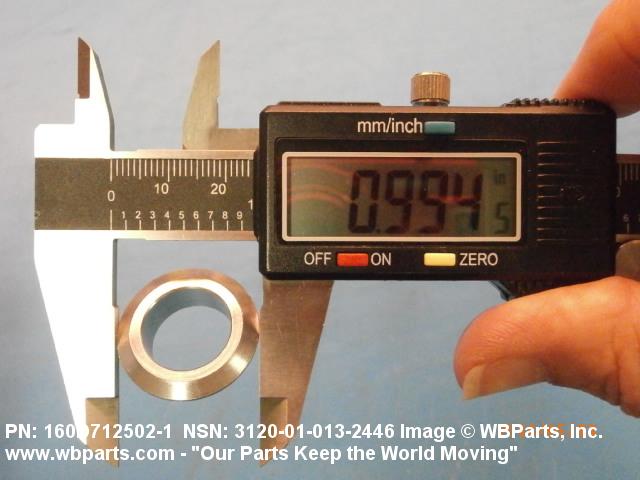

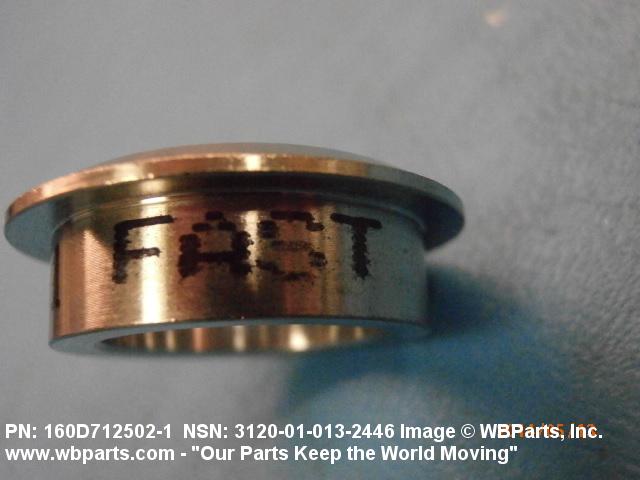

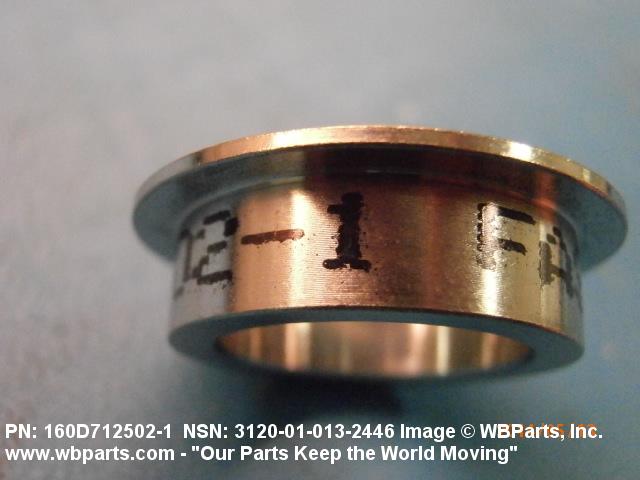

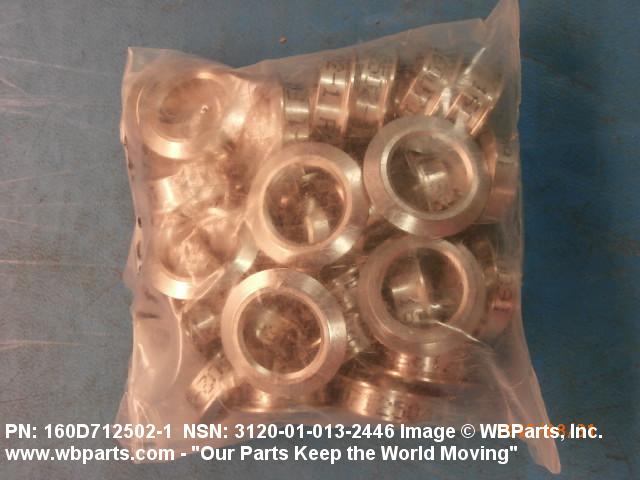

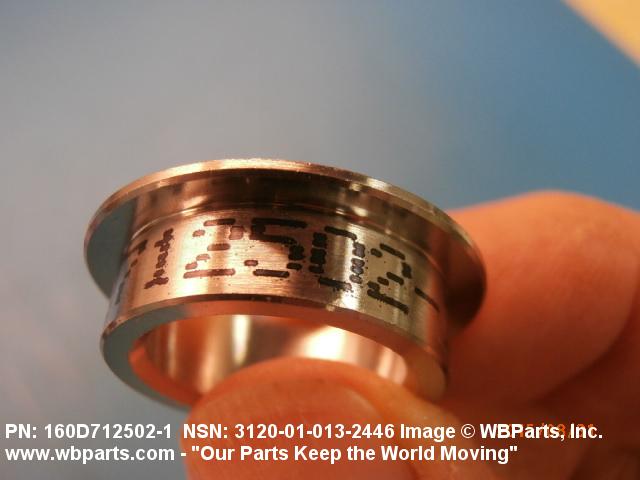

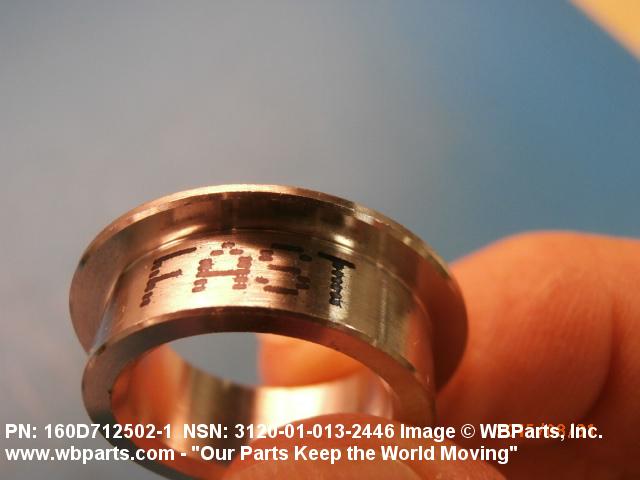

Drawings & Photos | NSN 3120-01-013-2446
Demand History | NSN 3120-01-013-2446
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 160D7125021 | 2018-09-261 | 75 | United States |
| 160D7125021 | 2018-09-261 | 100 | United States |
| 3120-01-013-2446 | 2018-09-249 | 781 | DIBBS |
| 160D7125021 | 2016-09-256 | 25 | US |
| 3120-01-013-2446 | 2016-05-147 | 48 | United States |
| 160D7125021 | 2015-08-226 | 30 | United States |
| 160D7125021 | 2015-08-226 | 100 | United States |
| 3120-01-013-2446 | 2014-11-315 | 513 | DIBBS |
| 160D7125021 | 2014-10-275 | 100 | United States |
| 3120-01-013-2446 | 2014-06-152 | 55 | DIBBS |
| 3120-01-013-2446 | 2014-04-111 | 300 | United States |
| 3120-01-013-2446 | 2012-09-274 | 168 | DIBBS |
| 3120-01-013-2446 | 2012-04-115 | 50 | United States |
| 3120-01-013-2446 | 2011-11-312 | 106 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-013-2446
Technical Data | NSN 3120-01-013-2446
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | TRAINER,SURFACE CONTROLS,MODEL NO. TFE-1 |
| MANUFACTURERS CODE | 26512 |
| DESIGN CONTROL REFERENCE | 160D712502-1 |
Restrictions/Controls & Freight Information | NSN 3120-01-013-2446
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-013-2446
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
