NSN 3120-01-016-9661 MS141036, MS14103-6, MS212306

Product Details | SELF-ALIGNING PLAIN BEARING

3120-01-016-9661 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.

Part Alternates: MS141036, MS14103-6, MS212306, MS21230-6, AS14103, AS81820 , AS81820/1 , AS818201, 0382606, 03-826-06, 10130630 , 3120-01-016-9661, 01-016-9661, 3120010169661, 010169661

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	26 FEB 1976	01-016-9661	13208 ( BEARING, PLAIN, SELF-ALIGNING )

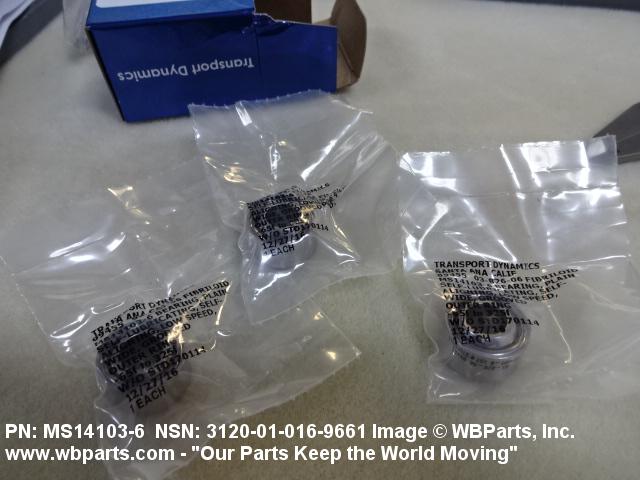

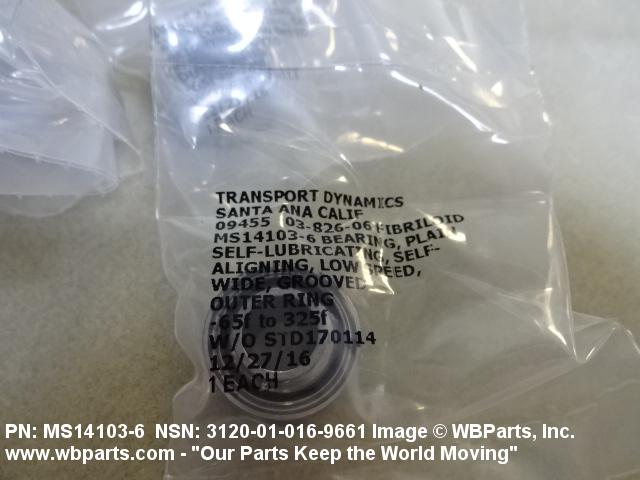

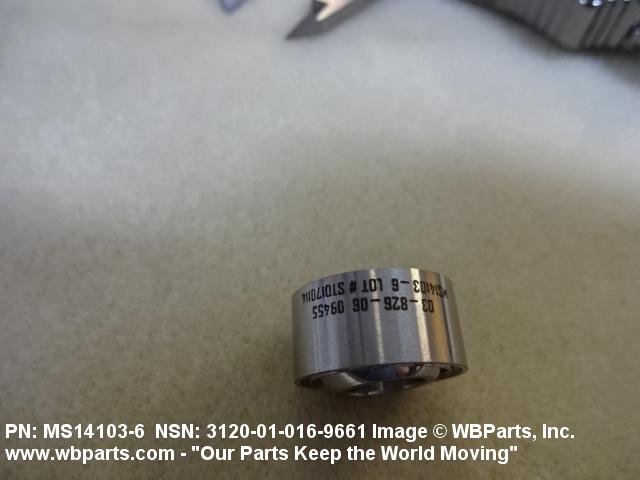

Drawings & Photos | NSN 3120-01-016-9661

Part Number	Request Date	QTY	Origin
MS141036	2025-12-344	10	IL
MS141036	2025-12-344	150	IL
MS141036	2025-07-198	80	Hong Kong
AS14103	2025-04-106	125	United States
MS141036	2023-12-361	60	India
MS141036	2022-11-311	1	Germany
0382606	2022-10-278	100	China
MS141036	2022-08-221	1	Germany
MS141036	2020-08-230	10	MY
3120-01-016-9661	2019-05-134	1	Malaysia
MS141036	2018-03-68	8	United States
3120-01-016-9661	2017-11-320	1	DIBBS-RFPs
3120-01-016-9661	2017-07-187	750	DIBBS
3120-01-016-9661	2017-06-169	184	DIBBS
3120-01-016-9661	2017-03-66	70	DIBBS
MS141036	2016-02-36	52	US
MS141036	2015-09-254	174	United States
MS141036	2014-10-297	310	US
MS141036	2013-01-14	190	United States
MS141036	2012-11-318	150	IT
3120-01-016-9661	2012-10-291	0	DIBBS
MS141036	2012-08-227	40	US
3120-01-016-9661	2012-05-137	34	US
MS141036	2012-04-101	2546	United States
MS141036	2012-01-02	8	UK
3120-01-016-9661	2011-09-264	43	US
3120-01-016-9661	2011-07-187	880	US
0382606	2011-06-152	52	US
MS141036	2011-06-152	52	US
MS141036	2011-03-89	1	US
3120-01-016-9661	2010-11-315	300	FI
3120-01-016-9661	2010-06-167	20	US
3120-01-016-9661	2009-08-237	377	DIBBS
3120-01-016-9661	2009-04-113	6	United Arab Emirates
3120-01-016-9661	2009-01-14	4	US
3120-01-016-9661	2009-01-09	10	us
3120-01-016-9661	2009-01-06	3	US
3120-01-016-9661	2008-12-351	121	United States
3120-01-016-9661	2008-05-123	330	DIBBS
3120-01-016-9661	2008-04-115	500	US
3120-01-016-9661	2008-04-115	300	IT
MS141036	2008-04-95	1240	United States
3120-01-016-9661	2008-03-73	330	DIBBS
3120-01-016-9661	2007-11-306	330	DIBBS
3120-01-016-9661	2007-10-275	10	United States
3120-01-016-9661	2007-06-160	289	DIBBS
3120-01-016-9661	2007-03-87	266	DIBBS
MS141036	2006-12-335	20	US

Cross Reference | NSN 3120-01-016-9661

Part Number	Cage Code	Manufacturer
03-826-06	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
AS14103	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81820	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81820/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS14103-6	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
MS14103-6	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS14103-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21230-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-016-9661

Compare

Related Products | NSN 3120-01-016-9661

3120-01-017-0175, 3120-01-017-0176, 3120-01-017-0177, 3120-01-017-0743, 3120-01-017-0744

Technical Data | NSN 3120-01-016-9661

Characteristic	Specifications
MATERIAL	STEEL COMP 440C INNER MEMBER STEEL COMP 630 OUTER RACE MEMBER PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER
HARDNESS RATING	55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 23.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER
STYLE DESIGNATOR	10A WITH INSERT AND/OR LINER WITH STAKING GROOVE

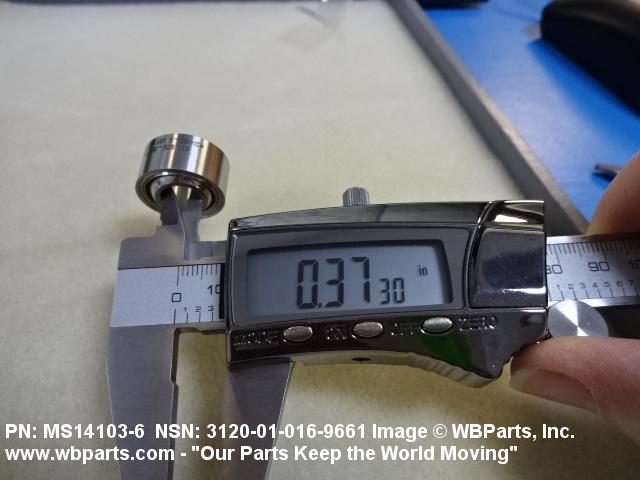

BORE DIAMETER	0.3745 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM

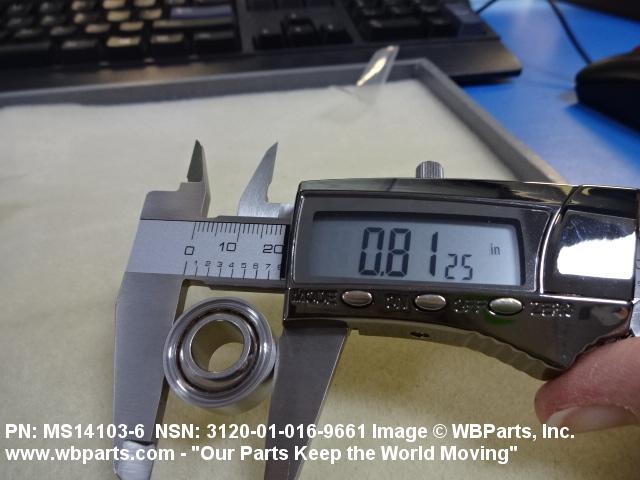

OUTER MEMBER OUTSIDE DIAMETER	0.8120 INCHES MINIMUM AND 0.8125 INCHES MAXIMUM

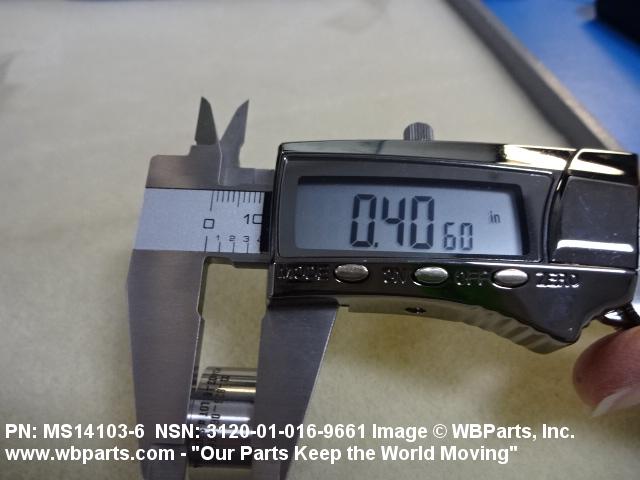

OUTER MEMBER WIDTH	0.4010 INCHES MINIMUM AND 0.4110 INCHES MAXIMUM

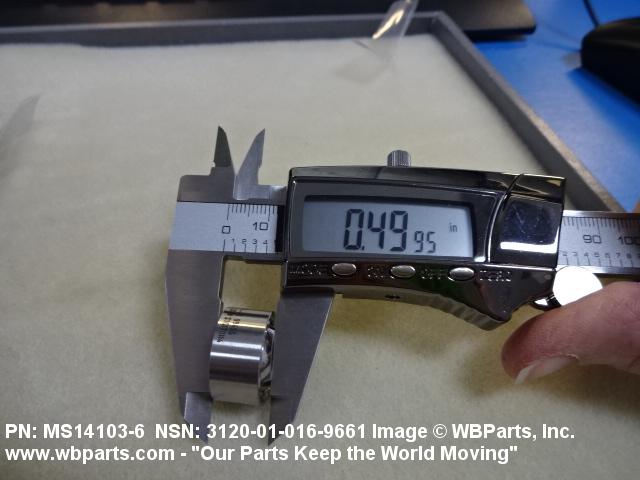

INNER MEMBER WIDTH	0.4980 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM
LUBRICATION MATERIAL	LUBRICANT, MANUFACTURERS STANDARD
LUBRICATION FEATURE	GROOVE EXTERNAL OUTER MEMBER
STATIC RADIAL LOAD RATING	13700 POUNDS

Restrictions/Controls & Freight Information | NSN 3120-01-016-9661

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	133300	MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-016-9661

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
