NSN 3120-01-027-4729 MS141048, MS14104-8, MS212338
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-027-4729 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: MS141048, MS14104-8, MS212338, MS21233-8, AS14104, AS141048, AS14104-8, AS81820, SBG8SS2, KR8CNB, KR8-CNB, 328423, 9452738, 945273-8, 3120-01-027-4729, 01-027-4729, 3120010274729, 010274729
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 SEP 1976 | 01-027-4729 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

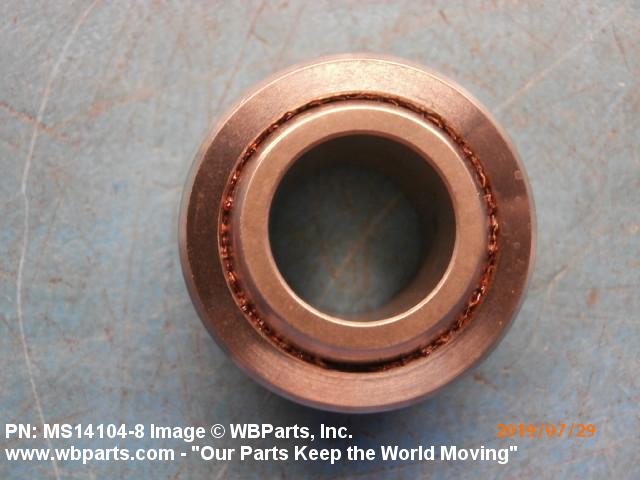

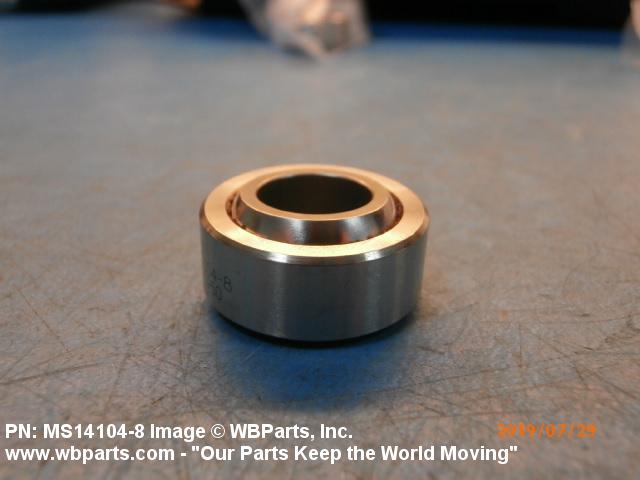

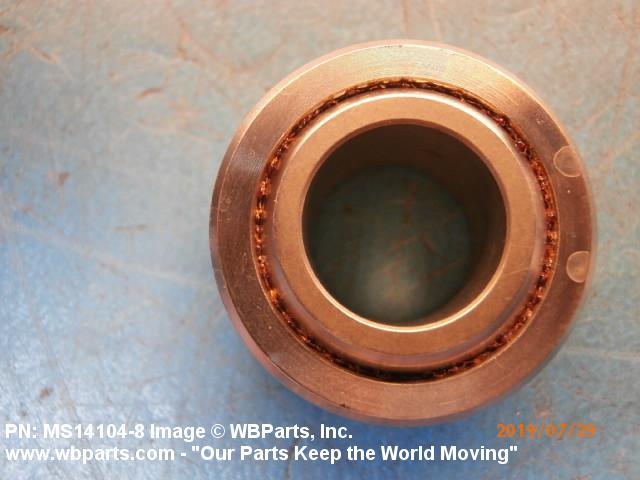

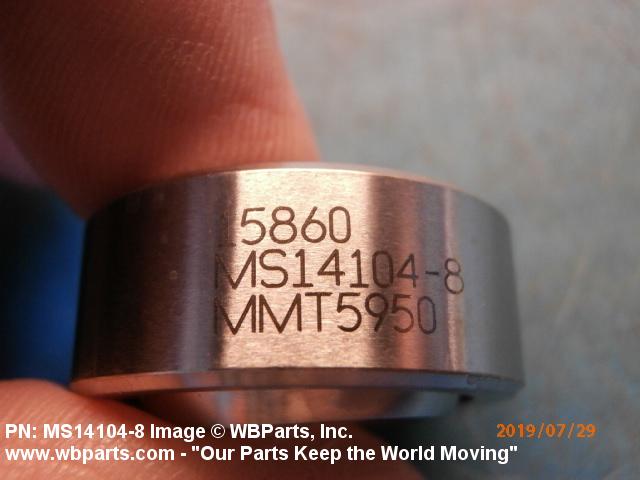

Drawings & Photos | NSN 3120-01-027-4729
Demand History | NSN 3120-01-027-4729
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS141048 | 2025-12-335 | 10 | US |
| MS141048 | 2025-09-262 | 22 | United States |
| 3120-01-027-4729 | 2020-02-51 | 33 | United States |
| MS141048 | 2019-07-182 | 18 | Taiwan |
| MS141048 | 2019-03-64 | 2 | Taiwan |
| MS141048 | 2016-11-319 | 1 | United States |
| AS141048 | 2015-03-79 | 2 | United States |
| 3120-01-027-4729 | 2014-12-343 | 1 | DIBBS-RFPs |
| 3120-01-027-4729 | 2013-04-112 | 3 | United States |
| MS141048 | 2013-04-99 | 0 | United States |
| MS141048 | 2013-04-99 | 48 | United States |
| MS141048 | 2012-03-80 | 22 | UK |
| 3120-01-027-4729 | 2011-12-362 | 16 | US |
| MS141048 | 2011-12-343 | 60 | US |
| 3120-01-027-4729 | 2011-06-153 | 7 | United States |
| MS141048 | 2011-05-136 | 50 | US |
| 3120-01-027-4729 | 2010-09-251 | 2075 | DIBBS |
| MS212338 | 2009-03-90 | 30 | US |
| MS141048 | 2009-03-65 | 1 | US |
| MS141048 | 2008-11-324 | 12 | United States |
| KR8CNB | 2008-07-190 | 20 | US |
| MS212338 | 2007-10-292 | 8 | US |
| 3120-01-027-4729 | 2007-03-69 | 184 | DIBBS |
Cross Reference | NSN 3120-01-027-4729
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 328423 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 945273-8 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| AS14104 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS81820 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| KR8-CNB | 50632 | KAMATICS CORPORATION |
| MS14104-8 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS14104-8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS14104-8 | A9271 | GORIZIANE GROUP SPA |
| MS21233-8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SBG8SS2 | 57448 | STEPHENS-ADAMSON INC A SUB OF ALLIS-CHALMERS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-027-4729
Related Products | NSN 3120-01-027-4729
Technical Data | NSN 3120-01-027-4729
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 OUTER RACE MEMBER PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER |
| STYLE DESIGNATOR | 11A WITH INSERT AND/OR LINER |

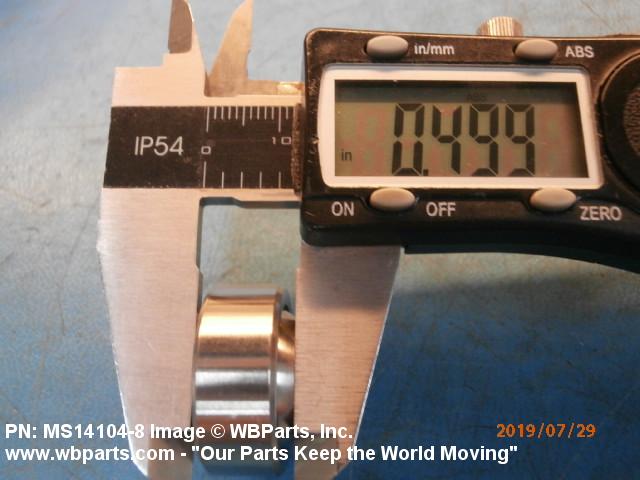

| BORE DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |

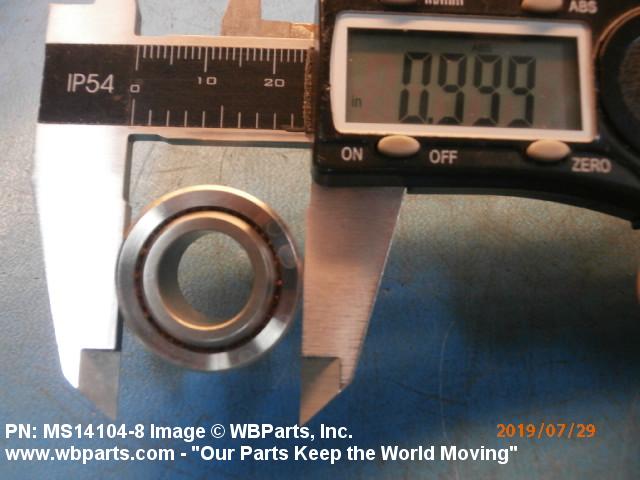

| OUTER MEMBER OUTSIDE DIAMETER | 0.9995 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |

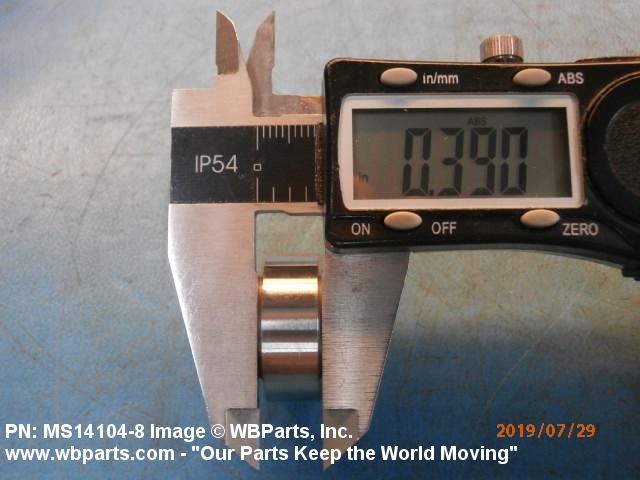

| OUTER MEMBER WIDTH | 0.3850 INCHES MINIMUM AND 0.3950 INCHES MAXIMUM |

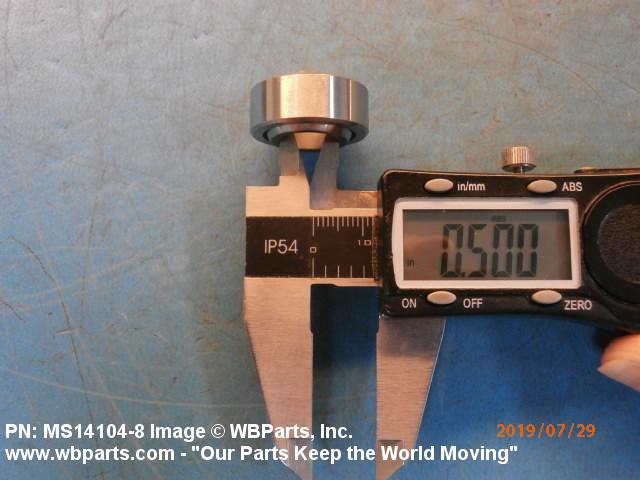

| INNER MEMBER WIDTH | 0.4980 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 17900 POUNDS |
Restrictions/Controls & Freight Information | NSN 3120-01-027-4729
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
