NSN 3120-01-050-5055 MS1410116, MS14101-16, MS2123216

Product Details | SELF-ALIGNING PLAIN BEARING

3120-01-050-5055 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.

Part Alternates: MS1410116, MS14101-16, MS2123216, MS21232-16, NRRG16, NRRG-16, ADB16V, AS14101, AS81820, AS81820/1 , AS818201, HSB16TL201, HSB16TL-201, HT16V, HT16VL1, SWKN16400, SWKN16-400, KNDB1633, KNDB16-33, KR16CNGB, KR16-CNGB, 0382516, 03-825-16, 04A06416, 04A064-16, 10124411 , 3120-01-050-5055, 01-050-5055, 3120010505055, 010505055

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	08 NOV 1977	01-050-5055	13208 ( BEARING, PLAIN, SELF-ALIGNING )

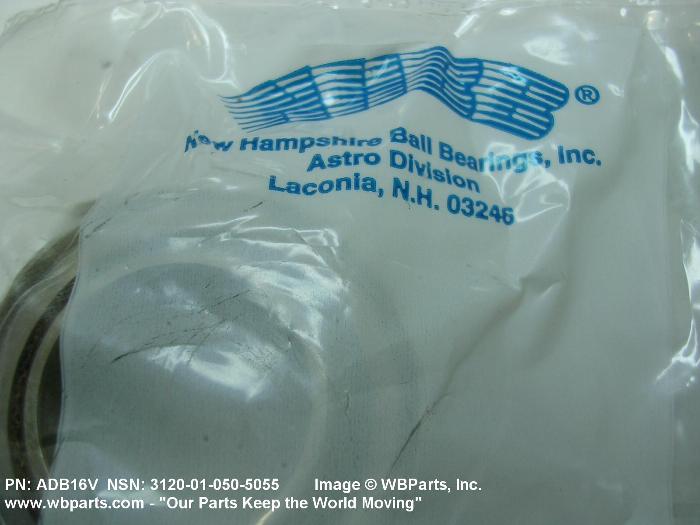

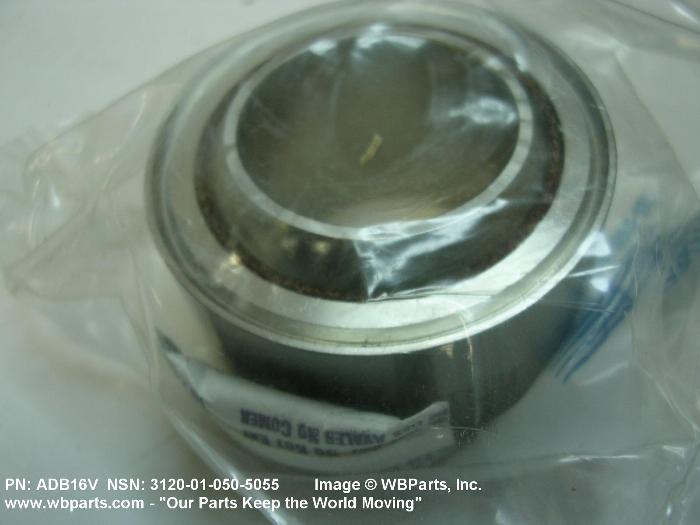

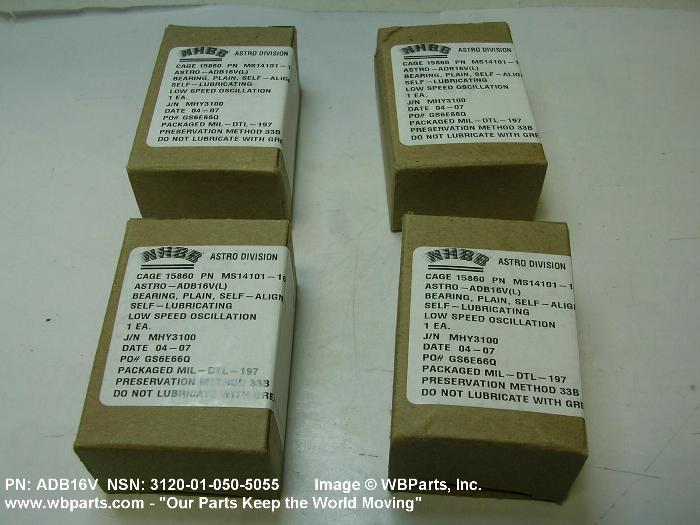

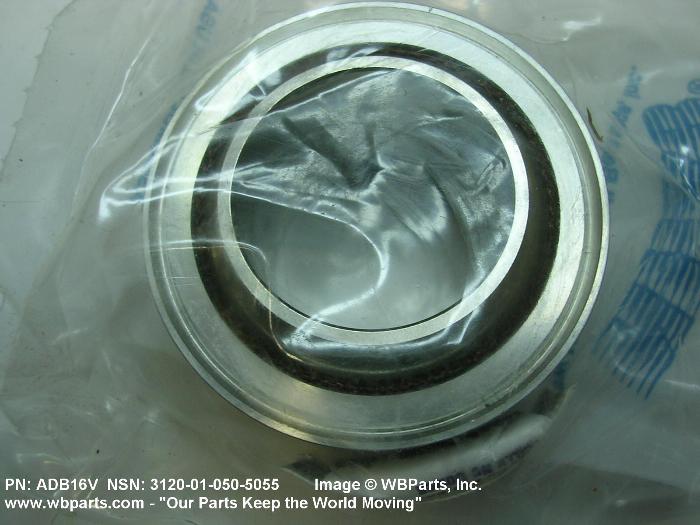

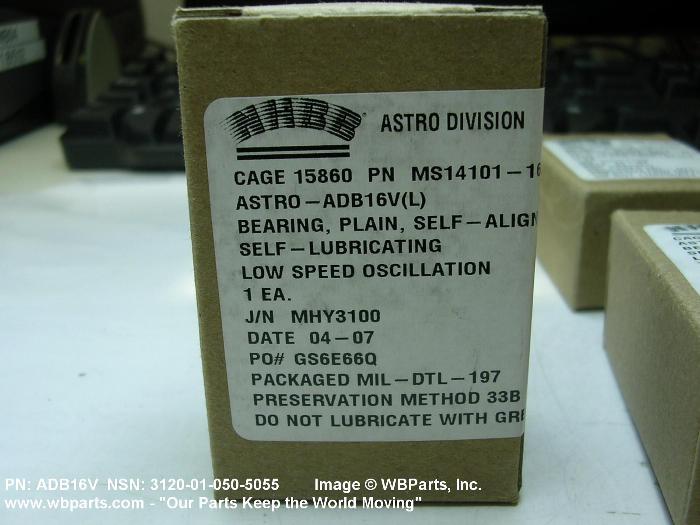

Drawings & Photos | NSN 3120-01-050-5055

Part Number	Request Date	QTY	Origin
MS1410116	2024-08-235	10	United States
3120-01-050-5055	2024-04-93	24	DIBBS
MS2123216	2023-03-89	1	United States
ADB16V	2022-10-284	4	China
3120-01-050-5055	2022-08-242	1	AE
3120-01-050-5055	2022-08-242	10	AE
3120-01-050-5055	2022-08-241	2	United States
KR16CNGB	2022-08-241	2	US
KR16CNGB	2022-08-240	5	United Arab Emirates
3120-01-050-5055	2022-08-240	2	IN
3120-01-050-5055	2021-07-182	1	United States
3120-01-050-5055	2019-12-338	84	DIBBS
3120-01-050-5055	2019-07-191	150	DIBBS
3120-01-050-5055	2019-03-65	14	DIBBS
3120-01-050-5055	2019-03-64	18	DIBBS
3120-01-050-5055	2019-03-62	33	DIBBS
3120-01-050-5055	2019-02-49	134	DIBBS
3120-01-050-5055	2018-04-101	4	United States
3120-01-050-5055	2017-03-66	64	DIBBS
MS1410116	2015-03-75	25	United States
3120-01-050-5055	2014-11-309	5	BE
MS1410116	2014-10-281	60	United States
3120-01-050-5055	2014-01-30	1	BR
MS2123216	2013-04-98	1	United States
3120-01-050-5055	2012-05-138	4	United States
3120-01-050-5055	2012-01-31	1	US
MS14101-16	2011-11-313	2	US
MS1410116	2011-07-196	1	US
3120-01-050-5055	2011-06-153	385	DIBBS
3120-01-050-5055	2011-05-129	2	US
MS1410116	2011-03-75	20	United States
HT16V	2010-10-287	14	US
MS2123216	2010-10-287	14	US
MS2123216	2010-04-95	26	US
3120-01-050-5055	2009-05-149	500	US
NRRG16	2008-09-252	2	US
3120-01-050-5055	2008-08-221	109	DIBBS
MS1410116	2008-08-219	2	US
3120-01-050-5055	2008-07-210	50	US
MS1410116	2008-05-128	4	United States
3120-01-050-5055	2008-02-36	3	US
3120-01-050-5055	2007-05-143	158	DIBBS
3120-01-050-5055	2007-01-24	211	DIBBS

Cross Reference | NSN 3120-01-050-5055

Part Number	Cage Code	Manufacturer
03-825-16	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
04A064-16	1W025	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
ADB16V	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
AS14101	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81820	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81820/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
HSB16TL-201	02758	U S BEARINGS
HT16V	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
HT16V(L1)	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
KNDB16-33	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
KR16-CNGB	50632	KAMATICS CORPORATION
MS14101-16	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS14101-16	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21232-16	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NRRG-16	73134	ROLLER BEARING COMPANY OF AMERICA, INC.
SWKN16-400	81376	RBC SOUTHWEST PRODUCTS, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-050-5055

Compare

Related Products | NSN 3120-01-050-5055

3120-01-050-5363, 3120-01-050-5421, 3120-01-050-5422, 3120-01-050-6190, 3120-01-050-6607

Technical Data | NSN 3120-01-050-5055

Characteristic	Specifications
MATERIAL	STEEL COMP 440C OR STEEL COMP XM-13 INNER MEMBER STEEL COMP 630 OUTER RACE MEMBER PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5630 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5629 ASSN STD 2ND MATERIAL RESPONSE INNER MEMBER AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OUTER RACE MEMBER
HARDNESS RATING	55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER
STYLE DESIGNATOR	10A WITH INSERT AND/OR LINER WITH STAKING GROOVE
BORE DIAMETER	0.9995 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM
OUTER MEMBER OUTSIDE DIAMETER	1.7495 INCHES MINIMUM AND 1.7500 INCHES MAXIMUM
OUTER MEMBER WIDTH	0.7920 INCHES MINIMUM AND 0.8020 INCHES MAXIMUM
INNER MEMBER WIDTH	0.9980 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM
LUBRICATION FEATURE	SELF-LUBRICATING LINER RACE LINER
STATIC RADIAL LOAD RATING	82200 POUNDS
SPECIAL FEATURES	OPTIONAL INNER RACE MEMBER MTERIAL PH13-8 HARDENED TO RC 43.0 MIN TO RC 47.0 MAX
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS14101-16

Restrictions/Controls & Freight Information | NSN 3120-01-050-5055

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114850	BEARING/BUSHING O/T BALL/ROLLER I/S
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-050-5055

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
