NSN 3120-01-054-0880 ST4M20207003, ST4M202-07003, 53G9707115
Product Details | SLEEVE BUSHING
3120-01-054-0880 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: ST4M20207003, ST4M202-07003, 53G9707115, 53G970711-5, 3120-01-054-0880, 01-054-0880, 3120010540880, 010540880
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 14 JAN 1978 | 01-054-0880 | 13206 ( BUSHING, SLEEVE ) |

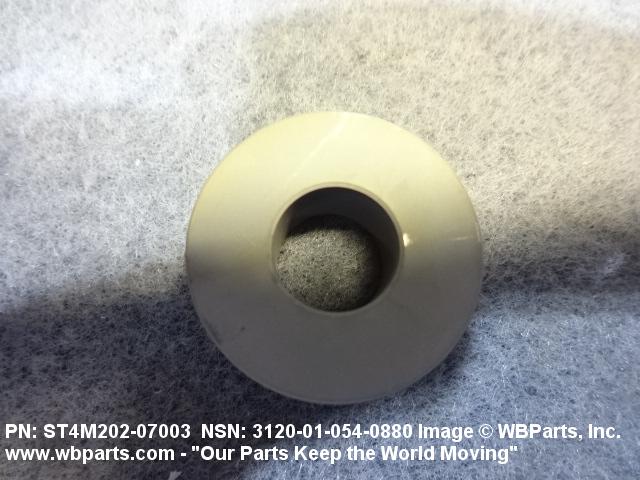

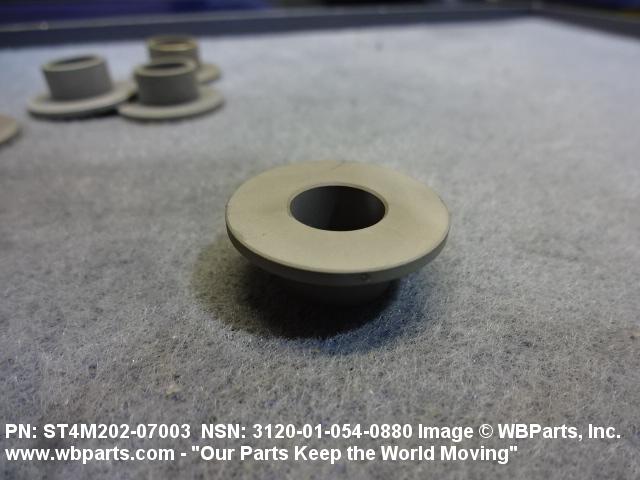

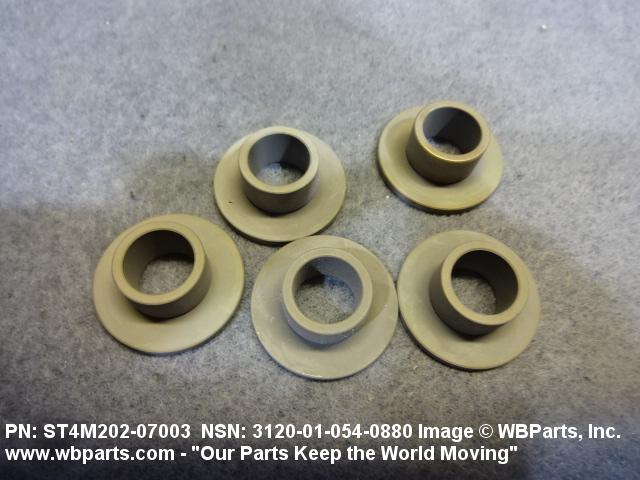

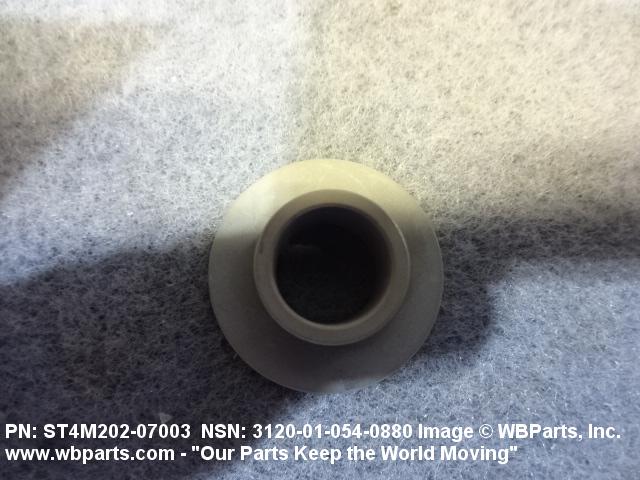

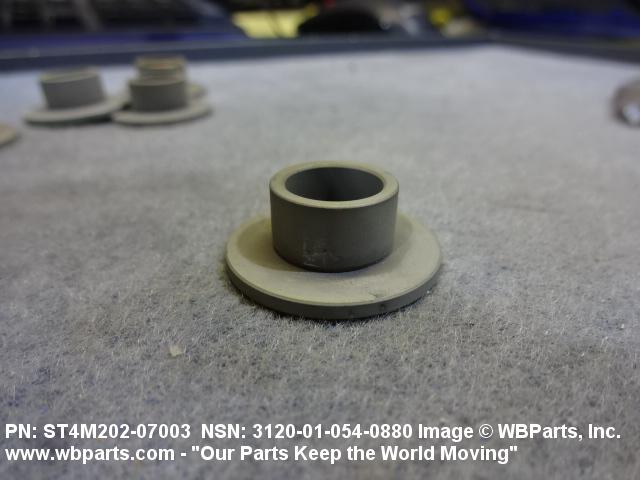

Drawings & Photos | NSN 3120-01-054-0880
Demand History | NSN 3120-01-054-0880
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-054-0880 | 2022-08-222 | 17 | DIBBS |
| 3120-01-054-0880 | 2019-06-168 | 3 | DIBBS |
| 3120-01-054-0880 | 2018-10-303 | 20 | us |
| 3120-01-054-0880 | 2018-10-284 | 5 | United States |
| 3120-01-054-0880 | 2018-07-182 | 6 | DIBBS |
| 3120-01-054-0880 | 2018-06-163 | 5 | DIBBS |
| 3120-01-054-0880 | 2018-06-155 | 5 | DIBBS |
| 3120-01-054-0880 | 2018-03-78 | 3 | DIBBS |
| 3120-01-054-0880 | 2018-03-60 | 1 | DIBBS |
| 3120-01-054-0880 | 2017-10-296 | 4 | DIBBS |
| 3120-01-054-0880 | 2017-10-276 | 3 | DIBBS |
| 3120-01-054-0880 | 2017-09-268 | 3 | DIBBS |
| 3120-01-054-0880 | 2017-08-214 | 3 | DIBBS |
| 3120-01-054-0880 | 2016-11-312 | 6 | DIBBS |
| 3120-01-054-0880 | 2016-08-222 | 7 | DIBBS |
| 3120-01-054-0880 | 2015-12-358 | 7 | DIBBS |
| 3120-01-054-0880 | 2015-12-350 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-054-0880
Technical Data | NSN 3120-01-054-0880
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

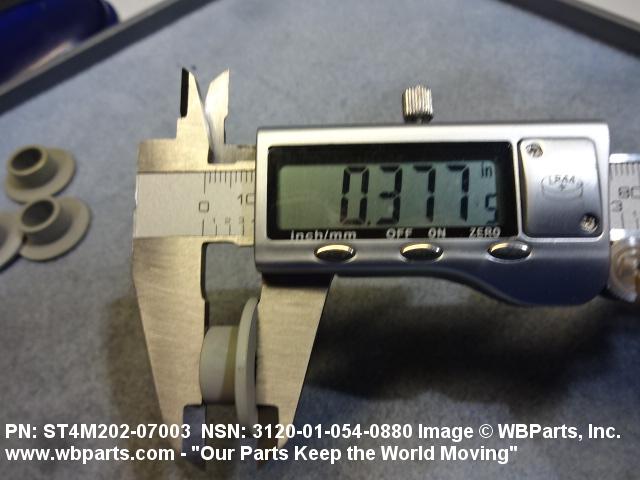

| OVERALL LENGTH | 0.3780 INCHES NOMINAL |

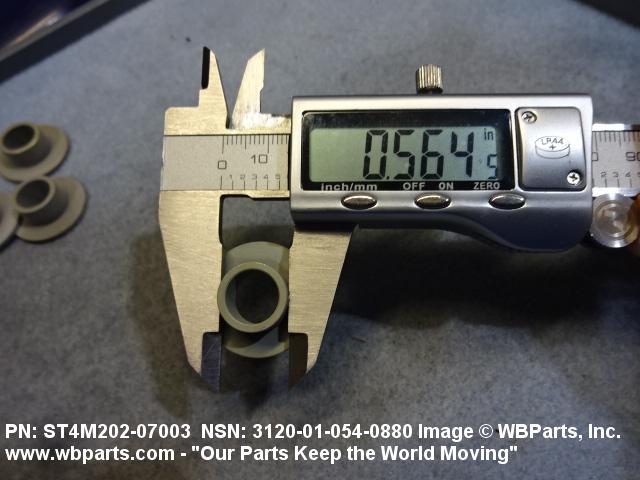

| BODY OUTSIDE DIAMETER | 0.5641 INCHES MINIMUM AND 0.5648 INCHES MAXIMUM |

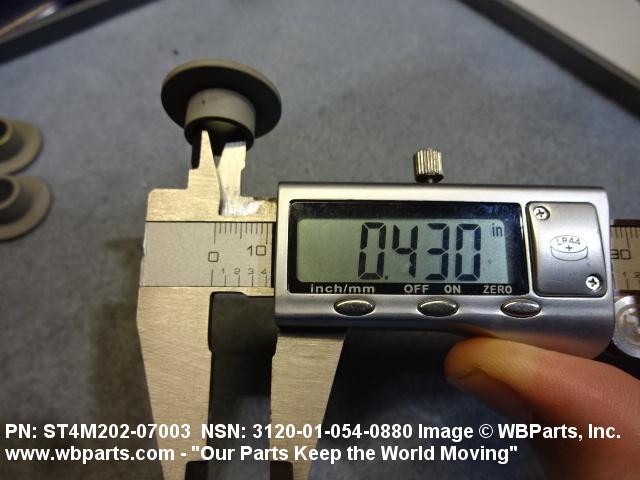

| BODY INSIDE DIAMETER | 0.4305 INCHES MINIMUM AND 0.4325 INCHES MAXIMUM |

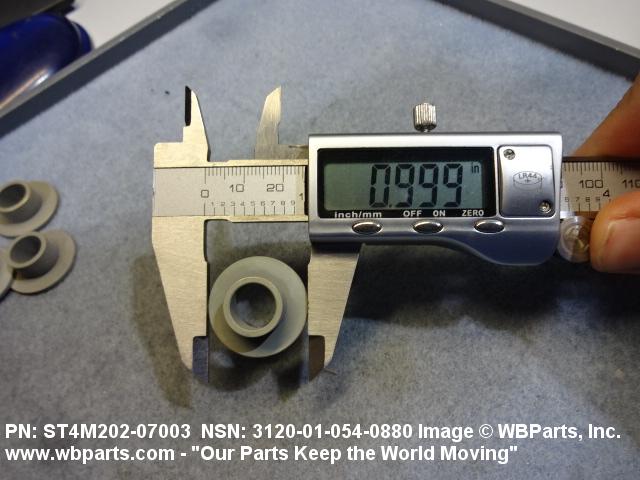

| FLANGE OUTSIDE DIAMETER | 0.9900 INCHES MINIMUM AND 1.0100 INCHES MAXIMUM |

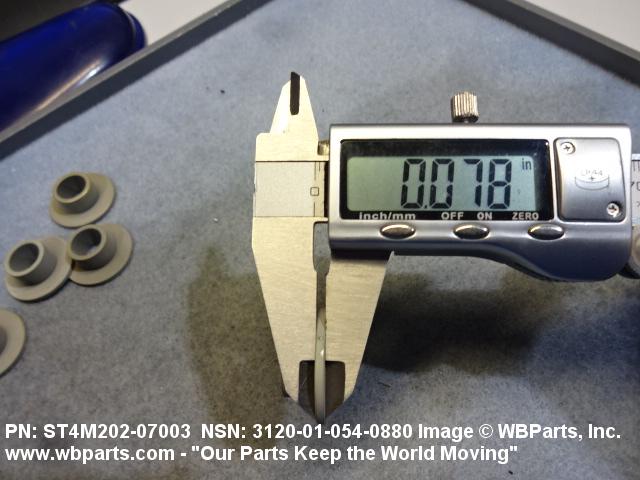

| FLANGE WIDTH | 0.0760 INCHES MINIMUM AND 0.0780 INCHES MAXIMUM |
