NSN 3120-01-064-6301 MS141015, MS14101-5, MS141015A

Product Details | SELF-ALIGNING PLAIN BEARING

3120-01-064-6301 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.

Part Alternates: MS141015, MS14101-5, MS141015A, MS14101-5A, MS212325, MS21232-5, AS14101, AS81820 , AS81820/1 , AS818201, SWKN5400, SWKN-5-400, HT5VL1, KNDB533, KNDB5-33, KR5CNGB, KR5-CNGB, HT5V, 0382505, 03-825-05, 04A0645, 04A064-5, 10107708 , 3120-01-064-6301, 01-064-6301, 3120010646301, 010646301

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	28 AUG 1978	01-064-6301	13208 ( BEARING, PLAIN, SELF-ALIGNING )

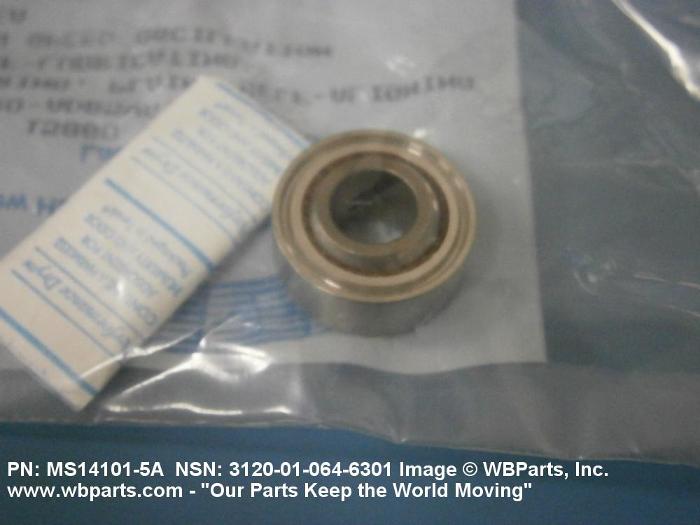

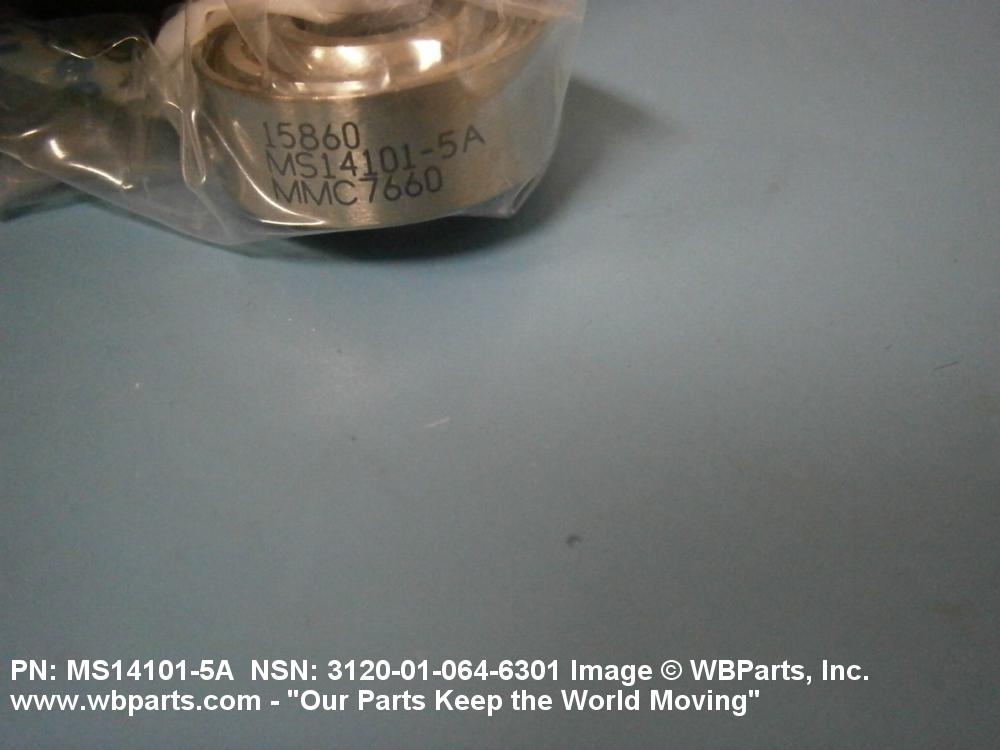

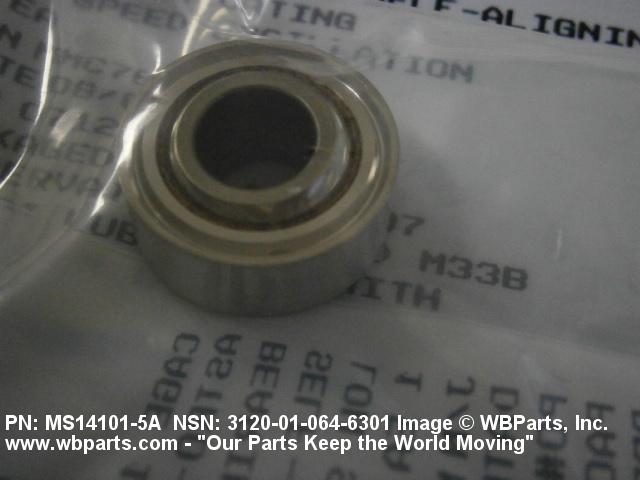

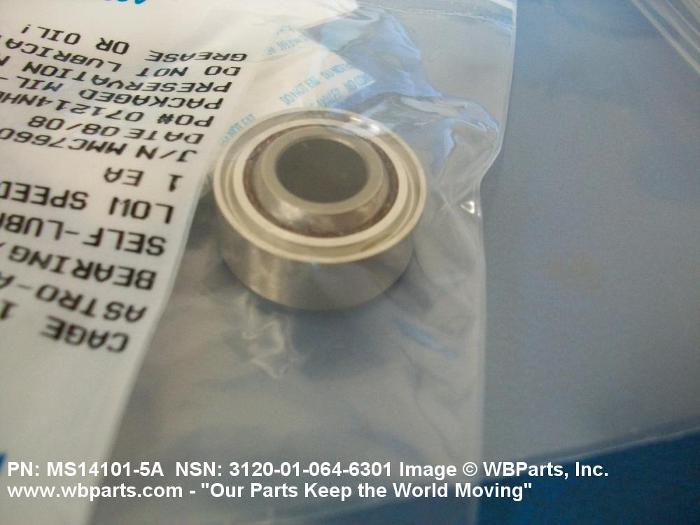

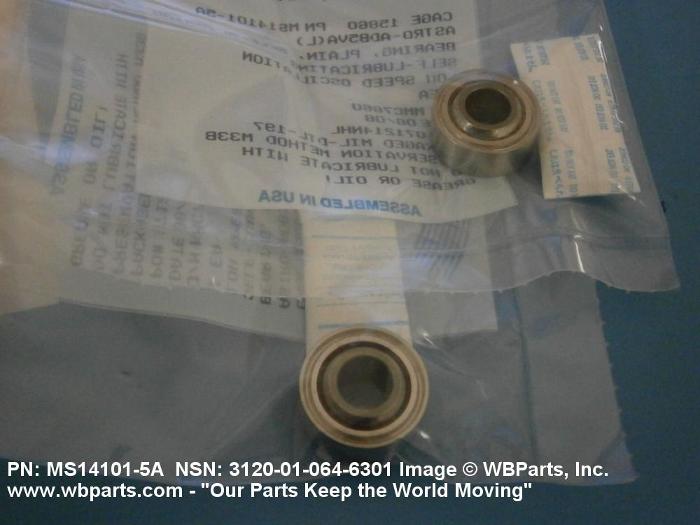

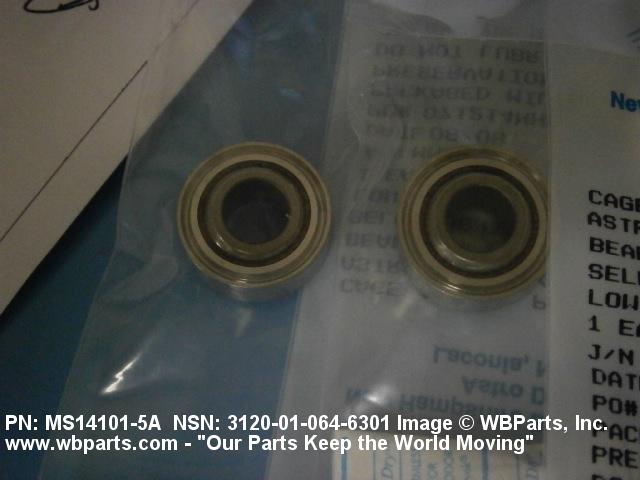

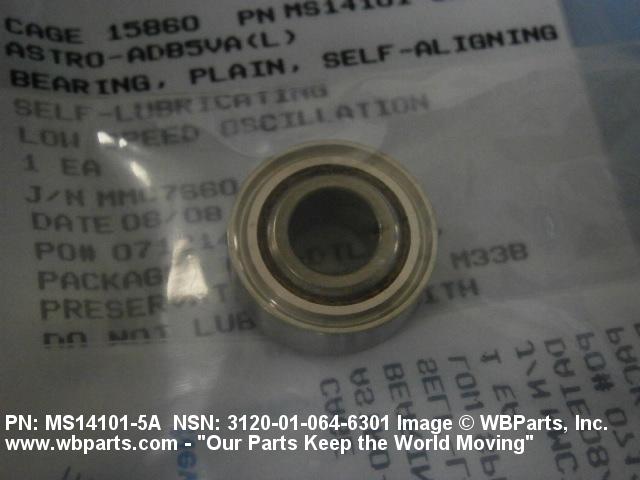

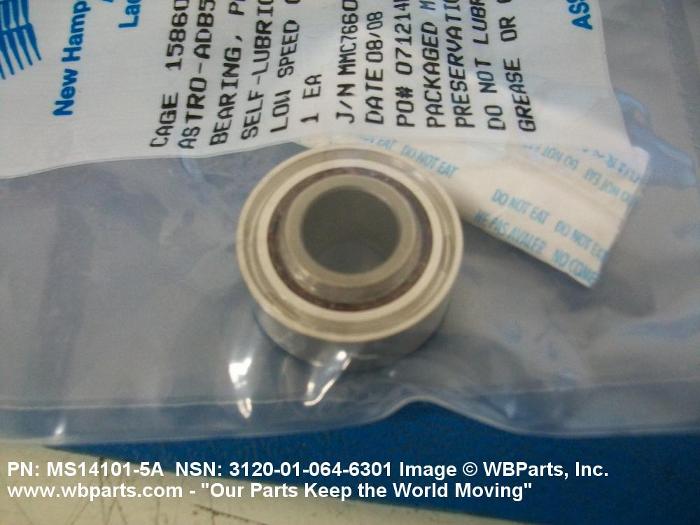

Drawings & Photos | NSN 3120-01-064-6301

Part Number	Request Date	QTY	Origin
3120-01-064-6301	2025-10-304	10	US
MS141015	2025-10-286	4	us
MS141015A	2025-04-97	500	Czech Republic
MS141015A	2025-04-97	1000	Czech Republic
MS141015A	2025-04-97	1500	Czech Republic
MS141015A	2025-02-57	500	Czech Republic
MS141015A	2025-02-57	1000	Czech Republic
MS141015A	2025-02-57	2500	Czech Republic
MS141015A	2024-10-288	165	Czech Republic
MS141015	2024-06-178	10	China
3120-01-064-6301	2024-04-93	6	United States
3120-01-064-6301	2024-04-93	6	United States
MS141015A	2023-10-276	20	United States
MS141015A	2022-02-53	5	US
MS212325	2021-12-349	16	United States
MS212325	2020-04-100	8	US
MS141015A	2018-10-292	100	United States
MS141015A	2018-10-289	25	United States
MS141015A	2018-01-26	2	United States
3120-01-064-6301	2016-10-277	1	DIBBS-RFPs
MS141015A	2016-04-111	10	Canada
MS141015	2016-03-70	2	United States
MS141015A	2016-02-36	52	US
MS141015A	2015-08-222	4	US
MS141015A	2014-08-219	4	US
MS141015A	2014-07-189	45	United States
MS141015A	2014-06-181	40	United States
MS141015	2013-08-239	50	TR
MS141015A	2013-01-29	1	US
MS212325	2012-11-326	10	United States
MS141015	2012-09-265	90	US
3120-01-064-6301	2012-06-174	20	SG
3120-01-064-6301	2012-02-41	140	US
MS212325	2012-02-38	129	US
MS212325	2011-12-347	57	US
MS141015A	2011-11-327	2	United States
MS212325	2011-11-315	14	United States
MS141015A	2011-11-314	2	United States
3120-01-064-6301	2011-10-297	20	US
3120-01-064-6301	2011-10-292	79	United States
MS141015A	2011-10-278	2	us
3120-01-064-6301	2011-09-266	8	US
MS141015A	2011-09-250	4	United States
MS141015	2011-07-196	1	US
MS141015A	2011-06-173	25	Brazil
3120-01-064-6301	2011-05-139	7	US
MS141015	2011-04-112	2	United States
MS141015	2011-03-66	2	US
MS212325	2011-02-33	35	US
MS141015A	2011-01-03	10	US
MS141015A	2011-01-03	25	US
MS141015A	2011-01-03	50	US
MS141015A	2011-01-03	100	US
3120-01-064-6301	2010-12-342	200	United States
3120-01-064-6301	2010-12-340	100	United States
MS212325	2010-09-263	30	US
MS212325	2010-09-245	10	US
3120-01-064-6301	2010-07-195	589	DIBBS
3120-01-064-6301	2010-05-134	1389	DIBBS
3120-01-064-6301	2010-01-20	864	DIBBS
3120-01-064-6301	2010-01-18	10	Netherlands
3120-01-064-6301	2009-10-278	433	DIBBS
3120-01-064-6301	2009-09-252	1	United States
MS141015A	2009-09-244	20	United States
3120-01-064-6301	2009-08-237	362	DIBBS
3120-01-064-6301	2009-08-217	230	DIBBS
3120-01-064-6301	2009-07-187	105	DIBBS
MS141015A	2008-01-10	20	United States
3120-01-064-6301	2007-10-289	30	US
3120-01-064-6301	2007-04-99	13	DIBBS
3120-01-064-6301	2007-04-93	169	DIBBS
3120-01-064-6301	2007-01-10	10	Canada

Cross Reference | NSN 3120-01-064-6301

Part Number	Cage Code	Manufacturer
03-825-05	09455	RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS
04A064-5	1W025	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
AS14101	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81820	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS81820/1	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
HT5V	50294	NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB
HT5V(L1)	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
KNDB5-33	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
KR5-CNGB	50632	KAMATICS CORPORATION
MS14101-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS14101-5A	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS14101-5A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21232-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SWKN-5-400	81376	RBC SOUTHWEST PRODUCTS, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-064-6301

Compare

Related Products | NSN 3120-01-064-6301

3120-01-064-6699, 3120-01-064-7563, 3120-01-064-7564, 3120-01-064-7586, 3120-01-064-7691

Technical Data | NSN 3120-01-064-6301

Characteristic	Specifications
MATERIAL	STEEL COMP 440C INNER MEMBER STEEL COMP 630 OUTER RING
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5630 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OUTER RING
STYLE DESIGNATOR	10A WITH INSERT AND/OR LINER WITH STAKING GROOVE
BORE DIAMETER	0.3120 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM
OUTER MEMBER OUTSIDE DIAMETER	0.7495 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM
OUTER MEMBER WIDTH	0.2760 INCHES MINIMUM AND 0.2860 INCHES MAXIMUM
INNER MEMBER WIDTH	0.3730 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM
STATIC RADIAL LOAD RATING	8750 POUNDS
SPECIAL FEATURES	0.6620 IN. DIA CENTER OF STAKING GROOVE

Restrictions/Controls & Freight Information | NSN 3120-01-064-6301

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114850	BEARING/BUSHING O/T BALL/ROLLER I/S
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3120-01-064-6301

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
