NSN 3120-01-084-2543 SB5077101, SB5077-101, SBSH24ATC44YA2252

Product Details | SELF-ALIGNING PLAIN BEARING

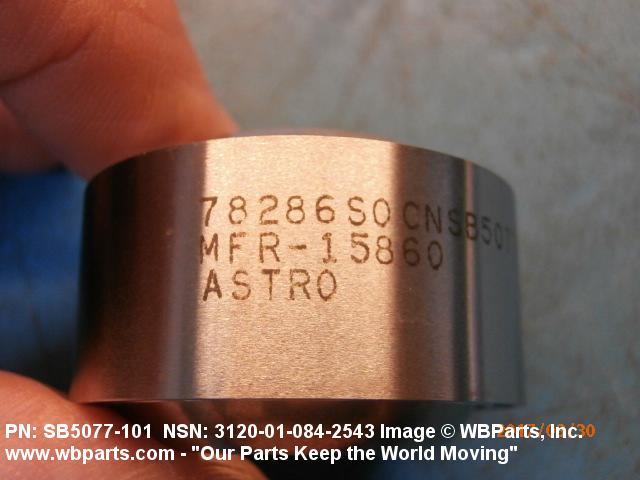

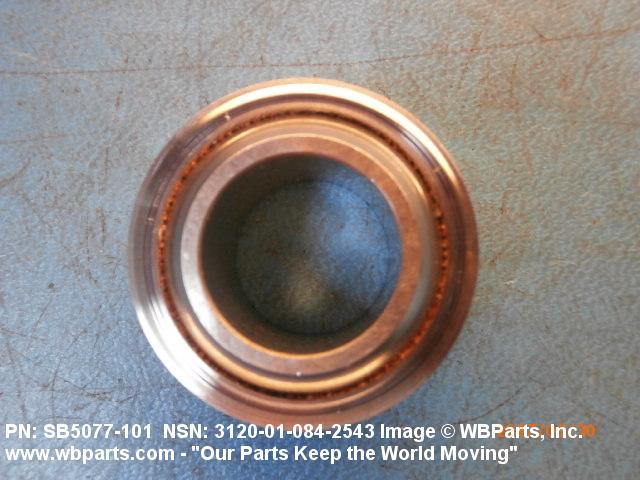

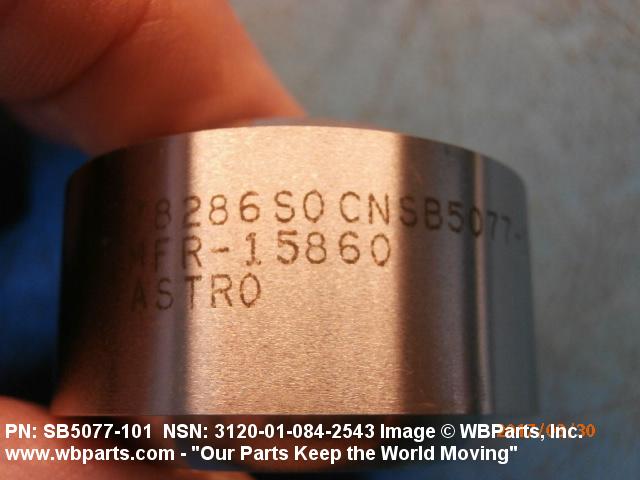

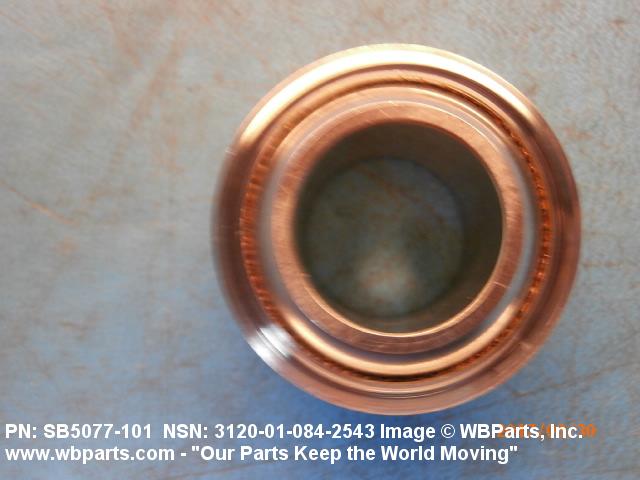

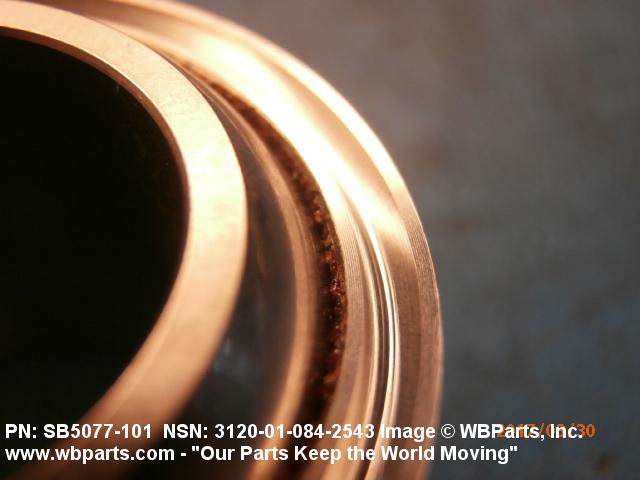

3120-01-084-2543 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.

Part Alternates: SB5077101, SB5077-101, SBSH24ATC44YA2252, SBSH24ATC44ZA2252, KWDB127, KWDB12-7, 3120-01-084-2543, 01-084-2543, 3120010842543, 010842543

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	13 OCT 1979	01-084-2543	13208 ( BEARING, PLAIN, SELF-ALIGNING )

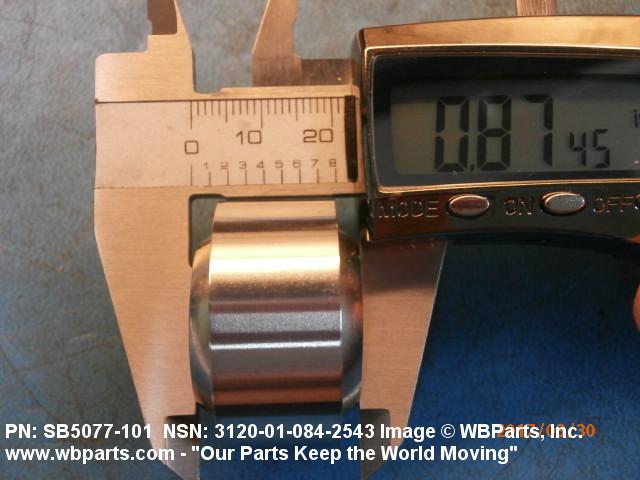

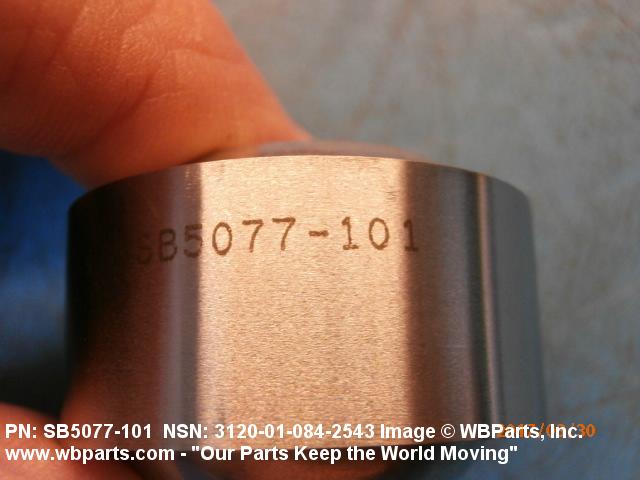

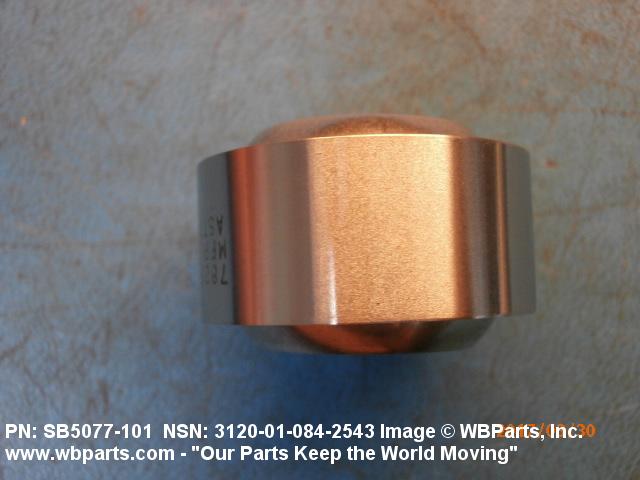

Drawings & Photos | NSN 3120-01-084-2543

Part Number	Request Date	QTY	Origin
SB5077-101	2025-10-293	545	DIBBS
SB5077-101	2025-06-175	3154	DIBBS
SB5077-101	2025-04-113	322	DIBBS
SB5077-101	2025-03-65	2832	DIBBS
3120-01-084-2543	2025-01-30	1	Australia
SB5077-101	2025-01-21	1174	DIBBS
SB5077-101	2024-10-298	286	DIBBS
3120-01-084-2543	2024-09-250	134	US
SB5077101	2024-08-235	40	US
SB5077101	2024-08-235	72	US
SB5077-101	2024-08-228	484	DIBBS
3120-01-084-2543	2024-05-152	17	Mexico
SB5077-101	2024-03-84	888	DIBBS
SB5077-101	2023-12-361	248	DIBBS
3120-01-084-2543	2023-09-269	300	United States
SB5077-101	2023-08-232	730	DIBBS
SB5077101	2023-08-228	6	United States
SB5077-101	2023-07-183	730	DIBBS
3120-01-084-2543	2023-06-172	50	Turkey
SB5077-101	2023-04-92	453	DIBBS
3120-01-084-2543	2023-03-86	10	US
SB5077-101	2022-12-345	400	DIBBS
SB5077-101	2022-08-227	715	DIBBS
SB5077-101	2022-05-151	396	DIBBS
SB5077-101	2022-02-38	214	DIBBS
SB5077-101	2022-01-04	47	DIBBS
SB5077-101	2022-01-04	525	DIBBS
SB5077-101	2021-08-229	391	DIBBS
3120-01-084-2543	2021-06-164	6	US
3120-01-084-2543	2021-06-161	180	US
SB5077-101	2021-04-115	649	DIBBS
3120-01-084-2543	2020-03-78	30	US
3120-01-084-2543	2020-02-44	30	Taiwan
3120-01-084-2543	2018-01-22	1	DIBBS-RFPs
3120-01-084-2543	2017-12-362	690	DIBBS
3120-01-084-2543	2017-12-356	1	DIBBS-RFPs
3120-01-084-2543	2017-10-297	471	DIBBS
KWDB127	2017-09-269	1	US
SB5077101	2017-09-269	1	US
SBSH24ATC44YA2252	2017-09-269	1	US
SBSH24ATC44ZA2252	2017-09-269	1	US
3120-01-084-2543	2017-09-263	2	Taiwan
3120-01-084-2543	2017-09-256	10	TW
3120-01-084-2543	2017-07-212	379	DIBBS
3120-01-084-2543	2017-05-136	749	DIBBS
3120-01-084-2543	2017-03-87	366	DIBBS
SB5077101	2017-03-73	4	Canada
SB5077101	2017-03-73	4	Canada
3120-01-084-2543	2016-12-337	30	US
3120-01-084-2543	2013-12-360	445	DIBBS
3120-01-084-2543	2013-03-65	20	US
3120-01-084-2543	2012-09-253	602	DIBBS
3120-01-084-2543	2012-06-162	392	DIBBS
3120-01-084-2543	2012-04-103	465	DIBBS
3120-01-084-2543	2012-02-46	277	DIBBS
SB5077101	2012-01-17	5	US
3120-01-084-2543	2011-12-335	50	US
SB5077101	2011-11-334	10	US
SB5077101	2011-10-283	32	US
3120-01-084-2543	2011-09-269	40	US
3120-01-084-2543	2011-08-214	464	DIBBS
3120-01-084-2543	2009-11-306	1354	DIBBS
3120-01-084-2543	2009-08-237	583	DIBBS
3120-01-084-2543	2009-06-160	607	DIBBS
3120-01-084-2543	2009-03-76	146	DIBBS
3120-01-084-2543	2009-02-35	312	DIBBS
3120-01-084-2543	2009-01-22	150	United States
3120-01-084-2543	2008-05-135	725	DIBBS
3120-01-084-2543	2008-05-128	20	Taiwan
SB5077101	2007-10-278	21	JP
SB5077101	2007-07-191	3	US
KWDB127	2007-02-58	2	United States
SB5077101	2006-09-268	2	United States
SB5077101	2006-09-268	2	United States

Cross Reference | NSN 3120-01-084-2543

Part Number	Cage Code	Manufacturer
KWDB12-7	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
SB5077-101	15860	NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION
SB5077-101	78286	SIKORSKY AIRCRAFT CORPORATION
SB5077-101	97613	DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING
SBSH24ATC44YA2252	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
SBSH24ATC44ZA2252	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
SBSH24ATC44ZA2252	3NPS1	RBC AIRCRAFT PRODUCTS, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3120-01-084-2543

Compare

Related Products | NSN 3120-01-084-2543

3120-01-084-2544, 3120-01-084-3460, 3120-01-084-3863, 3120-01-084-3864, 3120-01-084-4360

Technical Data | NSN 3120-01-084-2543

Characteristic	Specifications
MATERIAL	STEEL INNER MEMBER STEEL OUTER RACE MEMBER PLASTIC TETRAFLUOROETHYLENE RACE INSERT
MATERIAL DOCUMENT AND CLASSIFICATION	78286SB5077-101 MFR REF SINGLE MATERIAL RESPONSE INNER MEMBER 78286SB5077-101 MFR REF SINGLE MATERIAL RESPONSE OUTER RACE MEMBER 78286SB5077-101 MFR REF SINGLE MATERIAL RESPONSE RACE INSERT
HARDNESS RATING	55.0 ROCKWELL C MINIMUM AND 228.0 ROCKWELL C MAXIMUM OVERALL
STYLE DESIGNATOR	10A WITH INSERT AND/OR LINER WITH STAKING GROOVE

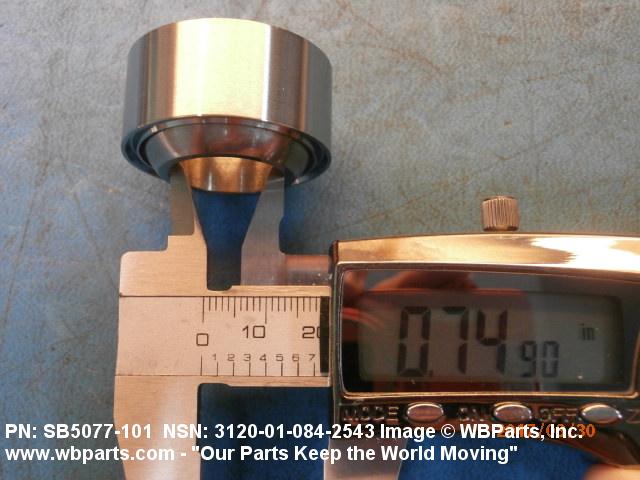

BORE DIAMETER	0.7495 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM

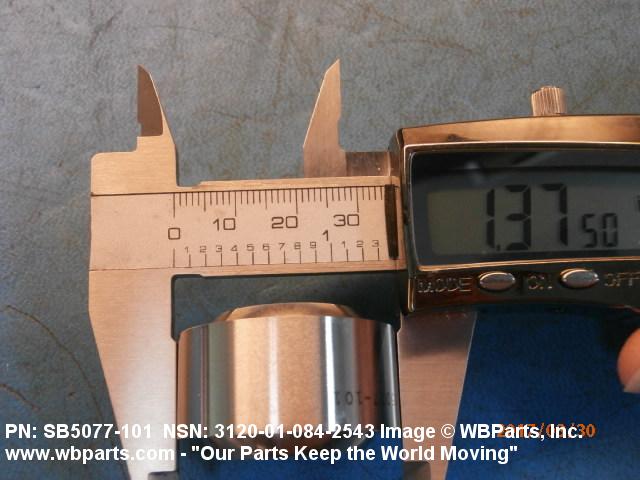

OUTER MEMBER OUTSIDE DIAMETER	1.3745 INCHES MINIMUM AND 1.3750 INCHES MAXIMUM

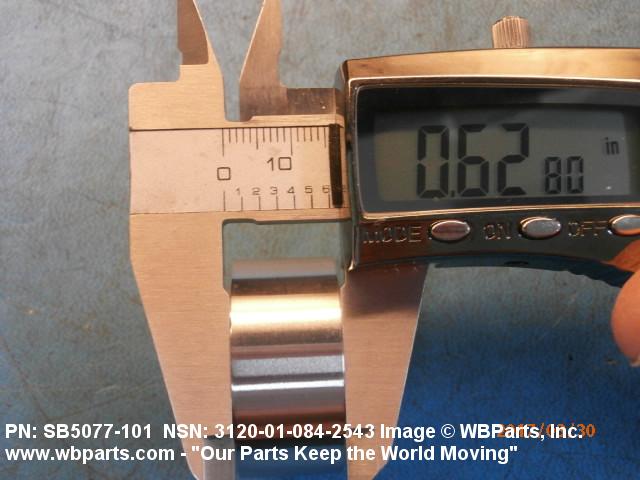

OUTER MEMBER WIDTH	0.6250 INCHES MINIMUM AND 0.6350 INCHES MAXIMUM
