NSN 3120-01-085-1250 6911397502, 69-11397-502, 01-085-1250
Product Details | SLEEVE BEARING HALF
3120-01-085-1250 A half of a two-piece split type BEARING, SLEEVE.
Part Alternates: 6911397502, 69-11397-502, 3120-01-085-1250, 01-085-1250, 3120010851250, 010851250
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 31 OCT 1979 | 01-085-1250 | 22210 ( BEARING HALF, SLEEVE ) |

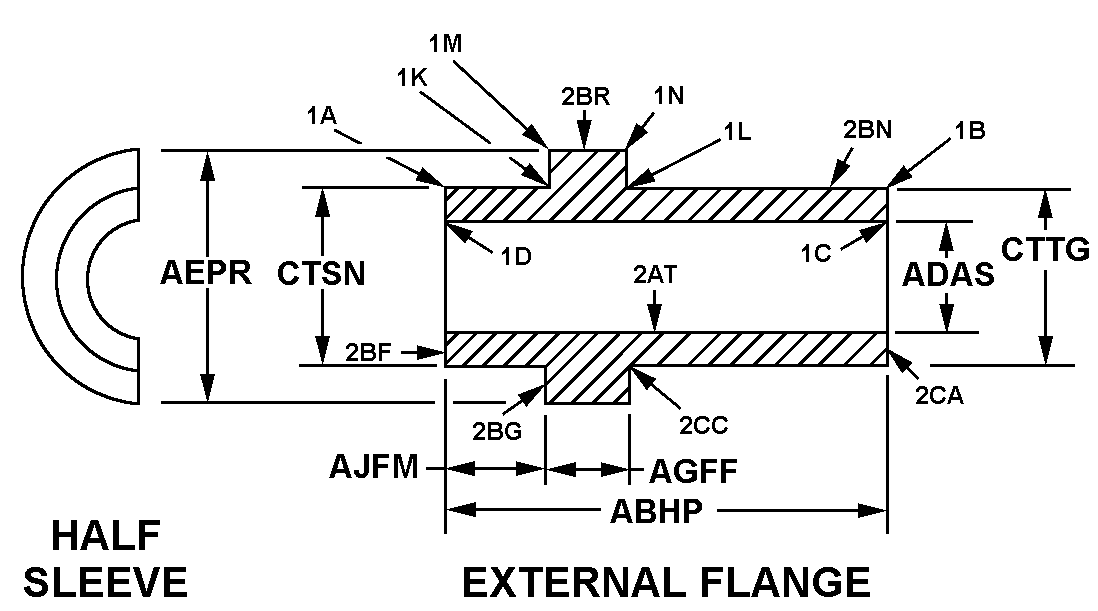

Drawings & Photos | NSN 3120-01-085-1250
Demand History | NSN 3120-01-085-1250
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-085-1250 | 2020-03-79 | 24 | DIBBS |
| 3120-01-085-1250 | 2016-02-55 | 19 | DIBBS |
| 3120-01-085-1250 | 2015-07-200 | 1 | DIBBS |
| 3120-01-085-1250 | 2015-04-116 | 2 | DIBBS |
| 3120-01-085-1250 | 2014-03-72 | 5 | DIBBS |
| 3120-01-085-1250 | 2014-03-64 | 5 | DIBBS |
| 3120-01-085-1250 | 2012-06-161 | 7 | DIBBS |
| 3120-01-085-1250 | 2011-05-140 | 6 | DIBBS |
| 3120-01-085-1250 | 2010-05-140 | 4 | DIBBS |
| 3120-01-085-1250 | 2009-11-307 | 5 | DIBBS |
| 3120-01-085-1250 | 2009-05-150 | 4 | DIBBS |
| 3120-01-085-1250 | 2009-02-41 | 4 | DIBBS |
| 3120-01-085-1250 | 2008-11-324 | 5 | DIBBS |
Cross Reference | NSN 3120-01-085-1250
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 69-11397-502 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-085-1250
Related Products | NSN 3120-01-085-1250
Technical Data | NSN 3120-01-085-1250
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 21D HALF SLEEVE |
| OVERALL LENGTH | 1.9900 INCHES MINIMUM AND 2.0100 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 8.6840 INCHES MINIMUM AND 8.6886 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 8.2540 INCHES MINIMUM AND 8.2560 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 9.1200 INCHES MINIMUM AND 9.1400 INCHES MAXIMUM |
| FLANGE WIDTH | 0.2926 INCHES MINIMUM AND 0.2970 INCHES MAXIMUM |
| END TO FLANGE DISTANCE | 0.8500 INCHES NOMINAL |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 2 HOLE |
| HOLE SPACING ANGLE | 125.0 DEGREES NOMINAL |
| LUBRICANT ACCOMMODATION STYLE | 69 GROOVED CIRCULAR |
| MANUFACTURERS CODE | 81205 |
| DESIGN CONTROL REFERENCE | 69-11397-502 |
Restrictions/Controls & Freight Information | NSN 3120-01-085-1250
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-085-1250
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
