NSN 3120-01-099-8009 70209-06054-102, 01-099-8009, 7020906054102
Product Details | SLEEVE BUSHING
3120-01-099-8009 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 70209-06054-102, 3120-01-099-8009, 01-099-8009, 3120010998009, 7020906054102, 010998009
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 23 AUG 1980 | 01-099-8009 | 13206 ( BUSHING, SLEEVE ) |

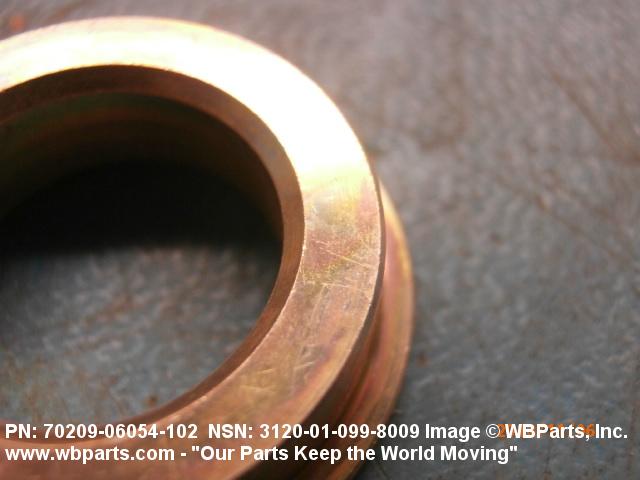

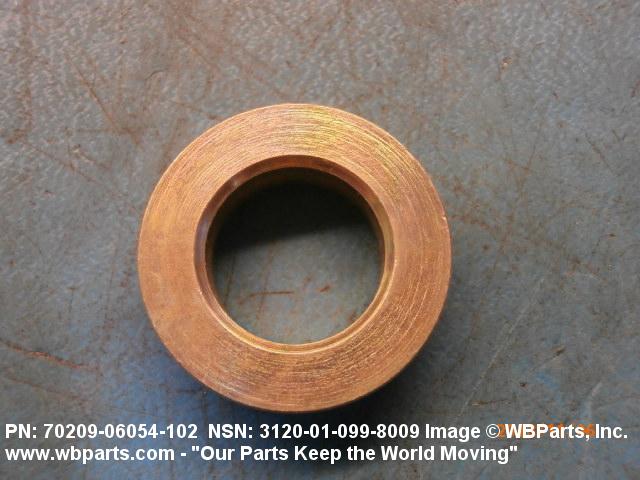

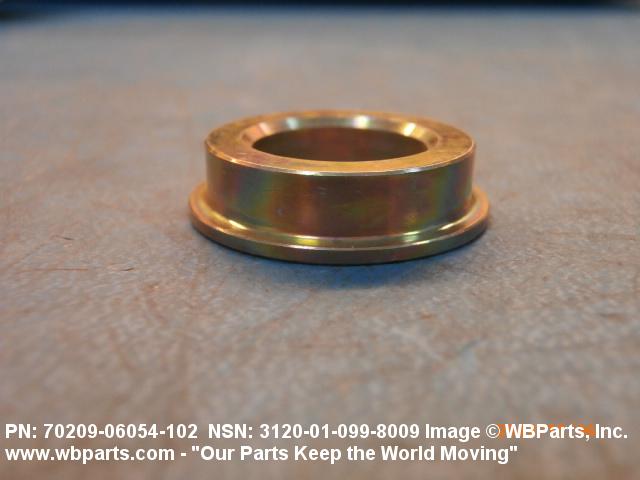

Drawings & Photos | NSN 3120-01-099-8009
Demand History | NSN 3120-01-099-8009
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-099-8009 | 2025-04-91 | 498 | DIBBS |
| 3120-01-099-8009 | 2024-09-269 | 498 | DIBBS |
| 3120-01-099-8009 | 2024-09-248 | 247 | DIBBS |
| 7020-90-605-4102 | 2023-04-97 | 2 | United States |
| 3120-01-099-8009 | 2019-01-29 | 1 | DIBBS-RFPs |
| 7020-90-605-4102 | 2018-10-304 | 8 | United States |
| 7020-90-605-4102 | 2018-08-225 | 2 | United States |
| 7020-90-605-4102 | 2017-03-90 | 4 | Canada |
| 3120-01-099-8009 | 2010-11-320 | 1 | MX |
Cross Reference | NSN 3120-01-099-8009
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-099-8009
Related Products | NSN 3120-01-099-8009
Technical Data | NSN 3120-01-099-8009
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4340 OVERALL |
| HARDNESS RATING | 34.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM OVERALL |
| SURFACE TREATMENT | PAINT AND CADMIUM AND CHROMATE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

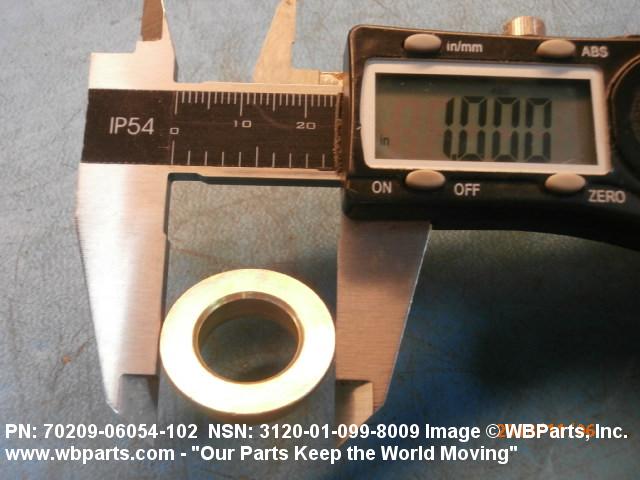

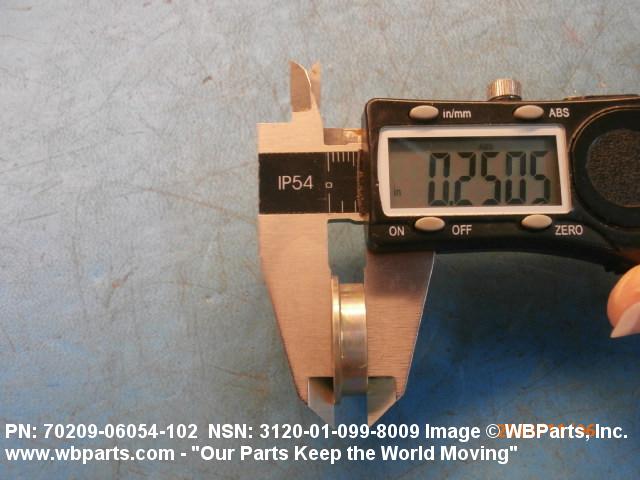

| OVERALL LENGTH | 0.2500 INCHES NOMINAL |

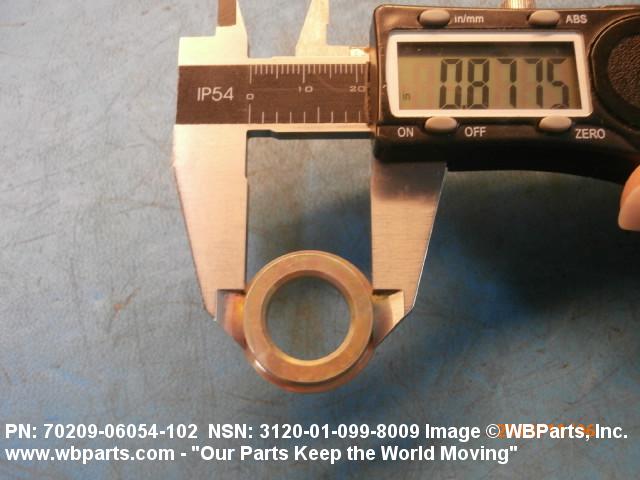

| BODY OUTSIDE DIAMETER | 0.8775 INCHES MINIMUM AND 0.8780 INCHES MAXIMUM |

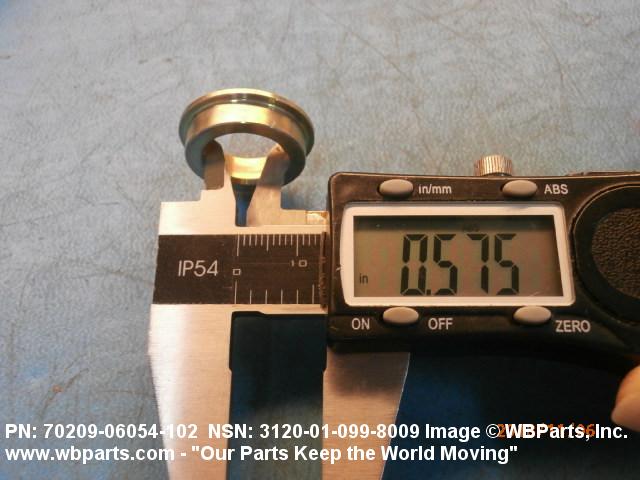

| BODY INSIDE DIAMETER | 0.5773 INCHES MINIMUM AND 0.5783 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 1.0000 INCHES NOMINAL |

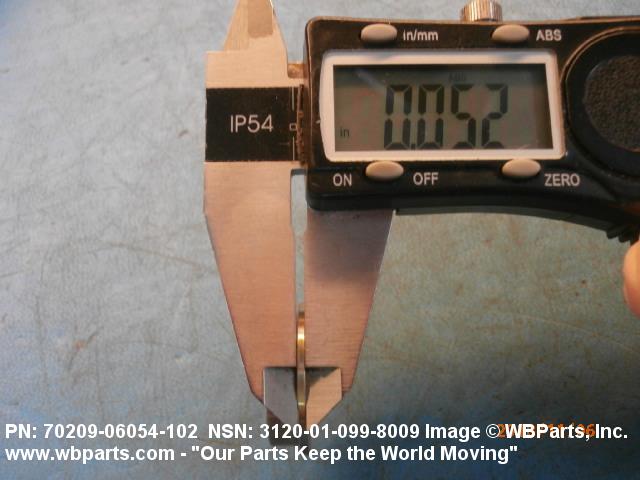

| FLANGE WIDTH | 0.0500 INCHES MINIMUM AND 0.0550 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER CHAMFERED INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER SQUARE LEFT FLANGE BODY CORNER |
