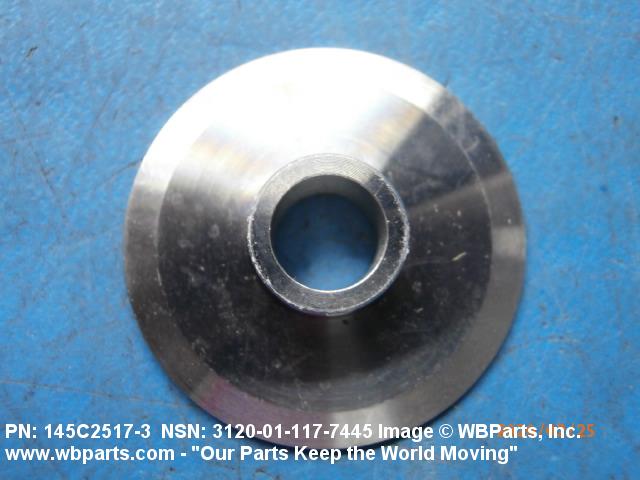

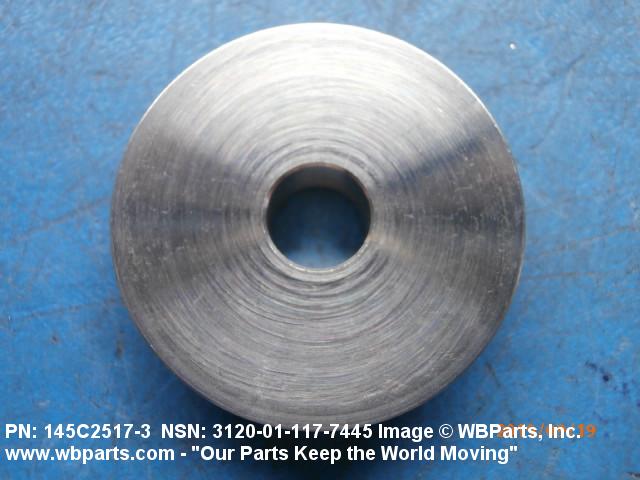

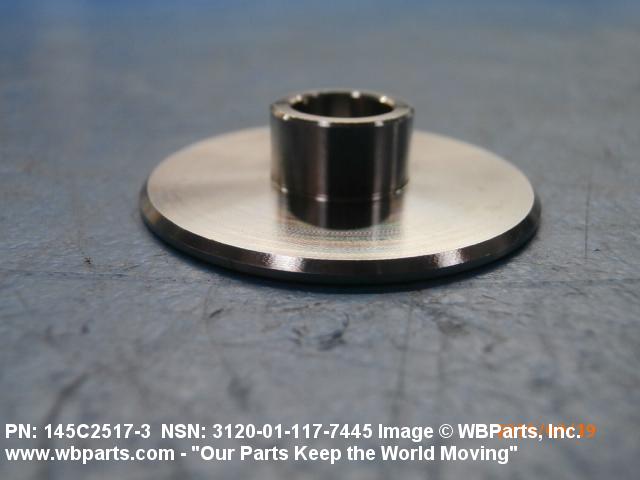

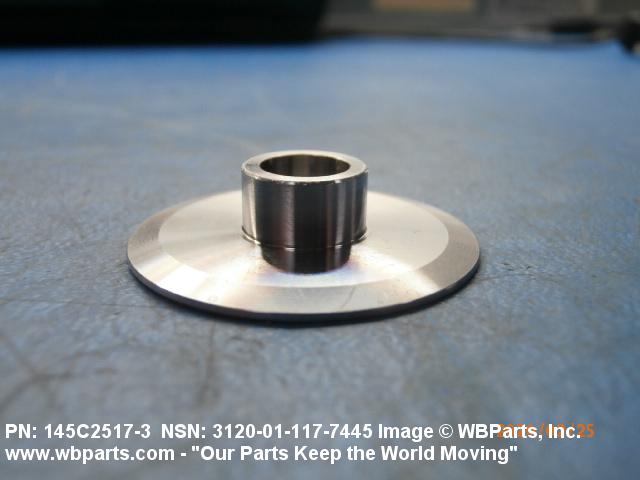

Product Details | SLEEVE BUSHING
3120-01-117-7445 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 145C25173, 145C2517-3, 3120-01-117-7445, 01-117-7445, 3120011177445, 011177445
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 21 AUG 1981 | 01-117-7445 | 13206 ( BUSHING, SLEEVE ) |

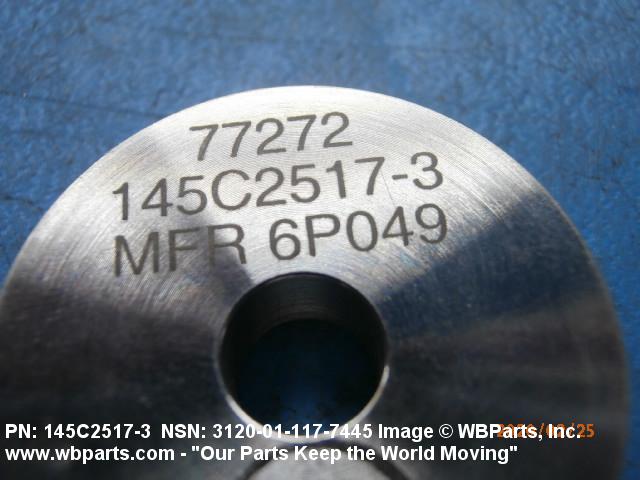

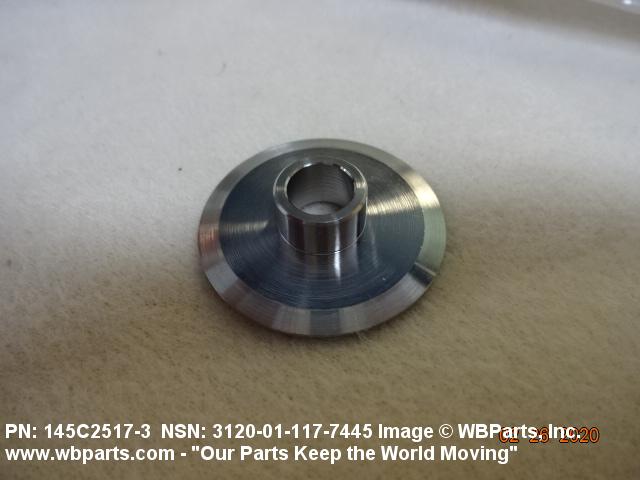

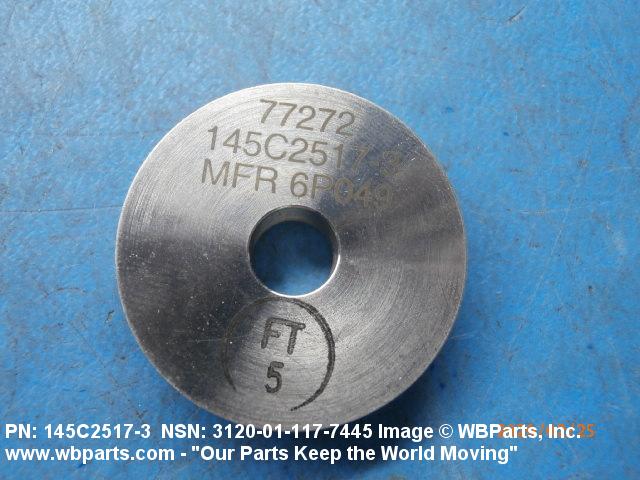

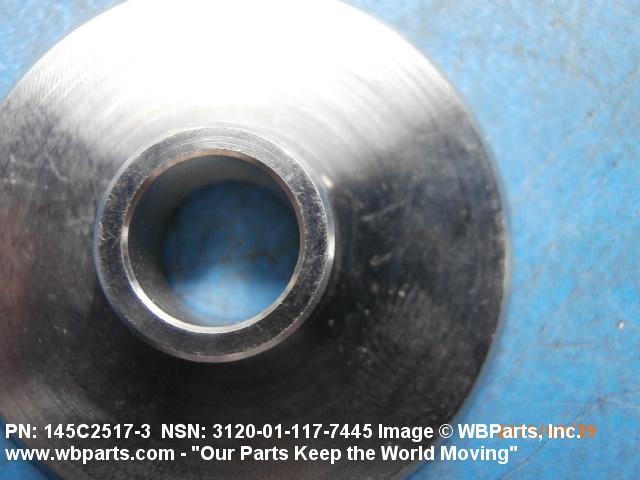

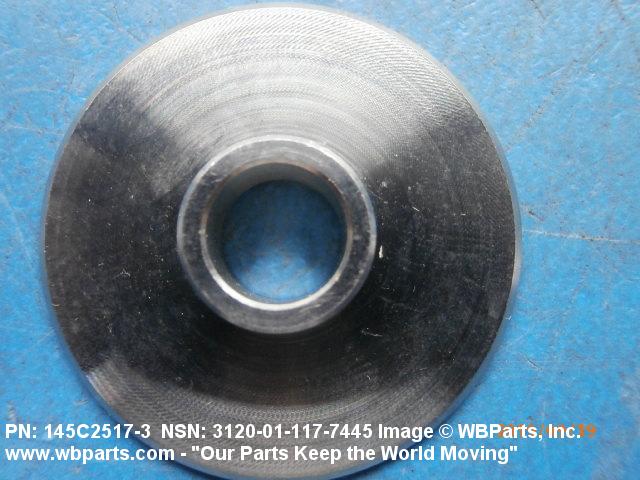

Drawings & Photos | NSN 3120-01-117-7445
Demand History | NSN 3120-01-117-7445
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 145C25173 | 2025-08-232 | 3 | US |
| 145C25173 | 2025-08-231 | 3 | US |
| 3120-01-117-7445 | 2025-06-156 | 2 | us |
| 145C25173 | 2024-11-310 | 1 | United States |
| 3120-01-117-7445 | 2022-09-251 | 4 | US |
| 145C25173 | 2021-08-228 | 12 | United States |
| 3120-01-117-7445 | 2021-04-113 | 6 | US |
| 3120-01-117-7445 | 2020-09-254 | 1 | US |
| 145C25173 | 2020-09-254 | 2 | United States |
| 145C25173 | 2020-06-168 | 2 | United States |
| 145C25173 | 2020-04-121 | 2 | United States |
| 145C25173 | 2020-04-120 | 2 | United States |
| 145C25173 | 2020-02-50 | 2 | United States |
| 145C25173 | 2020-02-48 | 2 | United States |
| 145C25173 | 2020-02-44 | 2 | United States |
| 145C25173 | 2019-10-301 | 21 | United States |
| 145C25173 | 2019-09-249 | 1 | United States |
| 145C25173 | 2019-09-248 | 1 | United States |
| 3120-01-117-7445 | 2017-07-186 | 316 | DIBBS |
| 3120-01-117-7445 | 2015-06-174 | 285 | DIBBS |
| 3120-01-117-7445 | 2011-09-250 | 125 | DIBBS |
| 3120-01-117-7445 | 2010-07-209 | 452 | DIBBS |
| 3120-01-117-7445 | 2010-05-139 | 344 | DIBBS |
| 3120-01-117-7445 | 2010-04-116 | 187 | DIBBS |
| 3120-01-117-7445 | 2010-02-36 | 70 | DIBBS |
| 3120-01-117-7445 | 2010-01-26 | 12 | DIBBS |
| 3120-01-117-7445 | 2009-11-316 | 38 | DIBBS |
| 3120-01-117-7445 | 2009-09-268 | 16 | DIBBS |
Cross Reference | NSN 3120-01-117-7445
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 145C2517-3 | 77272 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-117-7445
Related Products | NSN 3120-01-117-7445
Technical Data | NSN 3120-01-117-7445
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5659 15-5PH MIL STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

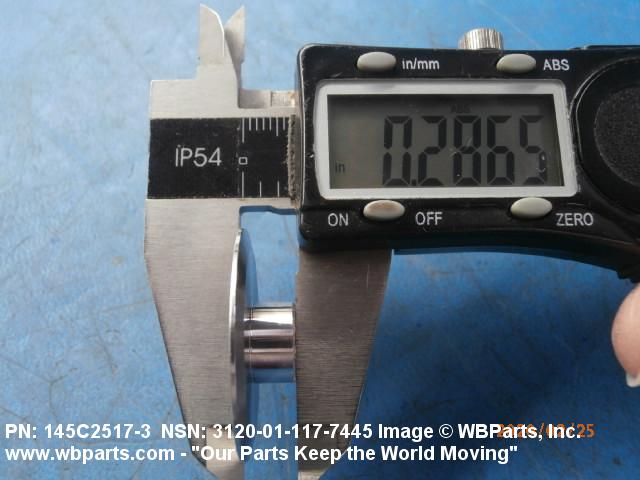

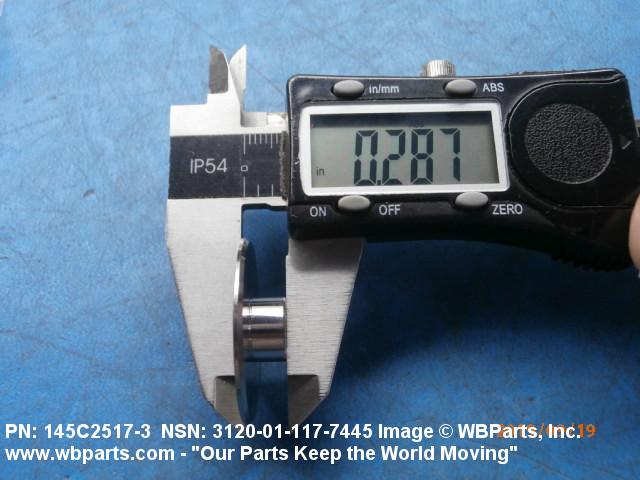

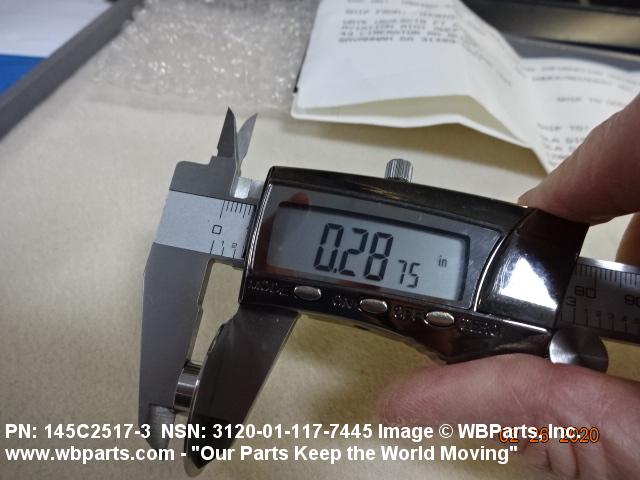

| OVERALL LENGTH | 0.2850 INCHES MINIMUM AND 0.2950 INCHES MAXIMUM |

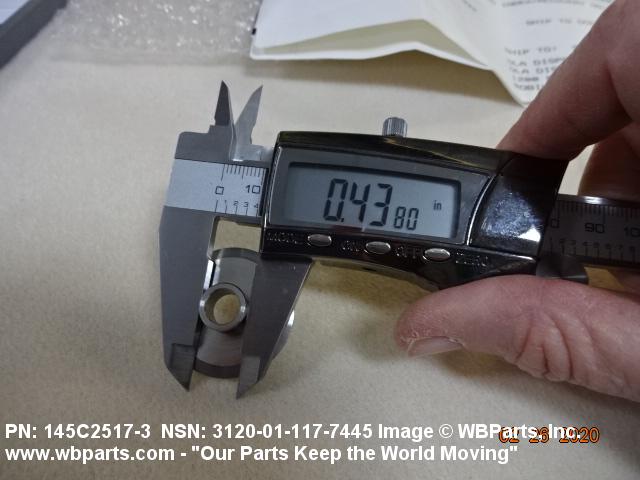

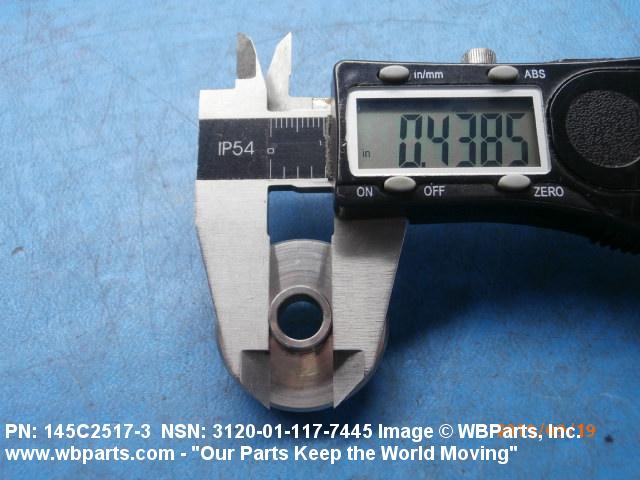

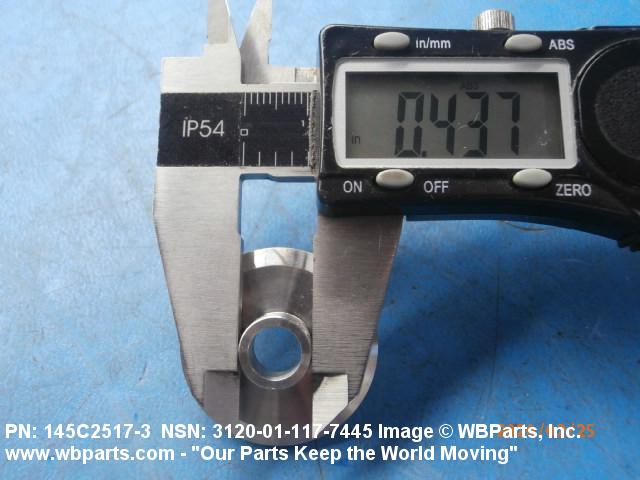

| BODY OUTSIDE DIAMETER | 0.4383 INCHES MINIMUM AND 0.4388 INCHES MAXIMUM |

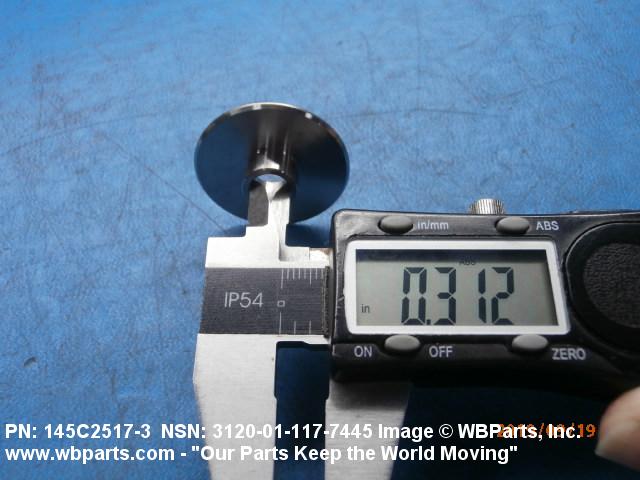

| BODY INSIDE DIAMETER | 0.3120 INCHES MINIMUM AND 0.3130 INCHES MAXIMUM |

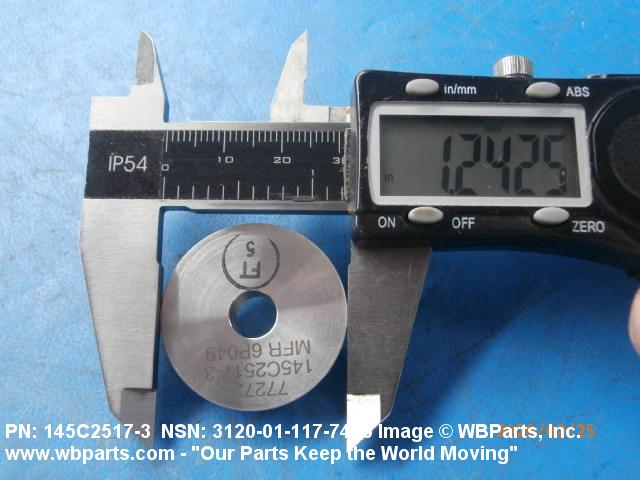

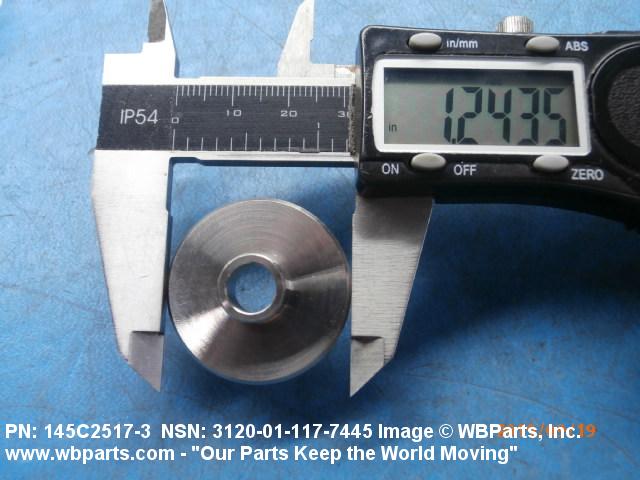

| FLANGE OUTSIDE DIAMETER | 1.2300 INCHES MINIMUM AND 1.2700 INCHES MAXIMUM |

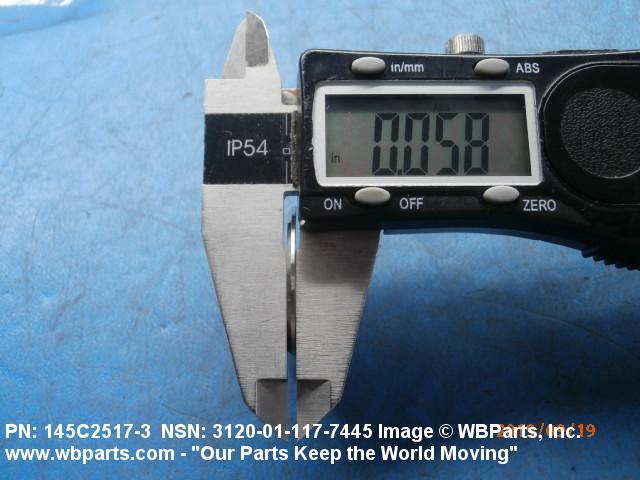

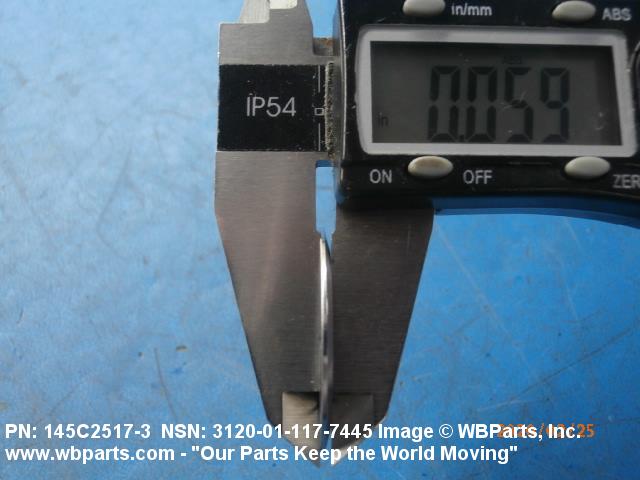

| FLANGE WIDTH | 0.0550 INCHES MINIMUM AND 0.0600 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 80.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES LEFT END SURFACE OF BODY AND FLANGE 80.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY 125.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF FLANGE 125.0 MICROINCHES RIGHT END SURFACE OF BODY 125.0 MICROINCHES RIGHT END SURFACE OF LEFT FLANGE |
| (NON-CORE DATA) UNDERCUT WIDTH | 0.0150 INCHES NOMINAL |
| (NON-CORE DATA) UNDERCUT DEPTH | 0.0050 INCHES NOMINAL |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 145C2517-3 |
