NSN 3120-01-139-3314 ATBY10AA17, WBS20FTF56Z, WBS20FTF56ZA1460
Product Details | SPHERICAL PLAIN BEARING
3120-01-139-3314 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: ATBY10AA17, WBS20FTF56Z, WBS20FTF56ZA1460, 206001338101, 206-001-338-101, 3120-01-139-3314, 01-139-3314, 3120011393314, 011393314
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 29 SEP 1982 | 01-139-3314 | 13204 ( BEARING, PLAIN, SPHERICAL ) |

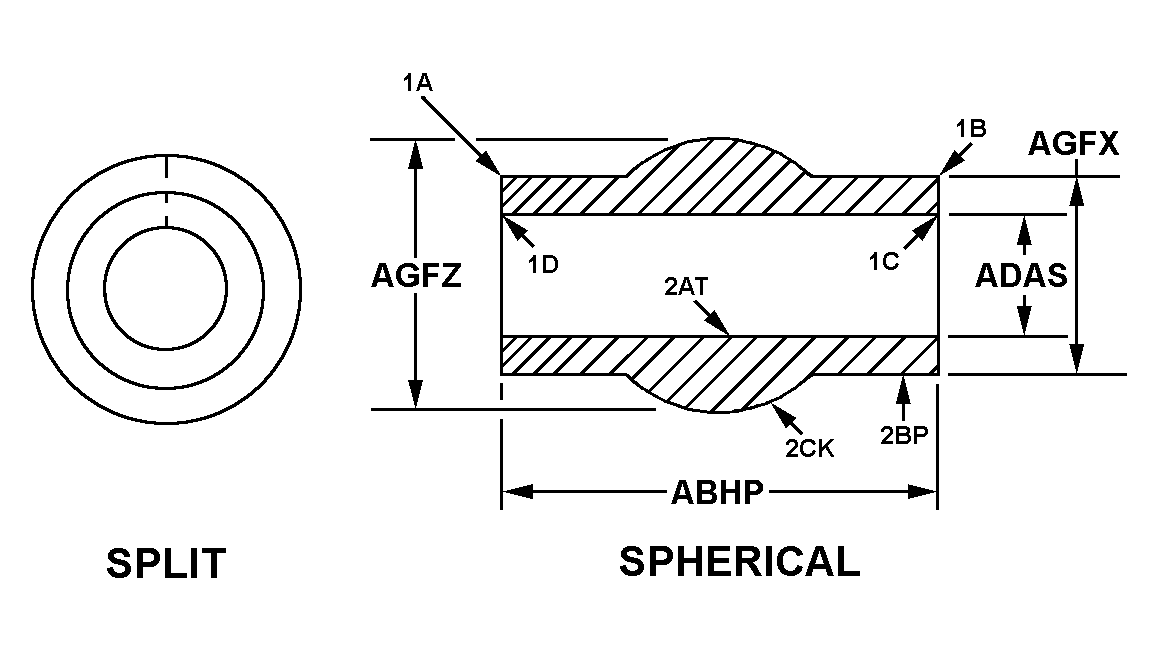

Drawings & Photos | NSN 3120-01-139-3314
Demand History | NSN 3120-01-139-3314
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-139-3314 | 2013-02-39 | 182 | DIBBS |
| 3120-01-139-3314 | 2012-08-232 | 142 | DIBBS |
| 3120-01-139-3314 | 2011-06-171 | 63 | DIBBS |
| 3120-01-139-3314 | 2011-01-28 | 2 | EC |
| 3120-01-139-3314 | 2010-04-112 | 58 | DIBBS |
| 3120-01-139-3314 | 2007-10-297 | 54 | DIBBS |
| 3120-01-139-3314 | 2007-06-159 | 61 | DIBBS |
| 3120-01-139-3314 | 2007-01-31 | 84 | DIBBS |
Cross Reference | NSN 3120-01-139-3314
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 206-001-338-101 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 206-001-338-101 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| 206-001-338-101 | 97499 | BELL HELICOPTER TEXTRON INC. |
| ATBY10AA17 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| WBS20FTF56Z | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| WBS20FTF56ZA1460 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| WBS20FTF56ZA1460 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
