NSN 3120-01-144-1714 10108120 , 1958C92A, 1958-C-92-A
Product Details | SLEEVE BUSHING
3120-01-144-1714 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 10108120 , 1958C92A, 1958-C-92-A, 74A4506842001, 74A450684-2001, 74A4506842003, 74A450684-2003, 3120-01-144-1714, 01-144-1714, 3120011441714, 011441714
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 15 DEC 1982 | 01-144-1714 | 13206 ( BUSHING, SLEEVE ) |

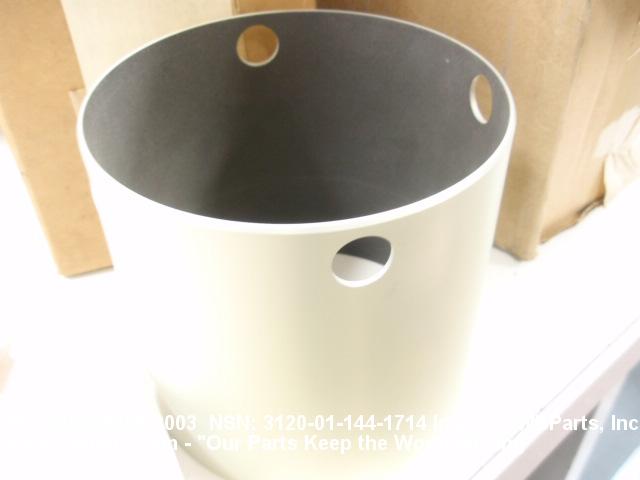

Drawings & Photos | NSN 3120-01-144-1714
Demand History | NSN 3120-01-144-1714
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-144-1714 | 2020-10-304 | 1 | DIBBS-RFPs |
| 74A450684-2003 | 2020-03-86 | 20 | DIBBS |
| 74A450684-2003 | 2019-08-227 | 30 | DIBBS |
| 74A450684-2003 | 2019-08-220 | 24 | DIBBS |
| 74A450684-2003 | 2019-06-177 | 10 | DIBBS |
| 74A450684-2003 | 2019-06-171 | 23 | DIBBS |
| 74A450684-2003 | 2019-01-03 | 20 | DIBBS |
| 3120-01-144-1714 | 2018-12-338 | 33 | DIBBS |
| 3120-01-144-1714 | 2018-07-210 | 10 | DIBBS |
| 3120-01-144-1714 | 2017-11-317 | 15 | DIBBS |
| 3120-01-144-1714 | 2017-10-292 | 7 | US |
| 3120-01-144-1714 | 2017-09-265 | 7 | US |
| 3120-01-144-1714 | 2017-08-213 | 8 | US |
| 3120-01-144-1714 | 2017-06-157 | 18 | DIBBS |
| 3120-01-144-1714 | 2016-11-327 | 35 | DIBBS |
| 3120-01-144-1714 | 2010-10-277 | 4 | Spain |
Cross Reference | NSN 3120-01-144-1714
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1958-C-92-A | 13002 | GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION |
| 74A450684-2001 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A450684-2003 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 74A450684-2003 | 13002 | GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION |
| 74A450684-2003 | 14248 | HARLOW AEROSTRUCTURES LLC |
| 74A450684-2003 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-144-1714
Technical Data | NSN 3120-01-144-1714
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 5.6900 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 6.1275 INCHES MINIMUM AND 6.1285 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 5.9460 INCHES MINIMUM AND 5.9480 INCHES MAXIMUM |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 4 HOLE |
| HOLE DIAMETER | 0.7500 INCHES NOMINAL FIRST |
| TEST DATA DOCUMENT | 76301-PS21202,CLASS A SPECIFICATION |
| CRITICALITY CODE JUSTIFICATION | TEST |
| III FUNCTIONAL DESCRIPTION | NOSE LANDING GEAR |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0200 INCHES MINIMUM AND 0.0400 INCHES MAXIMUM 0.0400 INCHES MINIMUM AND 0.0600 INCHES MAXIMUM 0.0400 INCHES MINIMUM AND 0.0600 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3120-01-144-1714
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-144-1714
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
