Product Details | SLEEVE BUSHING
3120-01-147-2528 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 3120-01-147-2528, 01-147-2528, 3120011472528, 011472528
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01-147-2528 | 13206 ( BUSHING, SLEEVE ) |
Drawings & Photos | NSN 3120-01-147-2528
Cross Reference | NSN 3120-01-147-2528
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-147-2528
Technical Data | NSN 3120-01-147-2528
| Characteristic | Specifications |
|---|---|

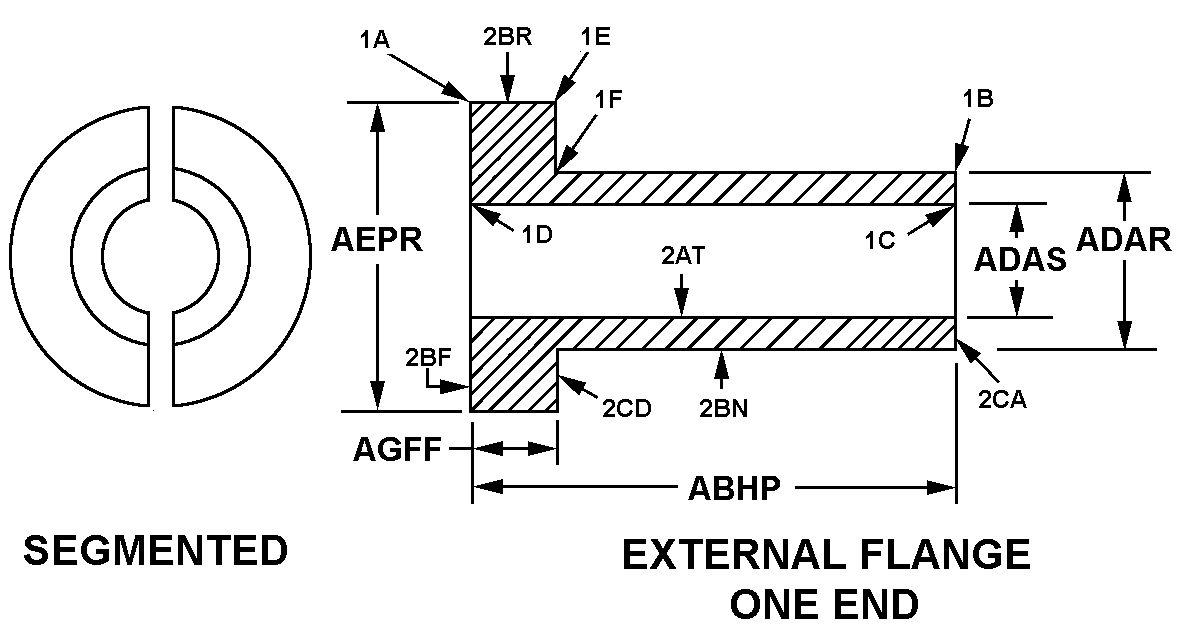

| STYLE DESIGNATOR | 22B SEGMENTED |
| OVERALL LENGTH | 0.6790 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.4000 INCHES MINIMUM AND 0.4060 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.3230 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.6300 INCHES MINIMUM AND 0.6400 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0390 INCHES MINIMUM AND 0.0410 INCHES MAXIMUM |
| CORNER SHAPE | ROUND OUTSIDE LEFT CORNER CHAMFERED OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER ROUND LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 63.0 MICROINCHES INTERMEDIATE LAYER |
| SURFACE GROOVE LOCATION AND QUANTITY | 1 EXTERNAL |
| SPECIAL FEATURES | FURNISHED WITH GROOVE BAND |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0150 INCHES MINIMUM AND 0.0250 INCHES MAXIMUM |
| (NON-CORE DATA) RADIUS | 0.0400 INCHES MINIMUM AND 0.0500 INCHES MAXIMUM 0.0200 INCHES MINIMUM AND 0.0300 INCHES MAXIMUM |
| MANUFACTURERS CODE | 07482 |
| DESIGN CONTROL REFERENCE | 9211M39G02 |
