NSN 3120-01-148-3970 BHS27164, BHS-27164, 01-148-3970
Product Details | SLEEVE BUSHING
3120-01-148-3970 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: BHS27164, BHS-27164, 3120-01-148-3970, 01-148-3970, 3120011483970, 011483970
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 04 MAR 1983 | 01-148-3970 | 13206 ( BUSHING, SLEEVE ) |

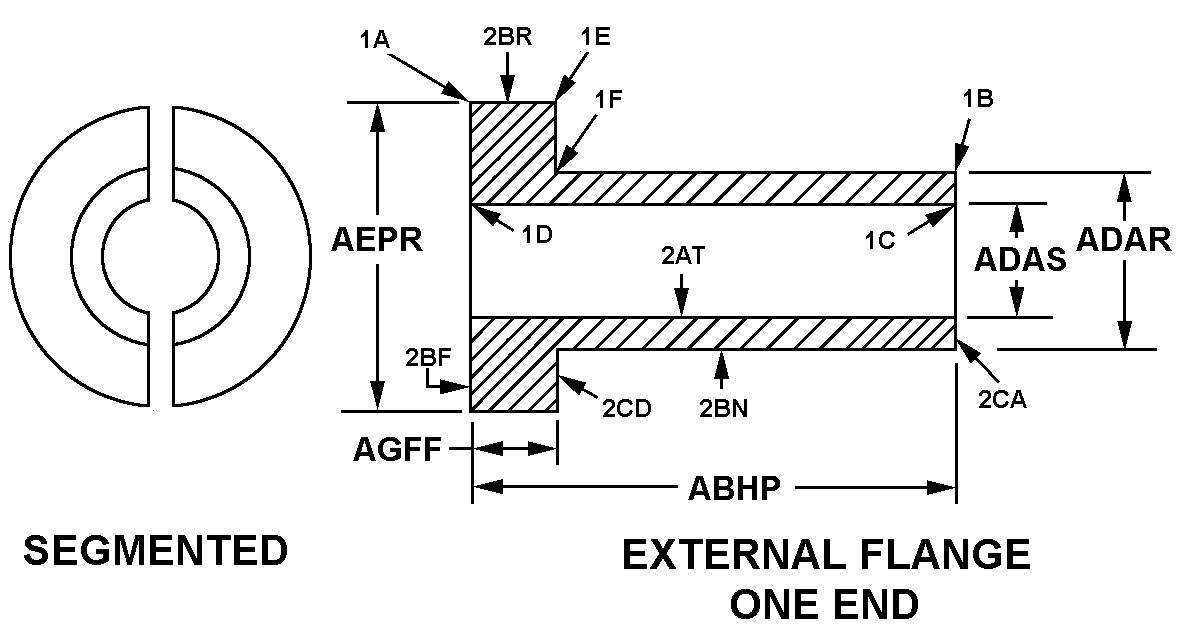

Drawings & Photos | NSN 3120-01-148-3970
Cross Reference | NSN 3120-01-148-3970
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BHS-27164 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-148-3970
Technical Data | NSN 3120-01-148-3970
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 22B-1 SEGMENTED INTERNAL FLANGE ONE END |
| BODY OUTSIDE DIAMETER | 3.5000 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 2.7350 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 4.2500 INCHES NOMINAL |
| FLANGE WIDTH | 0.3750 INCHES NOMINAL |
| RIGHT INTERNAL FLANGE HOLE DIAMETER | 2.3500 INCHES NOMINAL |
| RIGHT INTERNAL FLANGE WIDTH | 0.2500 INCHES NOMINAL |
| CORNER SHAPE | SQUARE ALL CORNERS |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | BHS-27164 |
Restrictions/Controls & Freight Information | NSN 3120-01-148-3970
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
