NSN 3120-01-160-2197 JK5902C06N2B, JK5902D06N2B, 4M273C32
Product Details | SLEEVE BUSHING
3120-01-160-2197 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: JK5902C06N2B, JK5902D06N2B, 4M273C32, 4M273C3-2, 10108154 , 3120-01-160-2197, 01-160-2197, 3120011602197, 011602197
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 19 AUG 1983 | 01-160-2197 | 13206 ( BUSHING, SLEEVE ) |

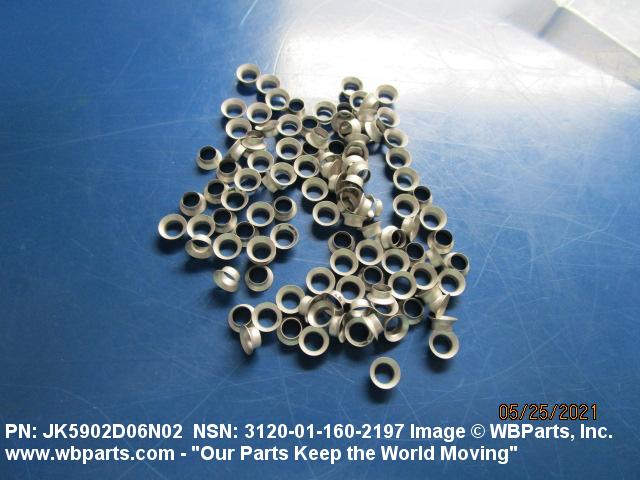

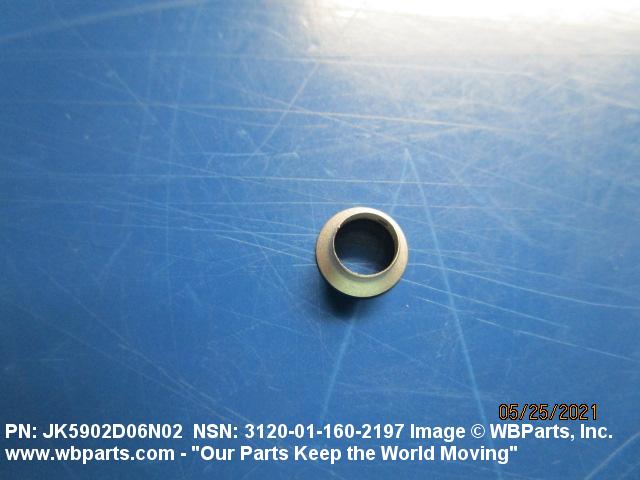

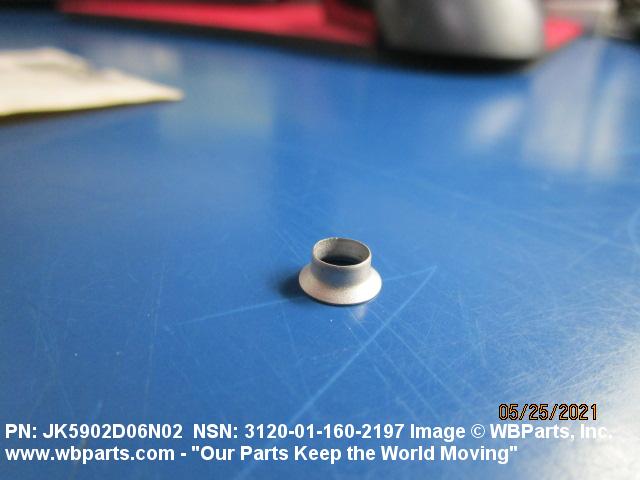

Drawings & Photos | NSN 3120-01-160-2197
Demand History | NSN 3120-01-160-2197
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| JK5902C06N02B | 2022-03-75 | 237 | DIBBS |
| JK5902D06N2B | 2022-03-75 | 237 | DIBBS |
| JK5902D06N2B | 2021-12-348 | 188 | DIBBS |
| JK5902D06N2B | 2021-12-340 | 188 | DIBBS |
| JK5902D06N2B | 2021-05-140 | 247 | DIBBS |
| 3120-01-160-2197 | 2021-05-139 | 114 | United States |
| JK5902D06N2B | 2021-05-126 | 247 | DIBBS |
| JK5902D06N2B | 2021-03-62 | 114 | DIBBS |
| JK5902D06N2B | 2021-02-49 | 114 | DIBBS |
| 3120-01-160-2197 | 2018-08-227 | 114 | DIBBS |
Cross Reference | NSN 3120-01-160-2197
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4M273C3-2 | 76301 | BOEING COMPANY, THE DBA BOEING |
| JK5902C06N2B | 24973 | J.O. KING INCORPORATED |
| JK5902C06N2B | 66530 | CLICK BOND, INC. |
| JK5902D06N2B | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| JK5902D06N2B | 24973 | J.O. KING INCORPORATED |
| JK5902D06N2B | 66530 | CLICK BOND, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-160-2197
Technical Data | NSN 3120-01-160-2197
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS-5525,A286 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

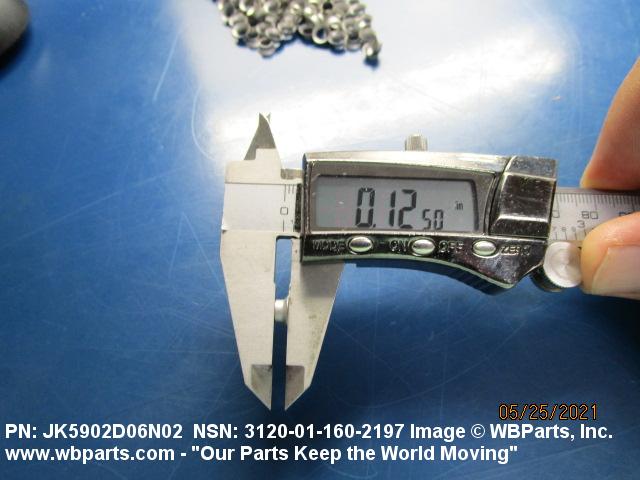

| OVERALL LENGTH | 0.1150 INCHES MINIMUM AND 0.1350 INCHES MAXIMUM |

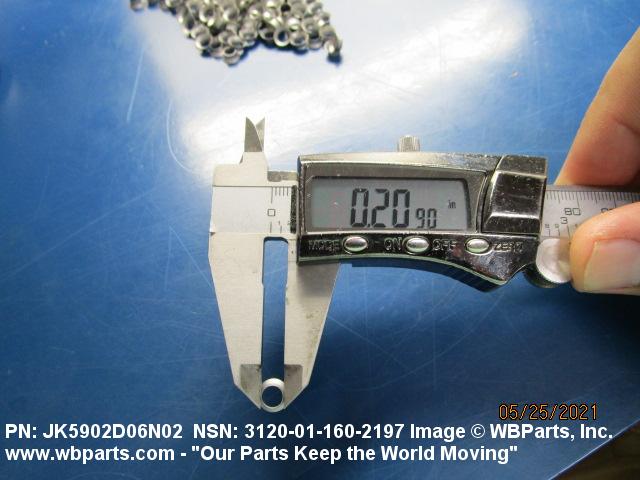

| BODY OUTSIDE DIAMETER | 0.2100 INCHES MINIMUM AND 0.2110 INCHES MAXIMUM |

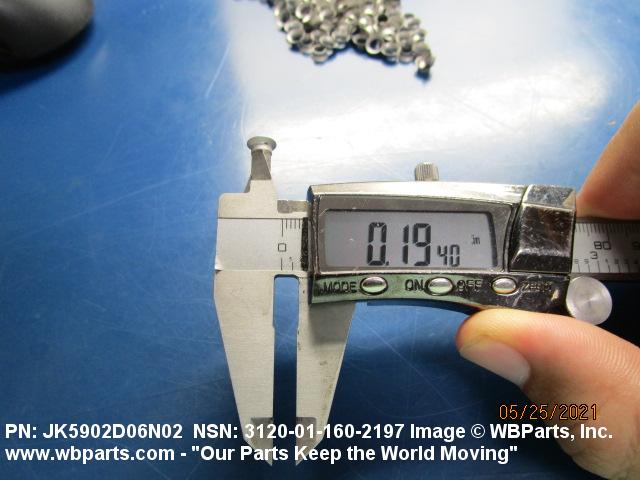

| BODY INSIDE DIAMETER | 0.1930 INCHES MINIMUM AND 0.1945 INCHES MAXIMUM |

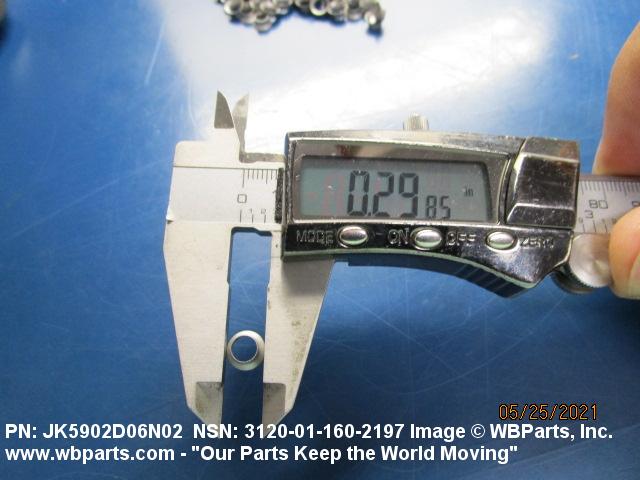

| FLANGE OUTSIDE DIAMETER | 0.2950 INCHES MINIMUM AND 0.3050 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0460 INCHES MINIMUM AND 0.0560 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
Restrictions/Controls & Freight Information | NSN 3120-01-160-2197
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-160-2197
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
