NSN 3120-01-168-0903 70209-26007-144, 01-168-0903, 7020926007144
Product Details | SLEEVE BUSHING
3120-01-168-0903 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: 70209-26007-144, 3120-01-168-0903, 01-168-0903, 3120011680903, 7020926007144, 011680903
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 12 DEC 1983 | 01-168-0903 | 13206 ( BUSHING, SLEEVE ) |

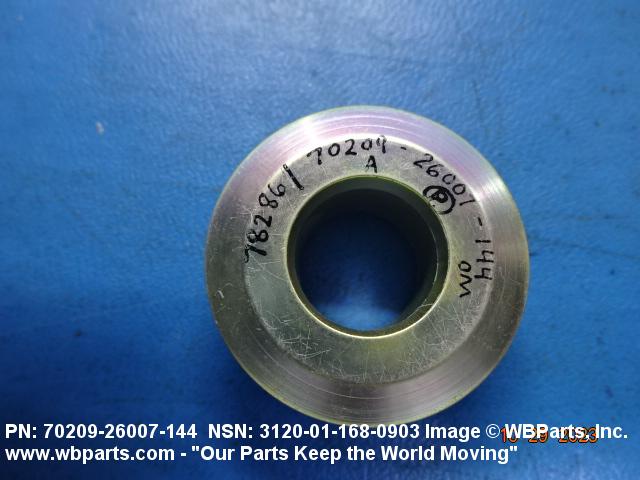

Drawings & Photos | NSN 3120-01-168-0903
Demand History | NSN 3120-01-168-0903
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-168-0903 | 2025-05-149 | 401 | DIBBS |
| 3120-01-168-0903 | 2025-01-29 | 679 | DIBBS |
| 3120-01-168-0903 | 2024-11-312 | 436 | DIBBS |
| 3120-01-168-0903 | 2024-08-233 | 550 | DIBBS |
| 3120-01-168-0903 | 2024-06-172 | 401 | DIBBS |
| 3120-01-168-0903 | 2024-06-163 | 401 | DIBBS |
| 3120-01-168-0903 | 2023-12-345 | 389 | DIBBS |
| 3120-01-168-0903 | 2023-12-340 | 389 | DIBBS |
| 3120-01-168-0903 | 2023-11-332 | 389 | DIBBS |
| 3120-01-168-0903 | 2023-11-325 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-11-324 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-11-321 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-11-320 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-11-319 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-11-317 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-11-312 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-11-311 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-11-310 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-11-307 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-11-306 | 538 | DIBBS |
| 7020-92-600-7144 | 2023-11-305 | 8 | United States |
| 3120-01-168-0903 | 2023-11-305 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-10-303 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-10-300 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-10-299 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-10-297 | 538 | DIBBS |
| 3120-01-168-0903 | 2023-10-296 | 538 | DIBBS |
| 7020-92-600-7144 | 2023-10-293 | 8 | United States |
| 3120-01-168-0903 | 2023-10-291 | 538 | DIBBS |
| 7020-92-600-7144 | 2023-10-283 | 8 | United States |
| 3120-01-168-0903 | 2023-10-283 | 538 | DIBBS |
| 7020-92-600-7144 | 2023-09-265 | 16 | United States |
| 3120-01-168-0903 | 2023-07-194 | 154 | DIBBS |
| 3120-01-168-0903 | 2023-05-123 | 317 | DIBBS |
| 3120-01-168-0903 | 2022-09-251 | 796 | DIBBS |
| 3120-01-168-0903 | 2022-08-234 | 796 | DIBBS |
| 3120-01-168-0903 | 2022-06-168 | 352 | DIBBS |
| 3120-01-168-0903 | 2022-06-160 | 352 | DIBBS |
| 3120-01-168-0903 | 2022-02-45 | 574 | DIBBS |
| 3120-01-168-0903 | 2022-02-37 | 574 | DIBBS |
| 3120-01-168-0903 | 2021-11-312 | 1 | Taiwan |
| 3120-01-168-0903 | 2021-10-285 | 507 | DIBBS |
| 3120-01-168-0903 | 2021-09-249 | 251 | DIBBS |
| 3120-01-168-0903 | 2021-08-220 | 1316 | DIBBS |
| 3120-01-168-0903 | 2021-07-210 | 377 | DIBBS |
| 3120-01-168-0903 | 2021-07-202 | 377 | DIBBS |
| 3120-01-168-0903 | 2021-06-181 | 1341 | DIBBS |
| 3120-01-168-0903 | 2020-11-306 | 1524 | DIBBS |
| 3120-01-168-0903 | 2020-10-282 | 3044 | DIBBS |
| 3120-01-168-0903 | 2020-09-253 | 172 | DIBBS |
| 3120-01-168-0903 | 2020-09-247 | 41 | DIBBS |
| 3120-01-168-0903 | 2020-08-238 | 41 | DIBBS |
| 3120-01-168-0903 | 2020-08-230 | 121 | DIBBS |
| 3120-01-168-0903 | 2020-08-227 | 708 | US |
| 3120-01-168-0903 | 2020-08-226 | 708 | DIBBS |
| 3120-01-168-0903 | 2020-08-226 | 24 | DIBBS |
| 70209-26007-144 | 2020-06-180 | 237 | DIBBS |
| 3120-01-168-0903 | 2020-05-141 | 311 | DIBBS |
| 3120-01-168-0903 | 2020-05-141 | 494 | DIBBS |
| 3120-01-168-0903 | 2020-04-98 | 206 | DIBBS |
| 3120-01-168-0903 | 2020-04-92 | 494 | DIBBS |
| 3120-01-168-0903 | 2020-04-92 | 311 | DIBBS |
| 3120-01-168-0903 | 2020-03-65 | 413 | DIBBS |
| 3120-01-168-0903 | 2020-03-65 | 31 | DIBBS |
| 3120-01-168-0903 | 2020-02-42 | 31 | DIBBS |
| 3120-01-168-0903 | 2020-02-35 | 413 | DIBBS |
| 3120-01-168-0903 | 2019-03-77 | 1056 | DIBBS |
| 3120-01-168-0903 | 2018-04-98 | 1648 | DIBBS |
| 7020-92-600-7144 | 2018-02-52 | 24 | US |
| 3120-01-168-0903 | 2018-01-16 | 150 | DIBBS |
| 3120-01-168-0903 | 2017-06-155 | 680 | DIBBS |
| 3120-01-168-0903 | 2017-05-128 | 488 | DIBBS |
| 3120-01-168-0903 | 2016-08-215 | 326 | DIBBS |
| 3120-01-168-0903 | 2016-07-193 | 298 | DIBBS |
| 3120-01-168-0903 | 2015-09-271 | 8 | US |
| 3120-01-168-0903 | 2014-10-282 | 64 | DIBBS |
| 3120-01-168-0903 | 2014-09-271 | 71 | DIBBS |
| 3120-01-168-0903 | 2014-07-197 | 1215 | DIBBS |
| 3120-01-168-0903 | 2014-03-67 | 2 | DIBBS |
| 3120-01-168-0903 | 2014-02-36 | 1602 | DIBBS |
| 3120-01-168-0903 | 2013-10-303 | 2033 | DIBBS |
| 3120-01-168-0903 | 2013-03-64 | 1835 | DIBBS |
| 3120-01-168-0903 | 2012-04-96 | 826 | DIBBS |
| 7020-92-600-7144 | 2012-02-54 | 180 | US |
| 3120-01-168-0903 | 2010-10-285 | 453 | DIBBS |
| 3120-01-168-0903 | 2009-06-180 | 522 | DIBBS |
| 3120-01-168-0903 | 2009-06-161 | 521 | DIBBS |
| 3120-01-168-0903 | 2009-01-22 | 287 | DIBBS |
| 3120-01-168-0903 | 2008-09-248 | 10 | United States |
| 3120-01-168-0903 | 2008-07-201 | 661 | DIBBS |
| 3120-01-168-0903 | 2008-06-158 | 884 | DIBBS |
| 3120-01-168-0903 | 2008-03-91 | 358 | DIBBS |
| 3120-01-168-0903 | 2007-09-260 | 504 | DIBBS |
| 3120-01-168-0903 | 2007-08-219 | 64 | DIBBS |
| 3120-01-168-0903 | 2007-08-219 | 400 | DIBBS |
Cross Reference | NSN 3120-01-168-0903
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70209-26007-144 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-168-0903
Related Products | NSN 3120-01-168-0903
Technical Data | NSN 3120-01-168-0903
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 172 OR COPPER ALLOY 173 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-530 FED SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,CL 2,TY 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

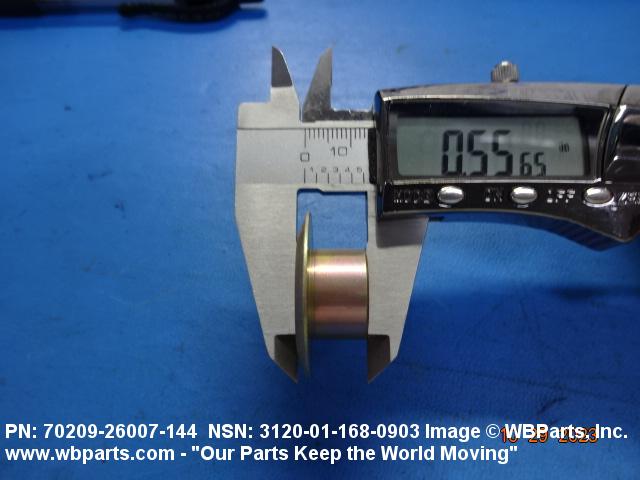

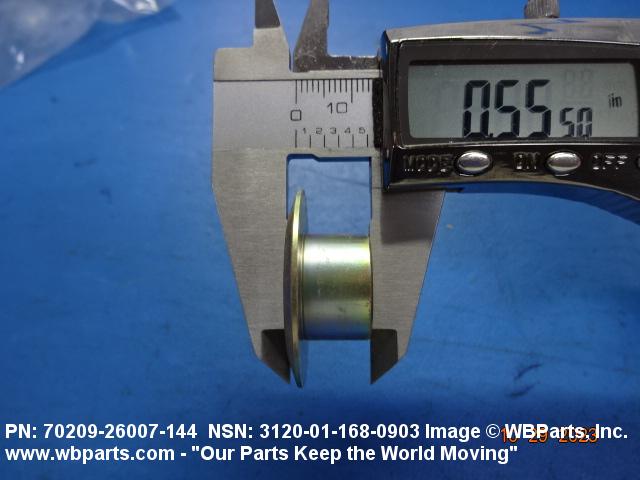

| OVERALL LENGTH | 0.5500 INCHES MINIMUM AND 0.5600 INCHES MAXIMUM |

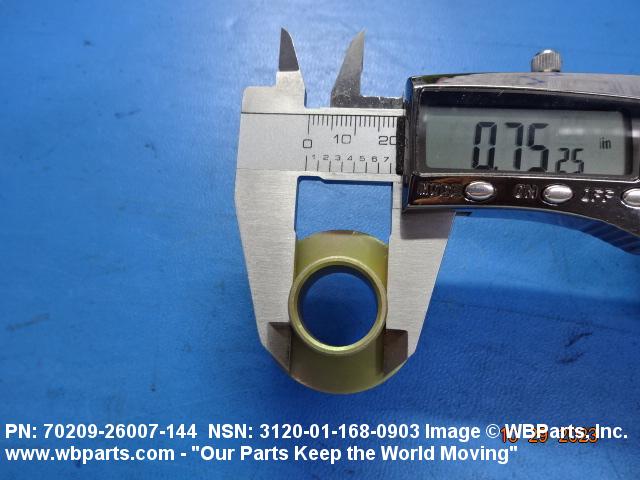

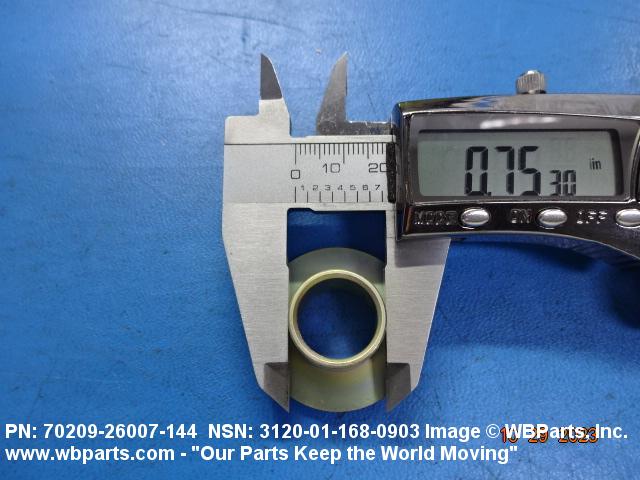

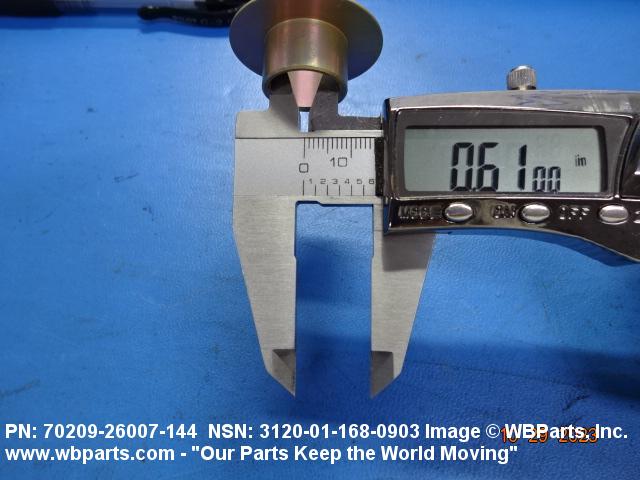

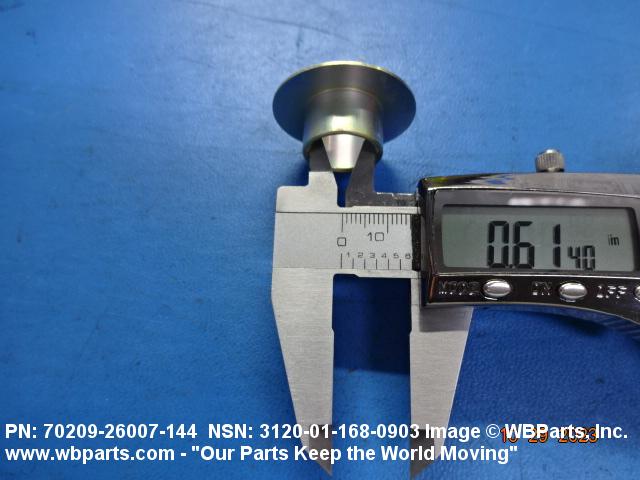

| BODY OUTSIDE DIAMETER | 0.7530 INCHES MINIMUM AND 0.7535 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.6108 INCHES MINIMUM AND 0.6178 INCHES MAXIMUM |

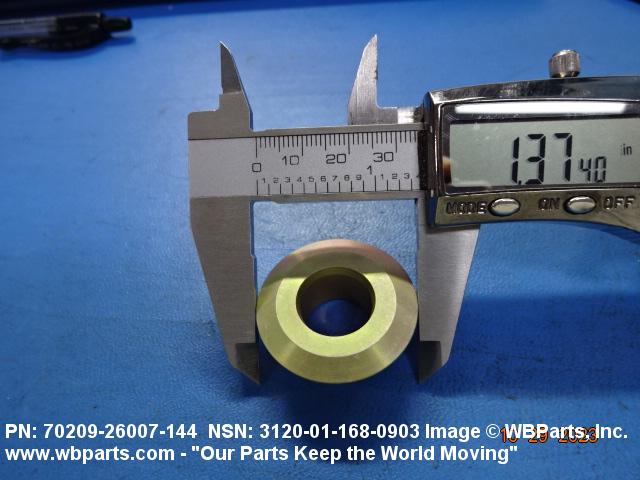

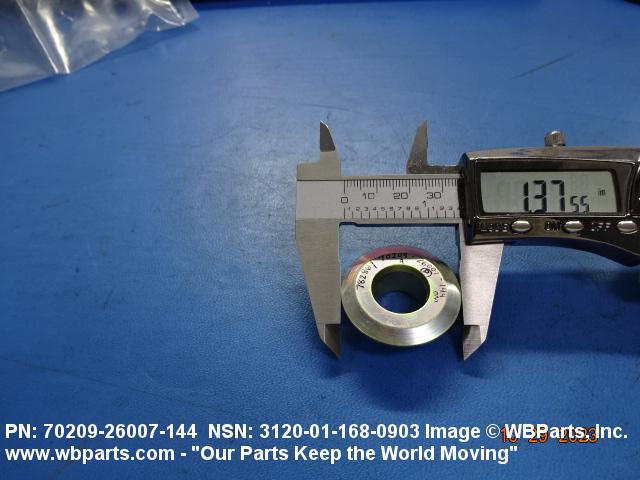

| FLANGE OUTSIDE DIAMETER | 1.3750 INCHES NOMINAL |

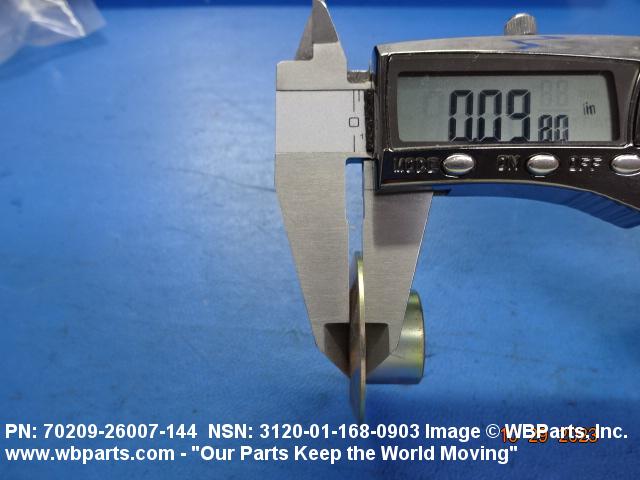

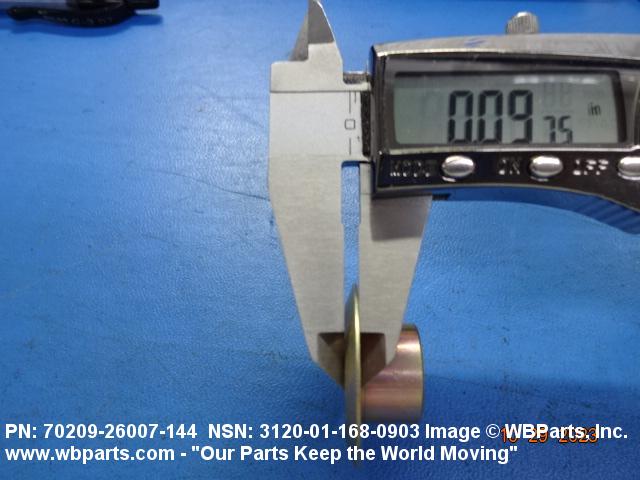

| FLANGE WIDTH | 0.0950 INCHES MINIMUM AND 0.1000 INCHES MAXIMUM |
| CORNER SHAPE | CHAMFERED OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER SQUARE INSIDE RIGHT CORNER SQUARE INSIDE LEFT CORNER SQUARE LEFT FLANGE OUTSIDE RIGHT CORNER UNDERCUT LEFT FLANGE BODY CORNER |
| SURFACE FINISH | 90.0 MICROINCHES INSIDE DIAMETER SURFACE OF BODY 90.0 MICROINCHES LEFT END SURFACE OF BODY AND FLANGE 63.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF BODY 90.0 MICROINCHES OUTSIDE DIAMETER SURFACE OF FLANGE 90.0 MICROINCHES RIGHT END SURFACE OF BODY 63.0 MICROINCHES RIGHT END SURFACE OF LEFT FLANGE |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0650 INCHES MINIMUM AND 0.0700 INCHES MAXIMUM |
| (NON-CORE DATA) CHAMFER ANGLE | 70.0 DEGREES NOMINAL |
| (NON-CORE DATA) UNDERCUT WIDTH | 0.0620 INCHES MAXIMUM |
| (NON-CORE DATA) UNDERCUT DEPTH | 0.0050 INCHES MINIMUM AND 0.0100 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3120-01-168-0903
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114870 | BEARING/BUSHING METAL |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-168-0903
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
