NSN 3120-01-172-5651 3275953, 01-172-5651, 011725651
Product Details | LINEAR-ROTARY MOTION ROLLER
3120-01-172-5651 A cylindrical body having a centrally located hole to accommodate a pin or shaft for attachment to a push rod guide, yoke, rocker arm, turntable, or rail. The item provides a rolling contact with the face of a valve stem, or the lobes of a cam ring or camshaft on engines, fuel injection pumps, latches, turntables, parallel bearing surfaces requiring a roller support, and the like. Excludes BEARING, ROLLER, CYLINDRICAL; ROLLER, ELECTRICAL SWITCH; and friction bearings. See also CAM FOLLOWER, NEEDLE BEARING.
Part Alternates: 3275953, 3120-01-172-5651, 01-172-5651, 3120011725651, 011725651
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 22 FEB 1984 | 01-172-5651 | 28215 ( ROLLER, LINEAR-ROTARY MOTION ) |
Drawings & Photos | NSN 3120-01-172-5651
Cross Reference | NSN 3120-01-172-5651
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3275953 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-172-5651
Technical Data | NSN 3120-01-172-5651
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL 4140 FSCM 10001 OR ASTM A322 4140 FSCM 10001 |
| METALLIC HARDNESS RATING | 27.0 MINIMUM ROCKWELL C AND 31.0 MAXIMUM ROCKWELL C |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| SURFACE TREATMENT | PHOSPHATE, MIL-P-16232, TYPE M, CLASS 1 |

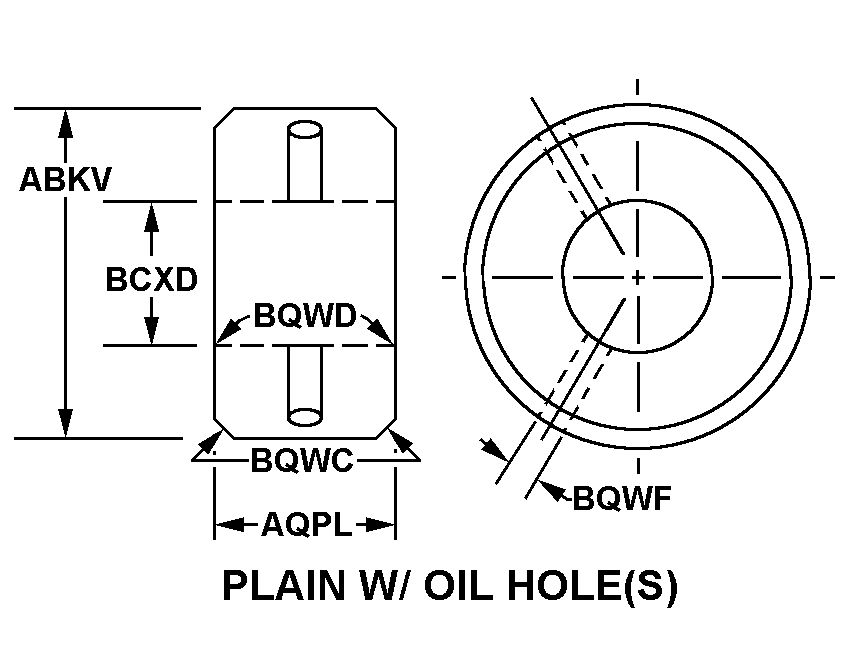

| STYLE DESIGNATOR | R4 PLAIN W/OIL HOLE (S) |
| OUTSIDE DIAMETER | 1.1830 INCHES MINIMUM AND 1.1930 INCHES MAXIMUM |
| FACE WIDTH | 0.3080 INCHES MINIMUM AND 0.3100 INCHES MAXIMUM |
| BORE INSIDE DIAMETER | 0.3750 INCHES MINIMUM AND 0.3760 INCHES MAXIMUM |
| CHAMFER/RADIUS OF OUTSIDE CORNER | 0.031 IN. CHAMFER BY 45 DEG |
| OIL HOLE DIAMETER | 0.0940 INCHES MINIMUM AND 0.0970 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3120-01-172-5651
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114690 | BALLS/ROLLS BEARING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-172-5651
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
