NSN 3120-01-174-8308 CA639243, CA6392-43, 01-174-8308

3120-01-174-8308 A half of a two-piece split type BEARING, SLEEVE.

Part Alternates: CA639243, CA6392-43, 3120-01-174-8308, 01-174-8308, 3120011748308, 011748308

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	23 MAR 1984	01-174-8308	22210 ( BEARING HALF, SLEEVE )

Part Number	Cage Code	Manufacturer
CA6392-43	83130	BUFFALO PUMPS, INC. DIV BUFFALO PUMPS DIV

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3120-01-174-8308

Compare

3120-01-174-8628, 3120-01-174-8630, 3120-01-174-8631, 3120-01-174-8800, 3120-01-174-8989

Characteristic	Specifications
MATERIAL	COPPER ALLOY OVERALL
OVERALL LENGTH	2.8750 INCHES NOMINAL
BODY OUTSIDE DIAMETER	1.7490 INCHES MINIMUM AND 1.7500 INCHES MAXIMUM
BODY INSIDE DIAMETER	1.1275 INCHES MINIMUM AND 1.1285 INCHES MAXIMUM
CORNER SHAPE	CHAMFERED OUTSIDE LEFT CORNER CHAMFERED OUTSIDE RIGHT CORNER
ANTIROTATION/LUBRICATION TYPE AND QUANTITY	5 HOLE
HOLE DIAMETER	0.2500 INCHES NOMINAL FIRST
LUBRICATION MATERIAL	GRAPHITE

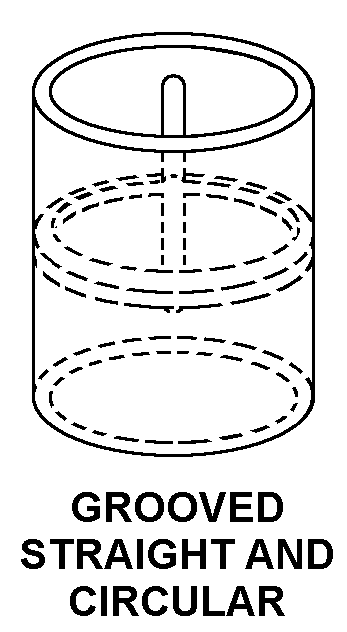

LUBRICANT ACCOMMODATION STYLE	68 GROOVED STRAIGHT AND CIRCULAR
SPECIAL FEATURES	48 0.1250 IN. DIA HOLES IN EACH HALF,INSIDE OF BORE ONLY,6 ROWS IN EACH HALF DRILLED AT RANDOM AND STAGGERED,0.0937 IN. DEEP,FILLED WITH GRAPHITE
(NON-CORE DATA) CHAMFER LENGTH	0.3750 INCHES NOMINAL 0.3750 INCHES NOMINAL
MANUFACTURERS CODE	83130
DESIGN CONTROL REFERENCE	CA6392-43

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114870	BEARING/BUSHING METAL
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
