NSN 3120-01-185-8738 LB7077A, 01-185-8738, 011858738
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-185-8738 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: LB7077A, 3120-01-185-8738, 01-185-8738, 3120011858738, 011858738
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 05 AUG 1984 | 01-185-8738 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

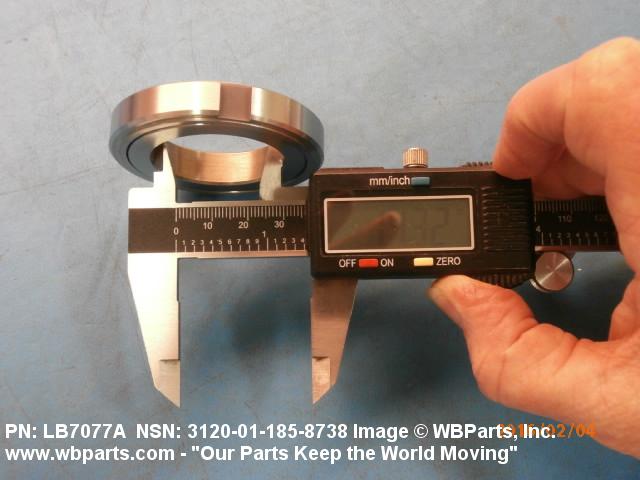

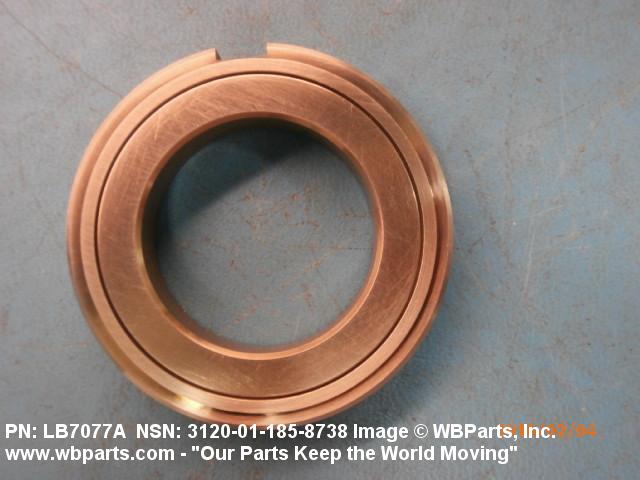

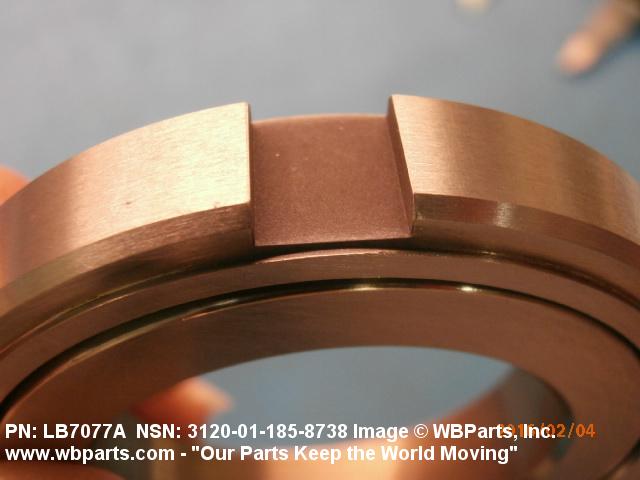

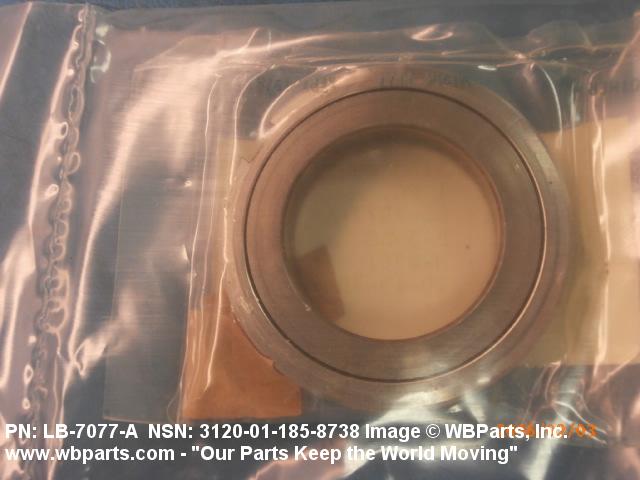

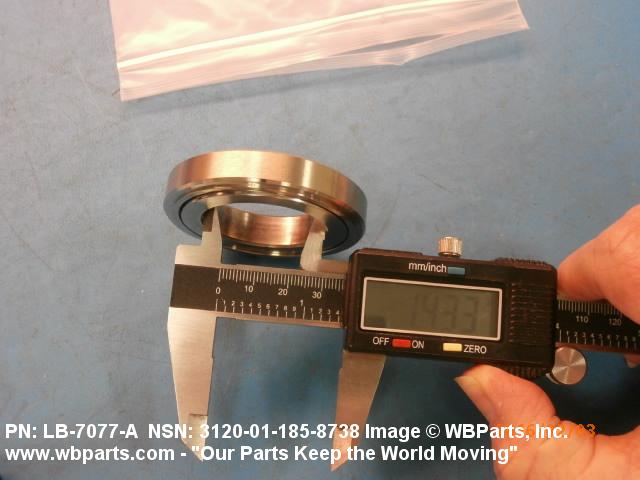

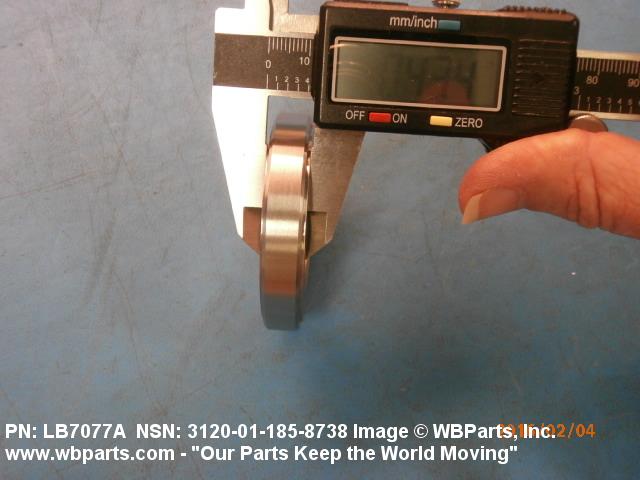

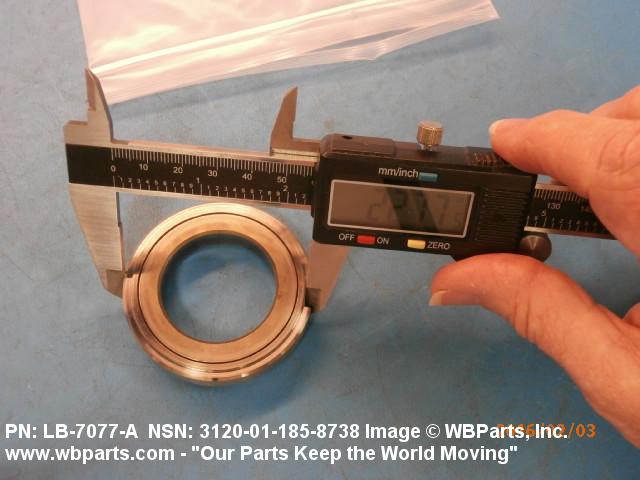

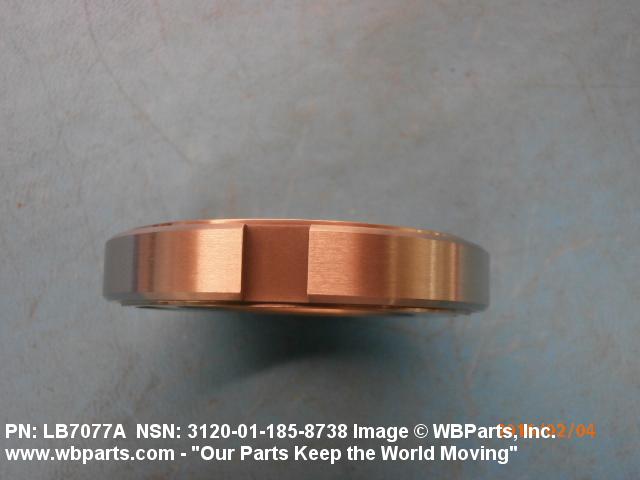

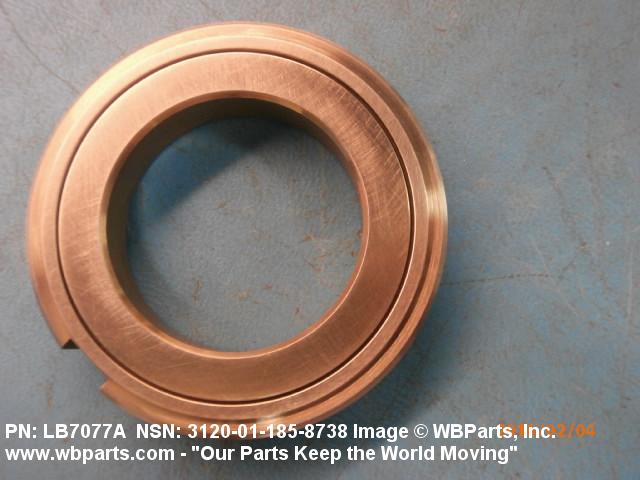

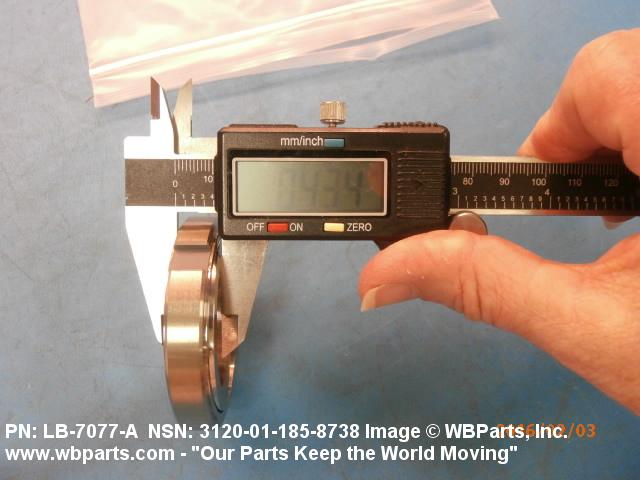

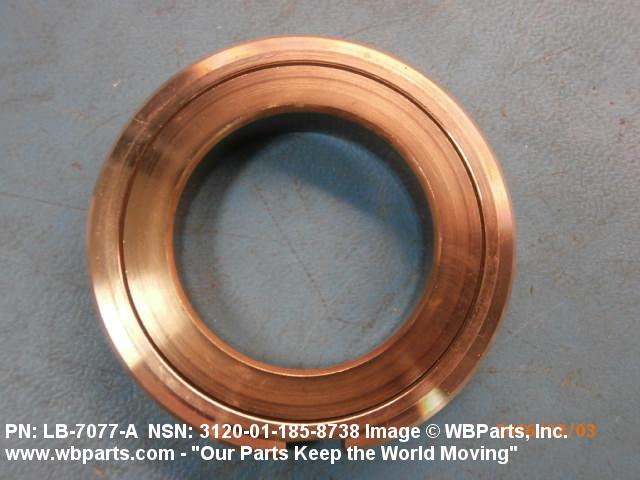

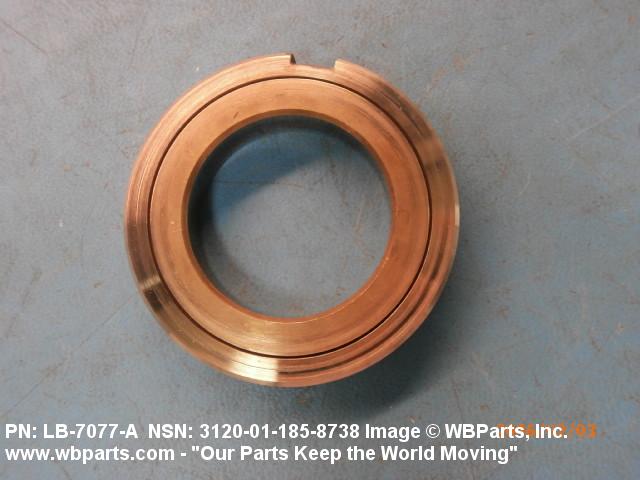

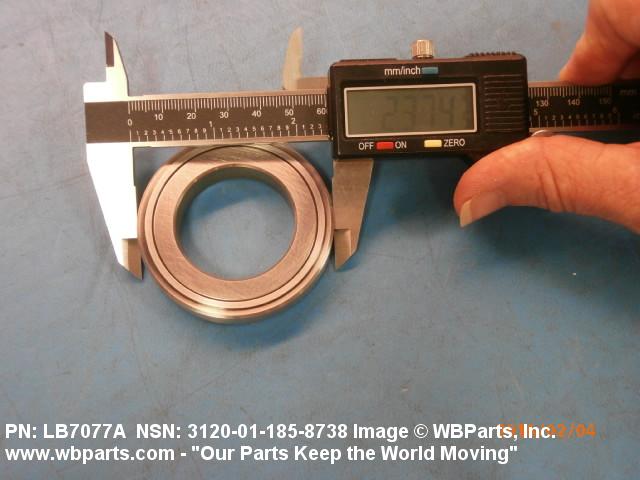

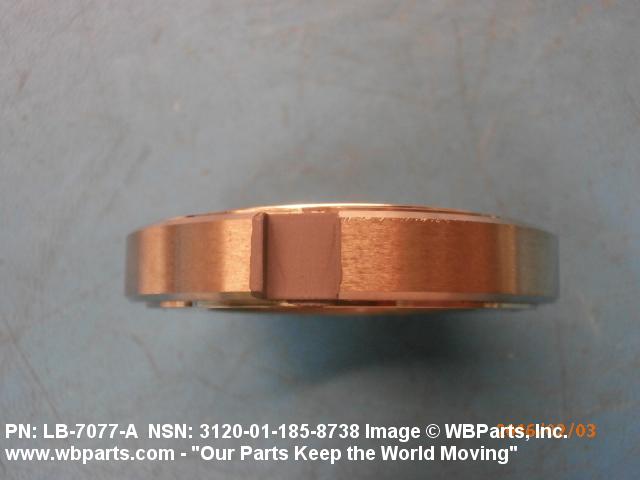

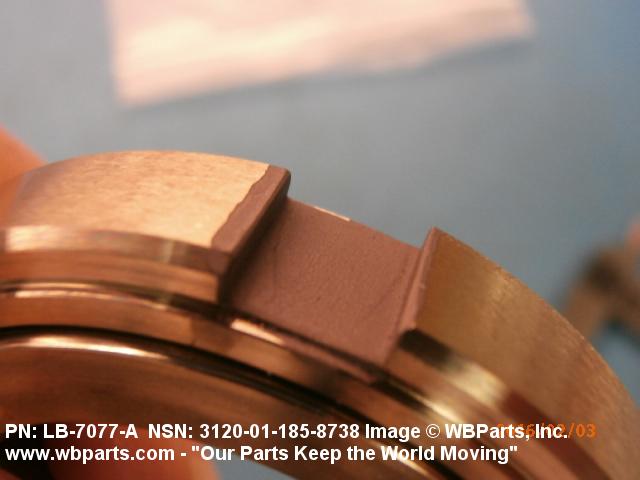

Drawings & Photos | NSN 3120-01-185-8738
Demand History | NSN 3120-01-185-8738
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LB7077A | 2021-01-18 | 22 | DIBBS |
| LB7077A | 2019-11-317 | 13 | DIBBS |
| 3120-01-185-8738 | 2017-05-134 | 48 | DIBBS |
| LB7077A | 2016-01-26 | 4 | United States |
| 3120-01-185-8738 | 2015-12-362 | 16 | DIBBS |
| 3120-01-185-8738 | 2015-10-294 | 12 | DIBBS |
| 3120-01-185-8738 | 2015-08-225 | 21 | DIBBS |
| 3120-01-185-8738 | 2015-08-217 | 21 | DIBBS |
| 3120-01-185-8738 | 2015-07-208 | 5 | DIBBS |
| 3120-01-185-8738 | 2015-07-200 | 5 | DIBBS |
| LB7077A | 2015-06-181 | 4 | United States |
| 3120-01-185-8738 | 2013-05-143 | 17 | DIBBS |
| 3120-01-185-8738 | 2013-05-128 | 17 | DIBBS |
| 3120-01-185-8738 | 2013-03-76 | 11 | DIBBS |
| 3120-01-185-8738 | 2011-03-70 | 24 | DIBBS |
| 3120-01-185-8738 | 2010-09-273 | 23 | DIBBS |
| 3120-01-185-8738 | 2009-10-281 | 9 | DIBBS |
| 3120-01-185-8738 | 2009-07-188 | 9 | DIBBS |
| 3120-01-185-8738 | 2009-05-151 | 15 | DIBBS |
| 3120-01-185-8738 | 2009-04-106 | 12 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-185-8738
Related Products | NSN 3120-01-185-8738
Technical Data | NSN 3120-01-185-8738
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING INNER MEMBER STEEL COMP 630 OUTER RACE MEMBER STEEL COMP 630 RACE INSERT CARBON AND GRAPHITE RACE LINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OUTER RACE MEMBER AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE RACE INSERT |
| BORE DIAMETER | 1.4380 INCHES NOMINAL |
| OUTER MEMBER OUTSIDE DIAMETER | 2.2750 INCHES NOMINAL |
| INNER MEMBER WIDTH | 0.4350 INCHES NOMINAL |
| LUBRICATION MATERIAL | CARBON GRAPHITE |
| MANUFACTURERS CODE | 55231 |
| DESIGN CONTROL REFERENCE | LB7077A |
Restrictions/Controls & Freight Information | NSN 3120-01-185-8738
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-185-8738
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
