NSN 3120-01-189-9293 178315, 4G94044, 4G94044101A
Product Details | V BEARING
3120-01-189-9293 A cylindrical device, primarily designed to furnish a bearing surface for a low-speed oscillating shaft. The item consists of a precision machined or inclosed V or modified V groove and may include a drilled hole for spring loading.
Part Alternates: 178315, 4G94044, 4G94044101A, 4G94044-101A, 3120-01-189-9293, 01-189-9293, 3120011899293, 011899293
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 21 SEP 1984 | 01-189-9293 | 20574 ( BEARING, V ) |
Drawings & Photos | NSN 3120-01-189-9293
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-189-9293
Related Products | NSN 3120-01-189-9293
Technical Data | NSN 3120-01-189-9293
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OR TITANIUM ALLOY OVERALL |
| SURFACE TREATMENT | PLASTIC POLYTETRAFLUOROETHYLENE V-GROOVE SURFACE |

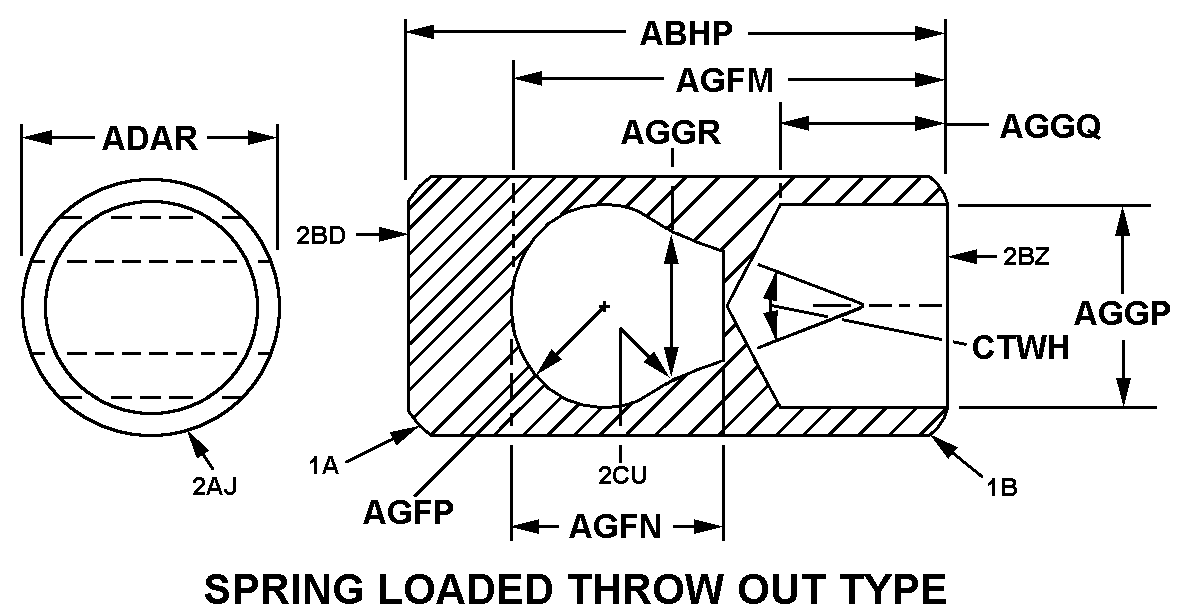

| STYLE DESIGNATOR | 33 SPRING LOADED THROW OUT TYPE |
| OVERALL LENGTH | 12.7380 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 5.8750 INCHES NOMINAL |
| END OF ROUNDED EXTENSION TO RIGHT END OF BEARING DISTANCE | 12.5978 INCHES NOMINAL |
| END OF ROUNDED EXTENSION OF V GROOVE TO BOTTOM OF V GROOVE DISTANCE | 6.6530 INCHES NOMINAL |
| V GROOVE ROUNDED EXTENSION RADIUS | 5.8780 INCHES MINIMUM AND 5.8800 INCHES MAXIMUM |
| DRILLED HOLE DIAMETER | 1.5000 INCHES NOMINAL |
| DRILLED HOLE DEPTH | 5.2430 INCHES NOMINAL |
| V GROOVE WIDTH | 4.3060 INCHES NOMINAL |
| V GROOVE ANGLE | 31.82 DEGREES NOMINAL |
| CORNER SHAPE | CHAMFERED OUTSIDE LEFT CORNER ROUND OUTSIDE RIGHT CORNER |
| (NON-CORE DATA) CHAMFER LENGTH | 0.1600 INCHES NOMINAL |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| (NON-CORE DATA) RADIUS | 0.1200 INCHES NOMINAL |
| MANUFACTURERS CODE | 98897 |
| MFR SOURCE CONTROLLING REFERENCE | 4G94044 |
