NSN 3120-01-190-4145 KR12CWS, KR12CW-S, KR12CWV
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-190-4145 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: KR12CWS, KR12CW-S, KR12CWV, KR12CW-V, 3120-01-190-4145, 01-190-4145, 3120011904145, 011904145
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 27 SEP 1984 | 01-190-4145 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |
Drawings & Photos | NSN 3120-01-190-4145
Demand History | NSN 3120-01-190-4145
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-190-4145 | 2018-02-58 | 8 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-190-4145
Technical Data | NSN 3120-01-190-4145
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 OUTER RACE MEMBER PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5630 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OUTER RACE MEMBER |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM OUTER RACE MEMBER |

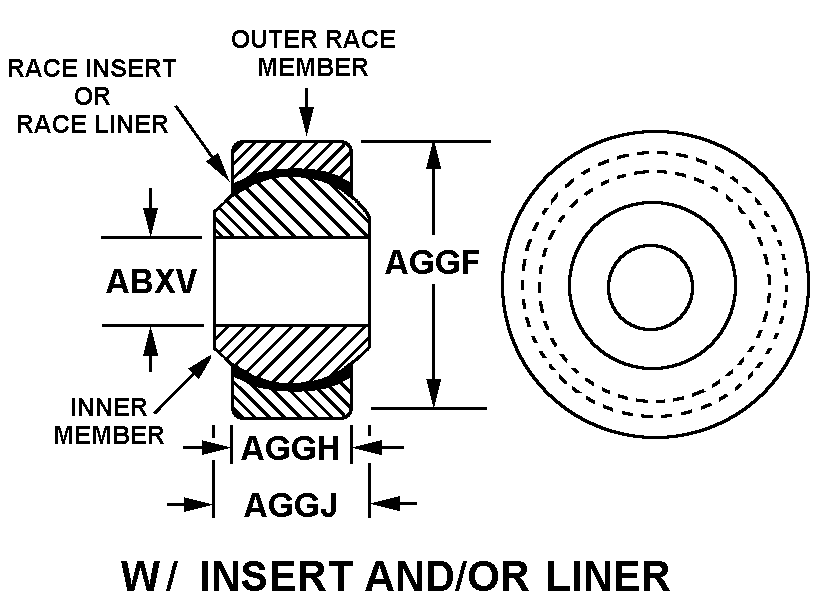

| STYLE DESIGNATOR | 11A WITH INSERT AND/OR LINER |
| BORE DIAMETER | 0.7495 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.3745 INCHES MINIMUM AND 1.3750 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.6250 INCHES MINIMUM AND 0.6350 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.8730 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 52300 POUNDS |
Restrictions/Controls & Freight Information | NSN 3120-01-190-4145
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-190-4145
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
