NSN 3120-01-200-5923 B64LSS, 40SF64SS, 40SF64TT
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-200-5923 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: B64LSS, 40SF64SS, 40SF64TT, 5833845, 14901456, 3120-01-200-5923, 01-200-5923, 3120012005923, 012005923
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 07 FEB 1985 | 01-200-5923 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

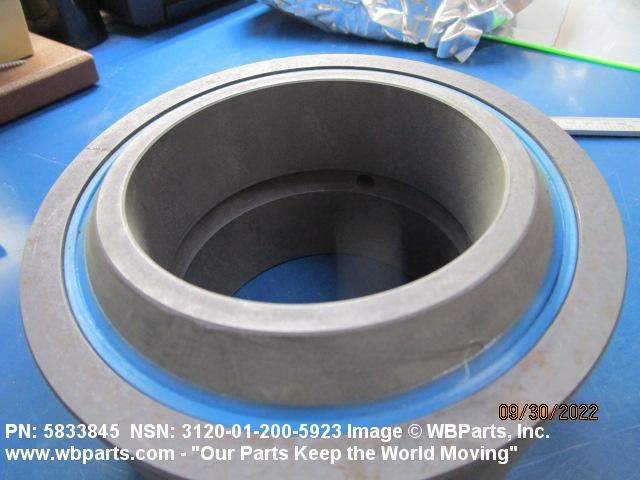

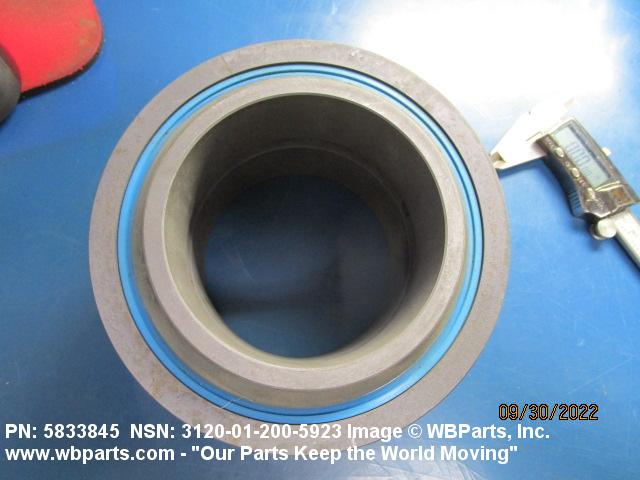

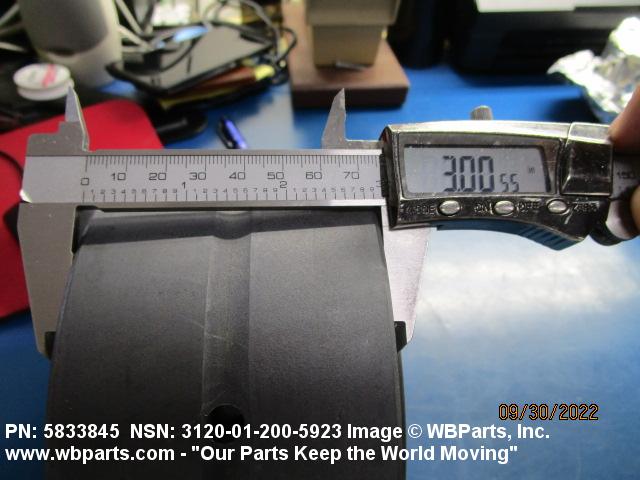

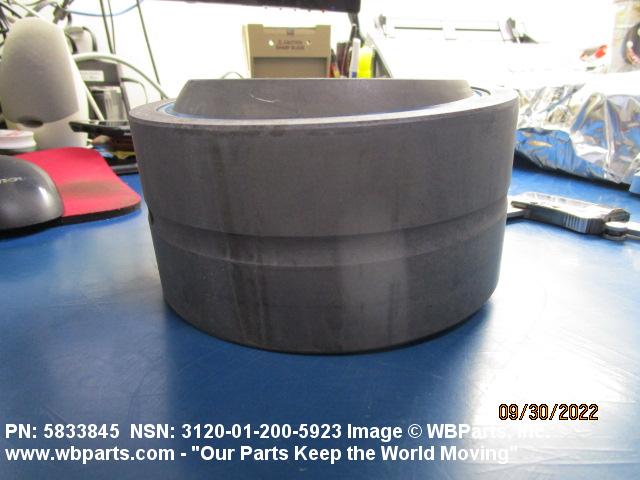

Drawings & Photos | NSN 3120-01-200-5923
Demand History | NSN 3120-01-200-5923
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| B64LSS | 2025-04-98 | 6 | DIBBS |
| 3120-01-200-5923 | 2022-08-215 | 1 | United States |
| 3120-01-200-5923 | 2016-02-48 | 23 | DIBBS |
| 3120-01-200-5923 | 2016-02-40 | 23 | DIBBS |
| 3120-01-200-5923 | 2007-02-46 | 8 | DIBBS |
Cross Reference | NSN 3120-01-200-5923
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14901456 | K0189 | ROLLS ROYCE POWER ENGINEERING PLC |
| 40SF64SS | K8864 | TORRINGTON CO LTD PART OF INGERSOLL RAND |
| 40SF64TT | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 40SF64TT | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 5833845 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| B64LSS | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-200-5923
Related Products | NSN 3120-01-200-5923
Technical Data | NSN 3120-01-200-5923
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4150 INNER MEMBER STEEL COMP 5160 OUTER RING |
| SURFACE TREATMENT | LUBRICANT DRY FILM OVERALL |

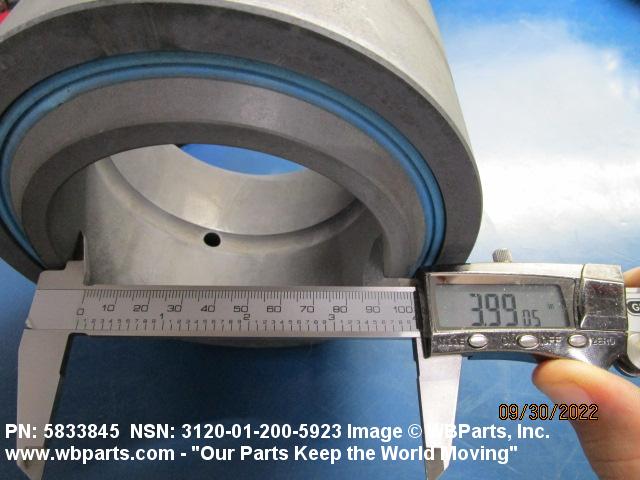

| BORE DIAMETER | 3.9992 INCHES MINIMUM AND 4.0000 INCHES MAXIMUM |

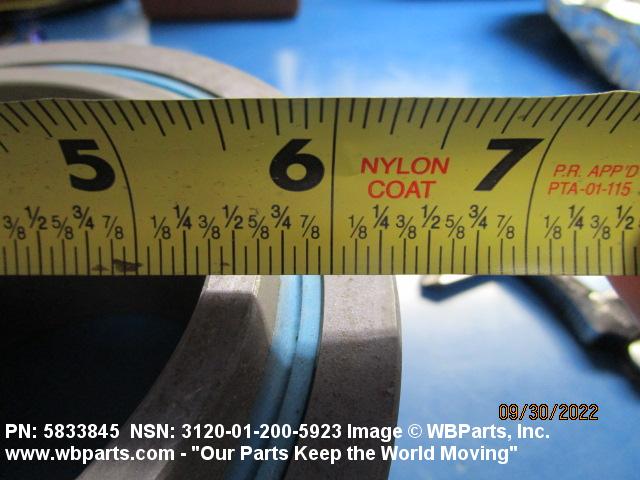

| OUTER MEMBER OUTSIDE DIAMETER | 6.2490 INCHES MINIMUM AND 6.2500 INCHES MAXIMUM |

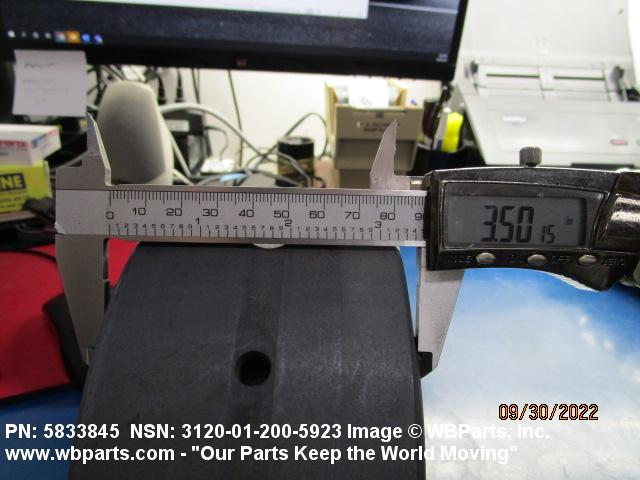

| INNER MEMBER WIDTH | 3.4950 INCHES MINIMUM AND 3.5000 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3120-01-200-5923
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-200-5923
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
