NSN 3120-01-210-1758 LTD1224, LTD-1224, 01-210-1758
Product Details | THRUST WASHER BEARING
3120-01-210-1758 An item of any peripheral shape usually having one flat or spherical surface and a centrally located hole. It is designed for applications involving moving (kinetic) loads. Except for items fabricated from bearing quality synthetic (plastic) or composed of multilayer material, one bearing surface must either have a specific surface finish designation of 32 microinch (0.8 micrometre) or less, arithmetical average (aa) (arithmetic mean deviation) or one of the following conditions: be lapped or ground; have visible or detectable means of lubrication; grooves, indentations; or self-lubrication. The thickness must not exceed 25 percent of the outside diameter of the shortest distance between peripheral flats (when thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance). Excludes straight, tubular (without flange) items having a bearing surface(s) parallel to the axis of the bore only. See also WASHER, FLAT and SPACER, SLEEVE.
Part Alternates: LTD1224, LTD-1224, 3120-01-210-1758, 01-210-1758, 3120012101758, 012101758
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 07 JUN 1985 | 01-210-1758 | 13211 ( BEARING, WASHER, THRUST ) |

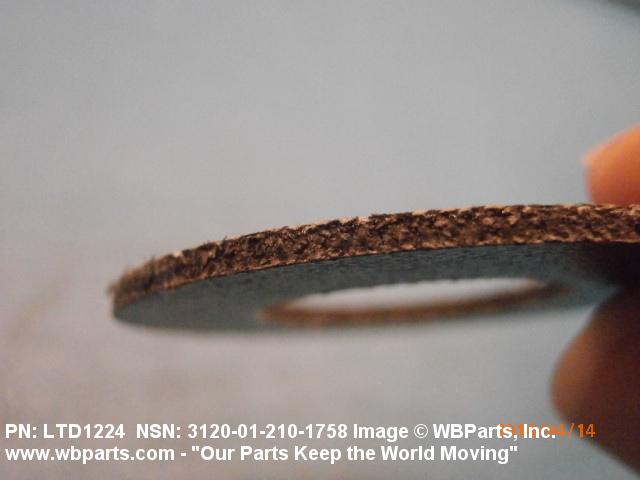

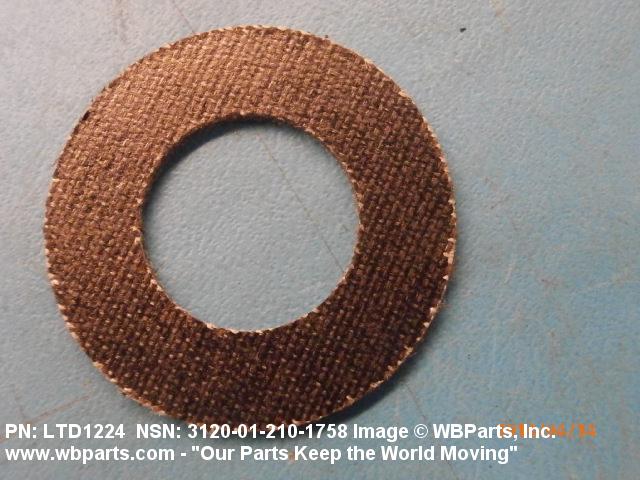

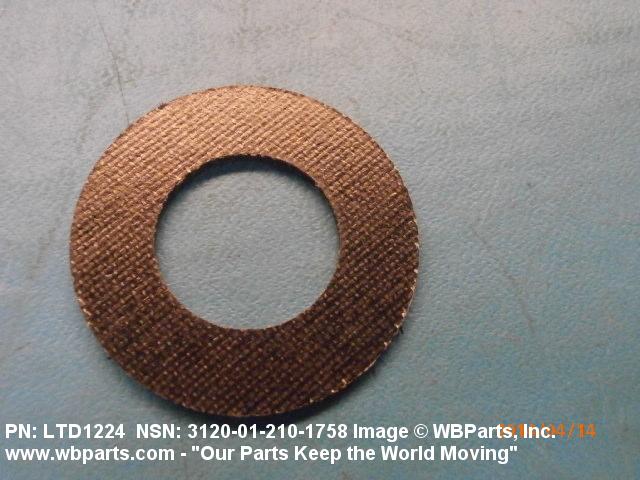

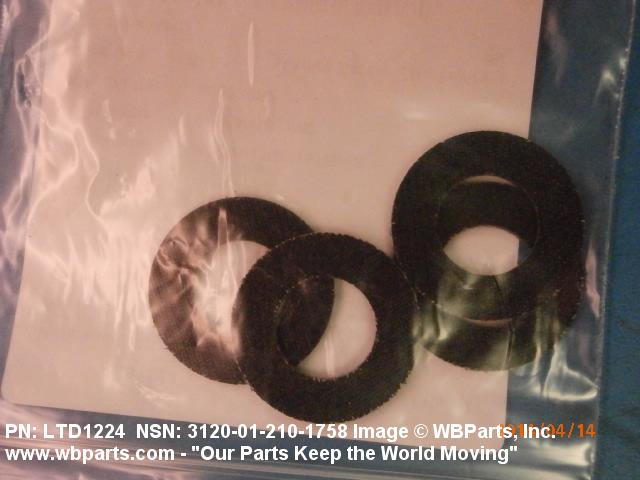

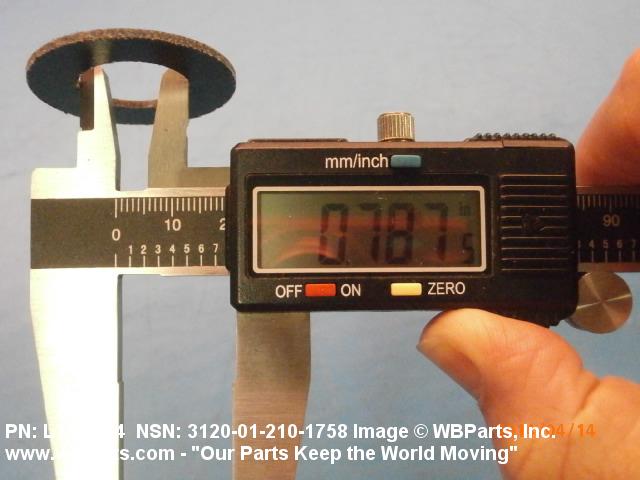

Drawings & Photos | NSN 3120-01-210-1758
Demand History | NSN 3120-01-210-1758
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LTD-1224 | 2025-10-293 | 121 | DIBBS |
| LTD-1224 | 2025-03-90 | 178 | DIBBS |
| LTD-1224 | 2025-03-82 | 178 | DIBBS |
| LTD-1224 | 2023-12-348 | 250 | DIBBS |
| LTD-1224 | 2023-10-288 | 22 | DIBBS |
| LTD-1224 | 2023-06-170 | 24 | DIBBS |
| LTD-1224 | 2023-03-88 | 60 | DIBBS |
| 3120-01-210-1758 | 2015-09-250 | 610 | DIBBS |
| 3120-01-210-1758 | 2015-06-163 | 362 | DIBBS |
| 3120-01-210-1758 | 2015-06-155 | 362 | DIBBS |
| LTD1224 | 2014-04-93 | 4 | United States |
| 3120-01-210-1758 | 2014-03-80 | 348 | DIBBS |
| 3120-01-210-1758 | 2014-03-72 | 348 | DIBBS |
| 3120-01-210-1758 | 2013-09-259 | 219 | DIBBS |
| 3120-01-210-1758 | 2013-08-240 | 219 | DIBBS |
| 3120-01-210-1758 | 2013-07-195 | 43 | DIBBS |
| 3120-01-210-1758 | 2013-06-157 | 50 | DIBBS |
| 3120-01-210-1758 | 2013-05-149 | 36 | DIBBS |
| 3120-01-210-1758 | 2008-01-24 | 207 | DIBBS |
| 3120-01-210-1758 | 2007-09-256 | 304 | DIBBS |
Cross Reference | NSN 3120-01-210-1758
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LTD-1224 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-210-1758
Technical Data | NSN 3120-01-210-1758
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | RECTANGULAR |
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OUTER LAYER |
| STYLE DESIGNATOR | ROUND |
| OUTSIDE DIAMETER | 1.4800 INCHES MINIMUM AND 1.5000 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | ROUND |
| CORNER SHAPE | SQUARE ALL CORNERS |
| OVERALL THICKNESS | 0.0610 INCHES MINIMUM AND 0.0650 INCHES MAXIMUM |
| DIAMETER | 0.7810 INCHES MINIMUM AND 0.8010 INCHES MAXIMUM |
| MATERIAL | PLASTIC PHENOLIC INNER LAYER |
Restrictions/Controls & Freight Information | NSN 3120-01-210-1758
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-210-1758
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
