NSN 3120-01-215-9061 MS2704114, MS27041-14, 01-215-9061
Product Details | JEWEL BEARING
3120-01-215-9061 An item generally round in shape and usually having a centrally located hole. It has at least one flat bearing surface. It is made of precious or semi-precious gem (ruby, sapphire and the like), natural or synthetic. It is intended for use in precision instruments, meters, timing devices, clocks, and the like.
Part Alternates: MS2704114, MS27041-14, 3120-01-215-9061, 01-215-9061, 3120012159061, 012159061
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 SEP 1985 | 01-215-9061 | 42832 ( BEARING, JEWEL ) |

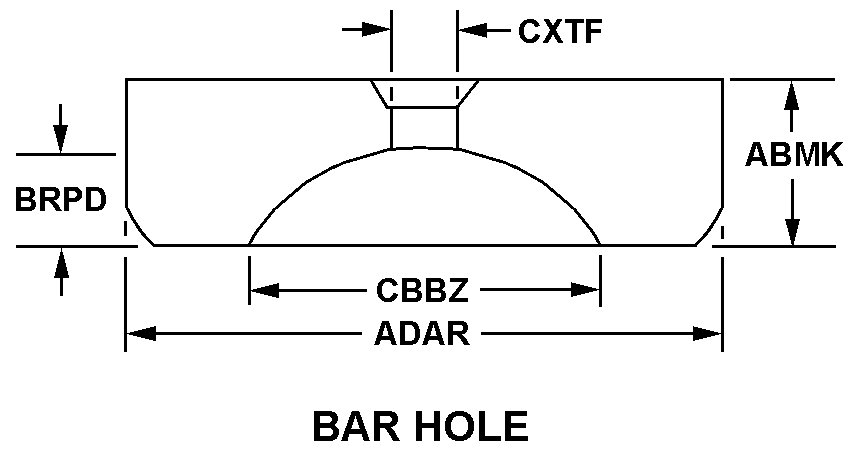

Drawings & Photos | NSN 3120-01-215-9061
Cross Reference | NSN 3120-01-215-9061
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS27041-14 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-215-9061
Technical Data | NSN 3120-01-215-9061
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBY SYNTHETIC OR SAPPHIRE SYNTHETIC OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-27497 MIL SPEC ALL MATERIAL RESPONSES OVERALL |
| STYLE DESIGNATOR | 45 BAR HOLE |
| OVERALL WIDTH | 0.0200 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.0625 INCHES NOMINAL |
| CUP DIAMETER | 0.0600 INCHES NOMINAL |
| HOLE DIAMETER | 0.0157 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS27041-14 |
Restrictions/Controls & Freight Information | NSN 3120-01-215-9061
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
