NSN 3120-01-236-5618 M85069/6N12B, M850696N12B, MILS85069

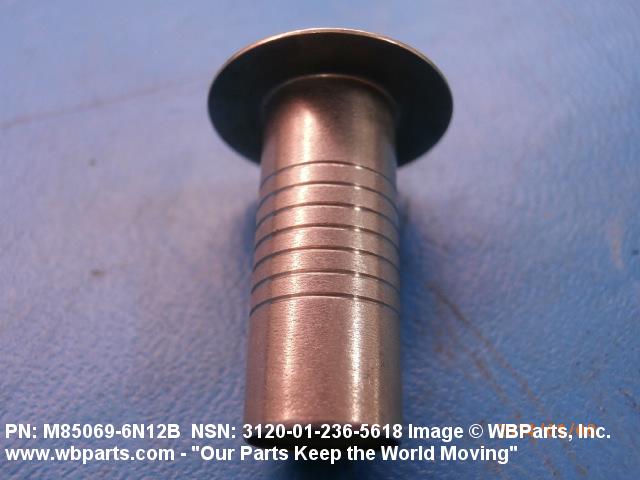

Product Details | SLEEVE BUSHING
3120-01-236-5618 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: M85069/6N12B, M850696N12B, MILS85069, MIL-S-85069, 3120-01-236-5618, 01-236-5618, 3120012365618, 012365618
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 17 JUL 1986 | 01-236-5618 | 13206 ( BUSHING, SLEEVE ) |

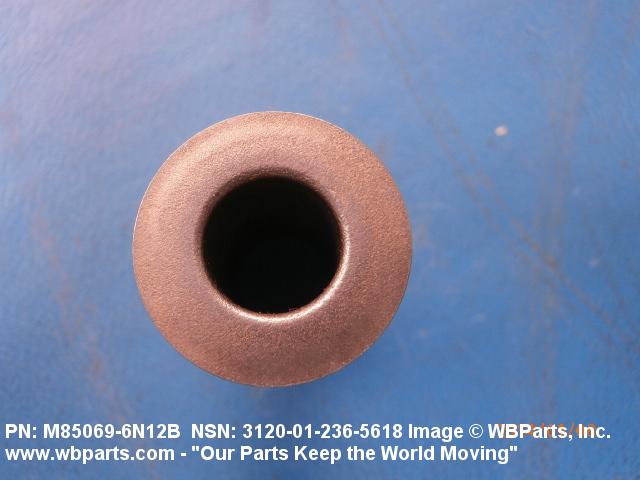

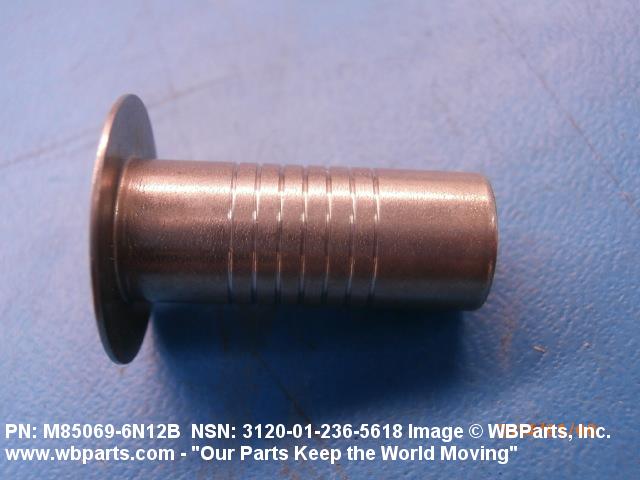

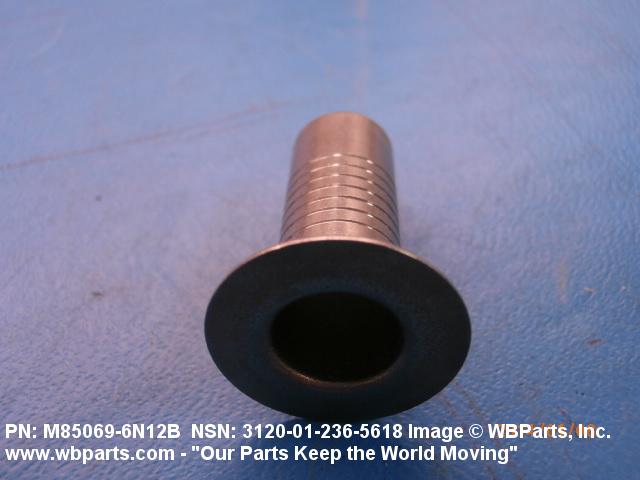

Drawings & Photos | NSN 3120-01-236-5618
Demand History | NSN 3120-01-236-5618
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M850696N12B | 2014-01-03 | 25 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-236-5618
Technical Data | NSN 3120-01-236-5618
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

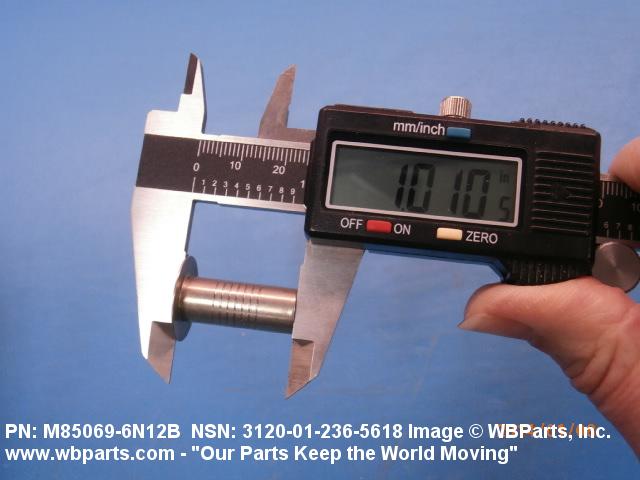

| OVERALL LENGTH | 0.9900 INCHES MINIMUM AND 1.0100 INCHES MAXIMUM |

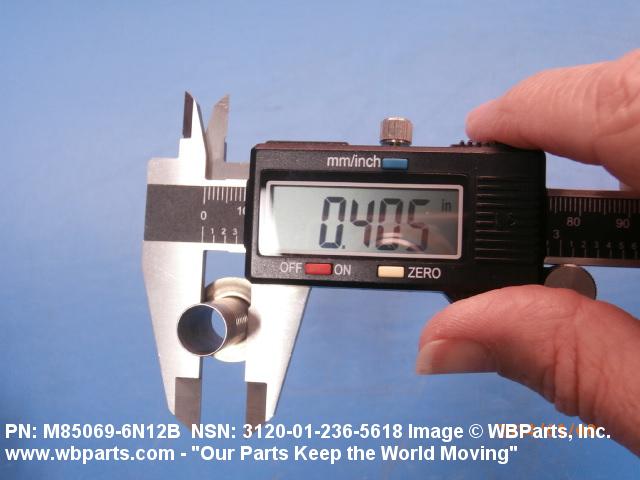

| BODY OUTSIDE DIAMETER | 0.4052 INCHES MINIMUM AND 0.4062 INCHES MAXIMUM |

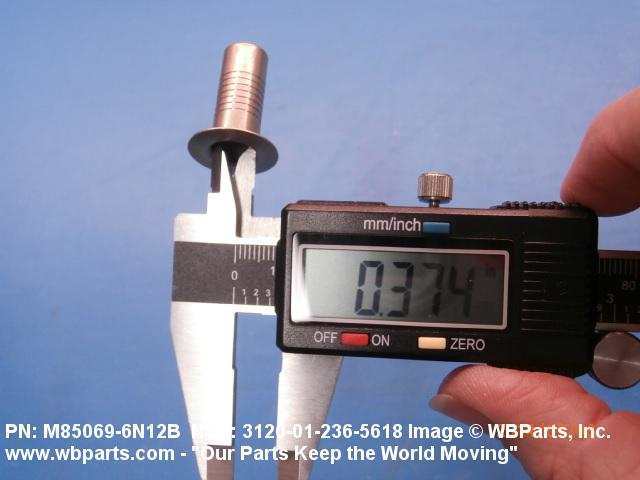

| BODY INSIDE DIAMETER | 0.3730 INCHES MINIMUM AND 0.3745 INCHES MAXIMUM |

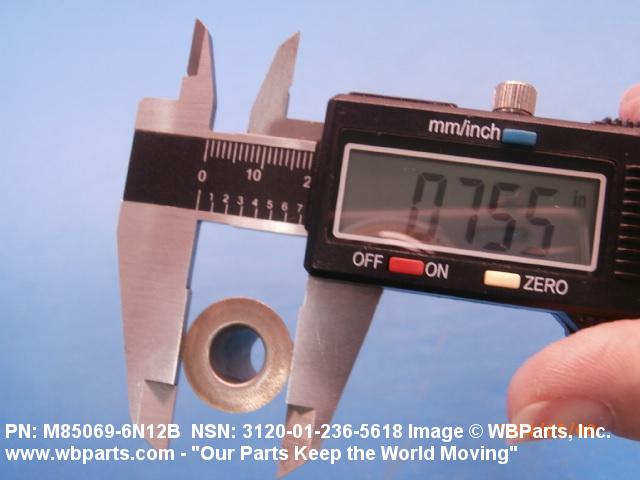

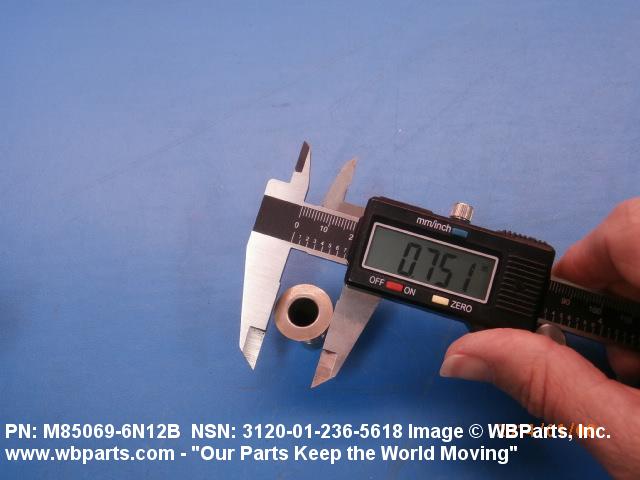

| FLANGE OUTSIDE DIAMETER | 0.7450 INCHES MINIMUM AND 0.7550 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0140 INCHES MINIMUM AND 0.0160 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |

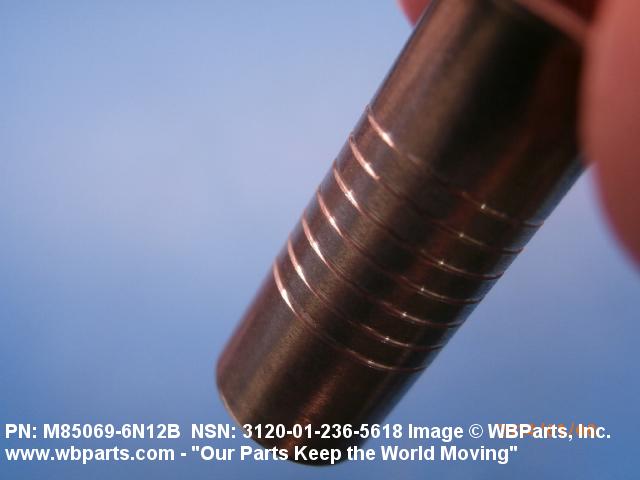

| SPECIAL FEATURES | SHANK HAS CIRCUMFERENTIAL GROOVES FOR SEALANT |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-85069 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-85069 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M85069/6N12B |
Restrictions/Controls & Freight Information | NSN 3120-01-236-5618
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
