NSN 3120-01-263-3276 BSSR22116, BSSR-22116, 361-10192-2
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-263-3276 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: BSSR22116, BSSR-22116, 361-10192-2, 3120-01-263-3276, 01-263-3276, 3120012633276, 361101922, 012633276
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 12 SEP 1987 | 01-263-3276 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

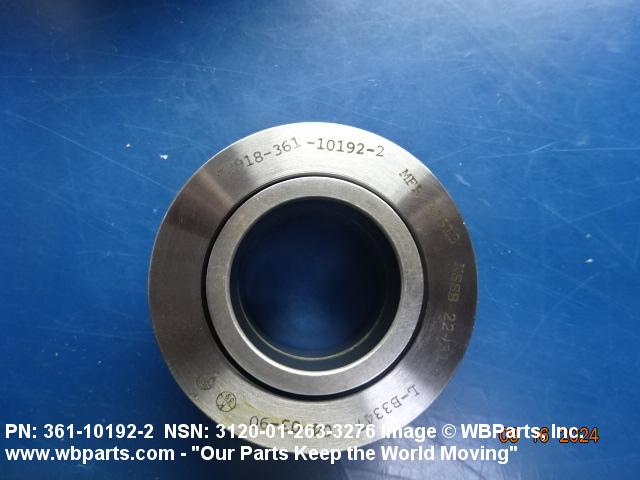

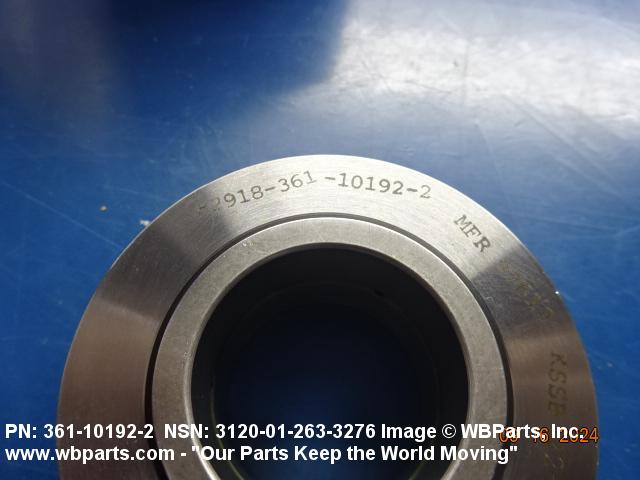

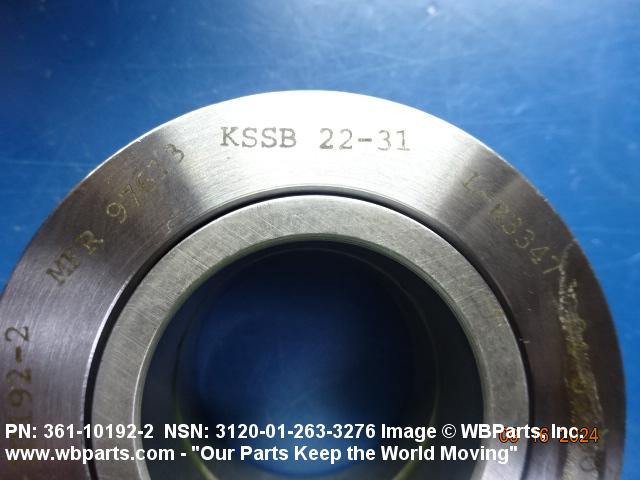

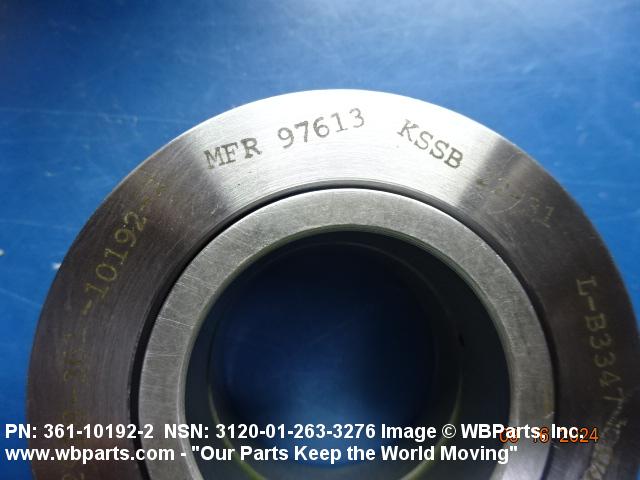

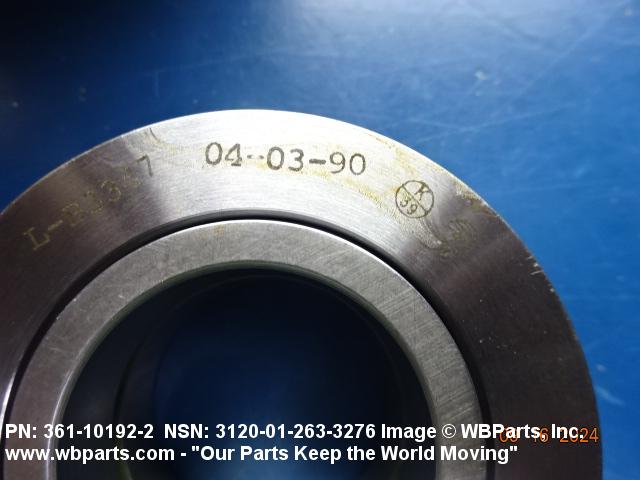

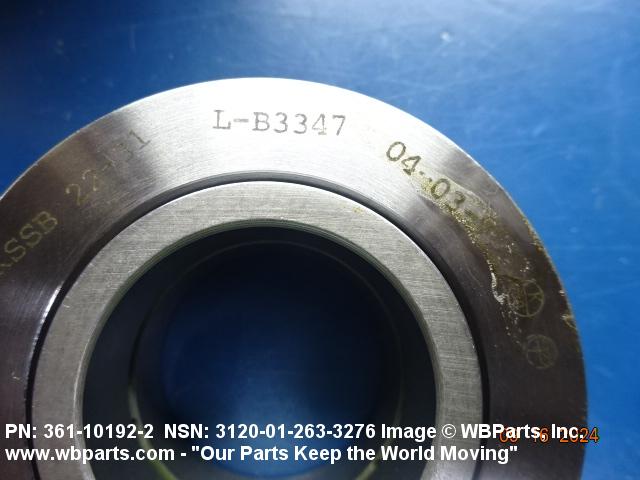

Drawings & Photos | NSN 3120-01-263-3276
Demand History | NSN 3120-01-263-3276
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 361101922 | 2024-09-257 | 4 | United States |
| 361101922 | 2024-09-247 | 4 | US |
| 3120-01-263-3276 | 2024-08-242 | 4 | United States |
| 361101922 | 2024-08-227 | 2 | United States |
| 3120-01-263-3276 | 2024-01-31 | 5 | United States |
| BSSR-22116 | 2022-01-25 | 9 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-263-3276
Related Products | NSN 3120-01-263-3276
Technical Data | NSN 3120-01-263-3276
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP XM-12 OUTER RACE MEMBER |
| SURFACE TREATMENT | CHROMIUM INNER MEMBER PASSIVATE OUTER RACE MEMBER |
| STYLE DESIGNATOR | 10B WITHOUT INSERT OR LINER WITH STAKING GROOVE |

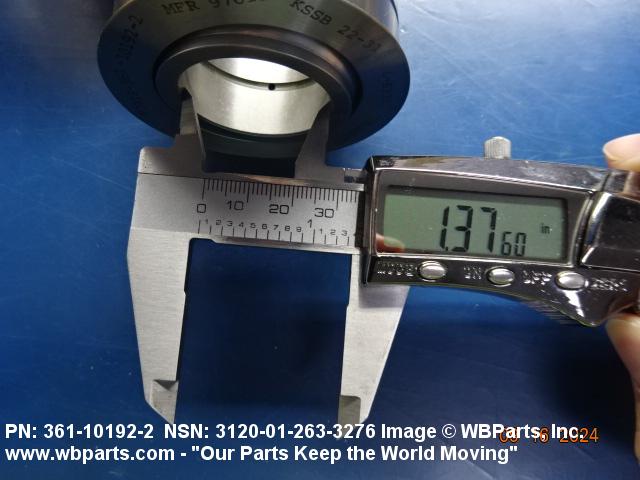

| BORE DIAMETER | 1.3815 INCHES MINIMUM AND 1.3820 INCHES MAXIMUM |

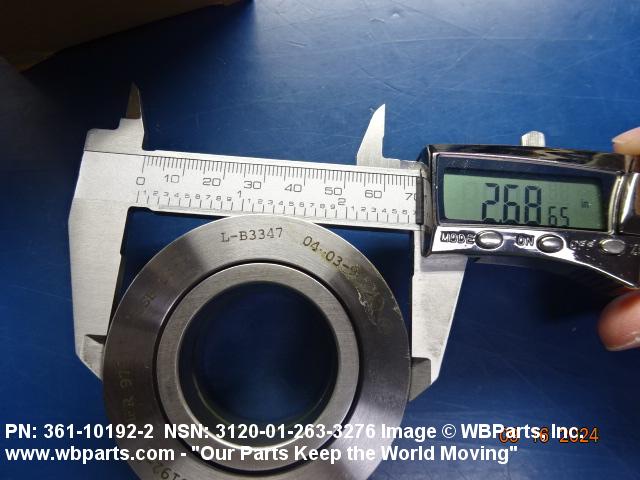

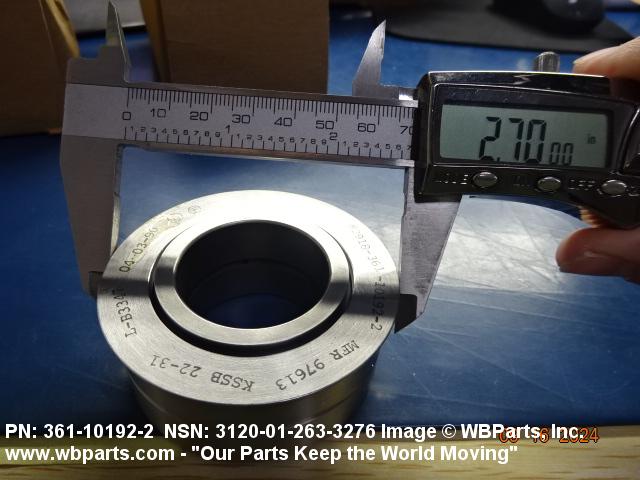

| OUTER MEMBER OUTSIDE DIAMETER | 2.7000 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 1.0350 INCHES MINIMUM AND 1.0450 INCHES MAXIMUM |

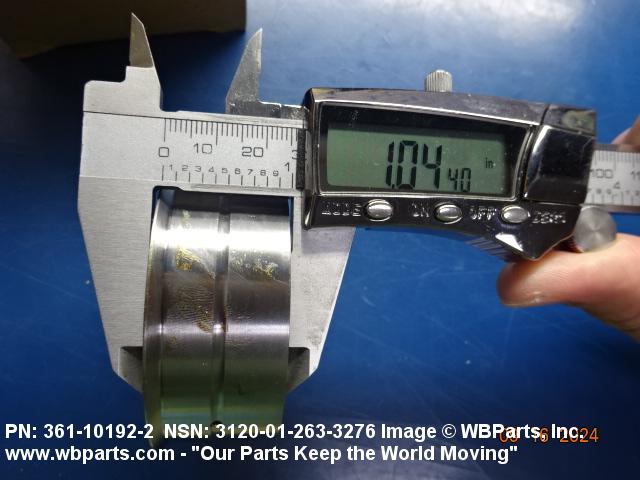

| INNER MEMBER WIDTH | 1.0940 INCHES MINIMUM AND 1.1040 INCHES MAXIMUM |
| SPECIAL FEATURES | USED ON ALCM |
| MANUFACTURERS CODE | 82918 |
| MFR SOURCE CONTROLLING REFERENCE | 361-10192-2 |
Restrictions/Controls & Freight Information | NSN 3120-01-263-3276
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-263-3276
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GF | SX:AGM-86 AIR LAUNCHED CRUISE MISSILE (ALCM) |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
