NSN 3120-01-289-5484 MS141014P, MS14101-4P, SWKN4400P
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-289-5484 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: MS141014P, MS14101-4P, SWKN4400P, SWKN-4-400P, HT4VD, HT4VL1P, KNDB433C, KNDB4-33C, KNDB433P, KNDB4-33P, KR4CNGBP, KR4-CNGBP, 0382504P, 03-825-04P, 04A0644P, 04A064-4P, 3120-01-289-5484, 01-289-5484, 3120012895484, 012895484
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 25 NOV 1988 | 01-289-5484 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

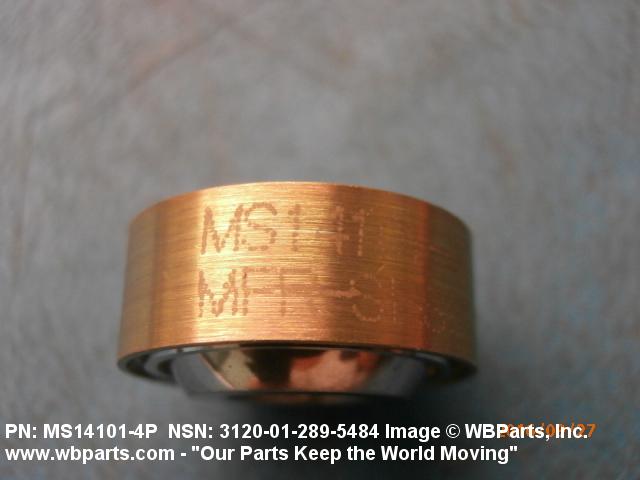

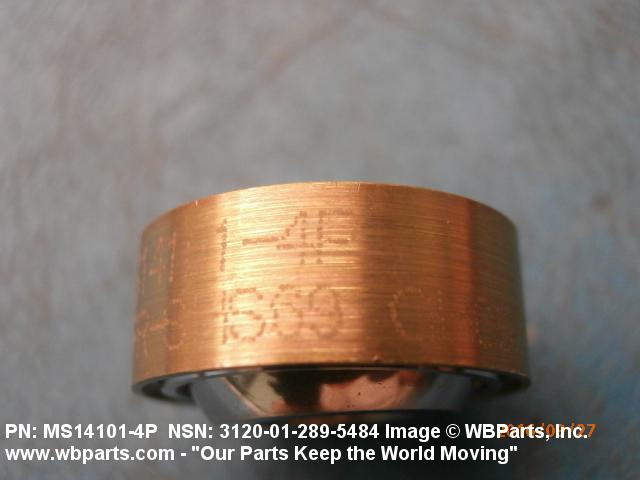

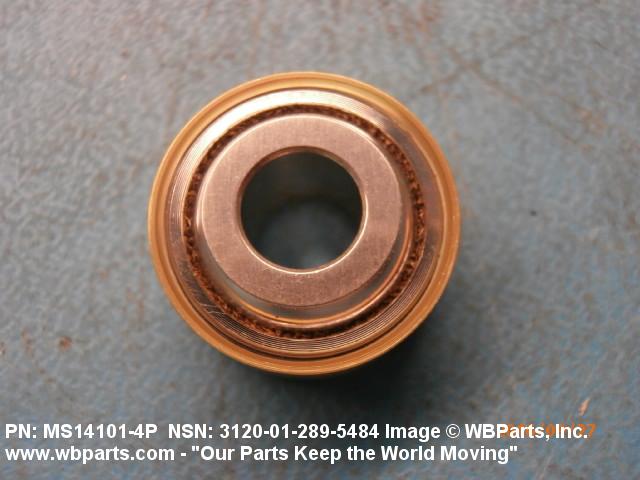

Drawings & Photos | NSN 3120-01-289-5484
Demand History | NSN 3120-01-289-5484
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-289-5484 | 2025-09-267 | 26 | DIBBS |
| 3120-01-289-5484 | 2025-09-259 | 26 | DIBBS |
| 3120-01-289-5484 | 2024-12-346 | 28 | DIBBS |
| 3120-01-289-5484 | 2023-11-316 | 26 | DIBBS |
| 3120-01-289-5484 | 2023-10-299 | 13 | DIBBS |
| 3120-01-289-5484 | 2023-09-260 | 13 | DIBBS |
| 3120-01-289-5484 | 2023-06-177 | 13 | DIBBS |
| MS141014P | 2022-04-106 | 37 | Taiwan |
| MS141014P | 2022-03-90 | 9 | Taiwan |
| MS141014P | 2022-03-90 | 38 | Taiwan |
| MS141014P | 2021-11-308 | 200 | Italy |
| MS141014P | 2016-09-267 | 53 | United States |
| MS141014P | 2015-02-41 | 50 | United States |
| 04A0644P | 2014-02-59 | 3 | US |
| MS141014P | 2014-01-27 | 25 | United States |
| 3120-01-289-5484 | 2013-11-319 | 4 | United States |
| 3120-01-289-5484 | 2013-11-318 | 20 | US |
| MS141014P | 2013-10-276 | 3 | United States |
| MS141014P | 2011-06-167 | 25 | BR |
| 3120-01-289-5484 | 2010-06-175 | 26 | DIBBS |
| 3120-01-289-5484 | 2009-09-252 | 1 | United States |
| MS141014P | 2009-09-247 | 20 | United States |
| MS141014P | 2009-04-98 | 14 | United States |
| 3120-01-289-5484 | 2007-04-92 | 37 | DIBBS |
| 3120-01-289-5484 | 2007-03-71 | 23 | DIBBS |
| 3120-01-289-5484 | 2007-02-37 | 5 | DIBBS |
Cross Reference | NSN 3120-01-289-5484
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03-825-04P | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 04A064-4P | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| HT4V(L1)P | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| HT4VD | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| KNDB4-33C | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| KNDB4-33P | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| KR4-CNGBP | 50632 | KAMATICS CORPORATION |
| MS14101-4P | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS14101-4P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SWKN-4-400P | 81376 | RBC SOUTHWEST PRODUCTS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-289-5484
Related Products | NSN 3120-01-289-5484
Technical Data | NSN 3120-01-289-5484
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 OUTER RACE MEMBER PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5630 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OUTER RACE MEMBER |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OUTER RACE MEMBER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OUTER RACE MEMBER |
| STYLE DESIGNATOR | 10A WITH INSERT AND/OR LINER WITH STAKING GROOVE |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |

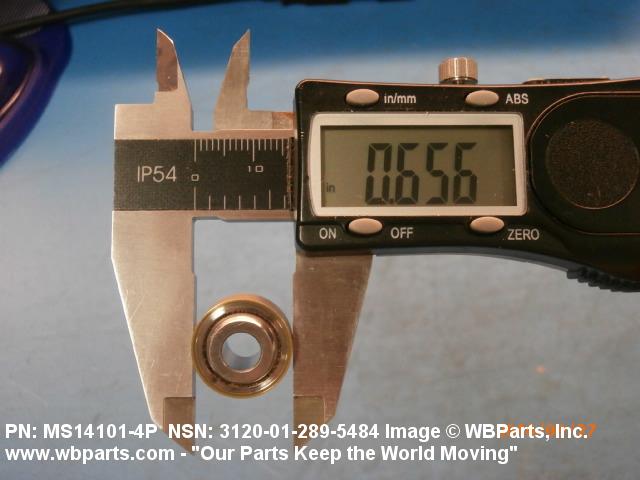

| OUTER MEMBER OUTSIDE DIAMETER | 0.6557 INCHES MINIMUM AND 0.6562 INCHES MAXIMUM |

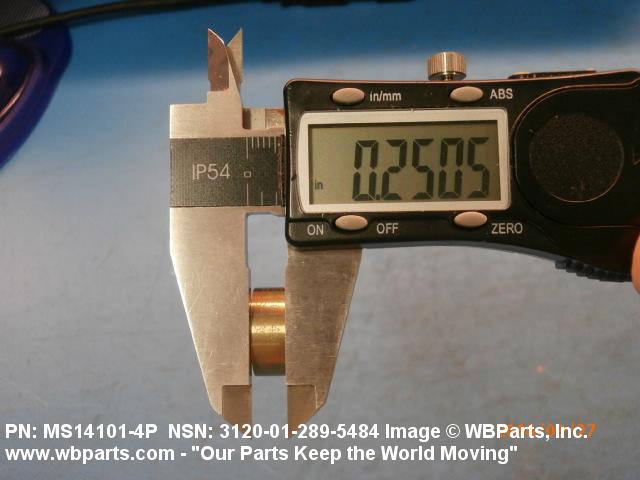

| OUTER MEMBER WIDTH | 0.2450 INCHES MINIMUM AND 0.2550 INCHES MAXIMUM |

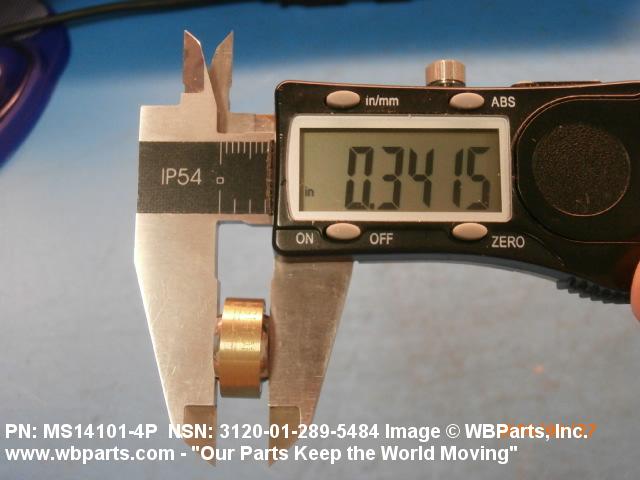

| INNER MEMBER WIDTH | 0.3410 INCHES MINIMUM AND 0.3430 INCHES MAXIMUM |
| LUBRICATION FEATURE | SELF-LUBRICATING LINER RACE LINER |
| STATIC RADIAL LOAD RATING | 6040 POUNDS |
| SPECIAL FEATURES | PASSIVATION OPTIONAL ON BALL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS14101-4P |
Restrictions/Controls & Freight Information | NSN 3120-01-289-5484
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
