NSN 3120-01-313-6374 NAS733200, NAS73-3-200, 01-313-6374
Product Details | SLEEVE BUSHING
3120-01-313-6374 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: NAS733200, NAS73-3-200, 3120-01-313-6374, 01-313-6374, 3120013136374, 013136374
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01-313-6374 | 13206 ( BUSHING, SLEEVE ) |

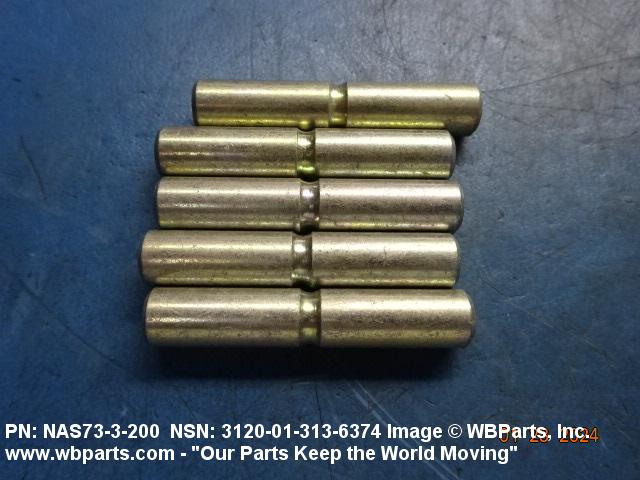

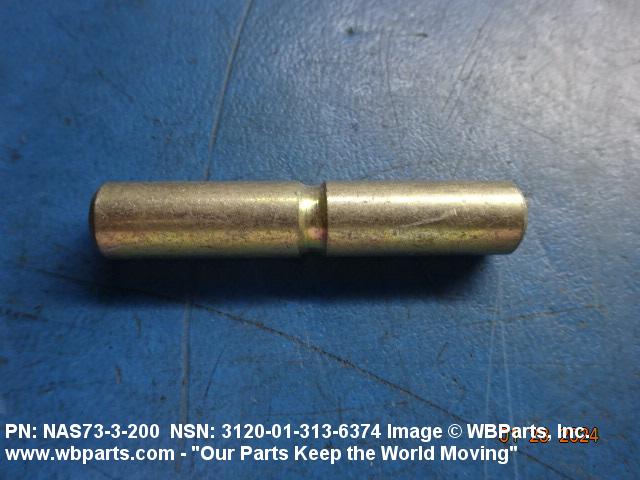

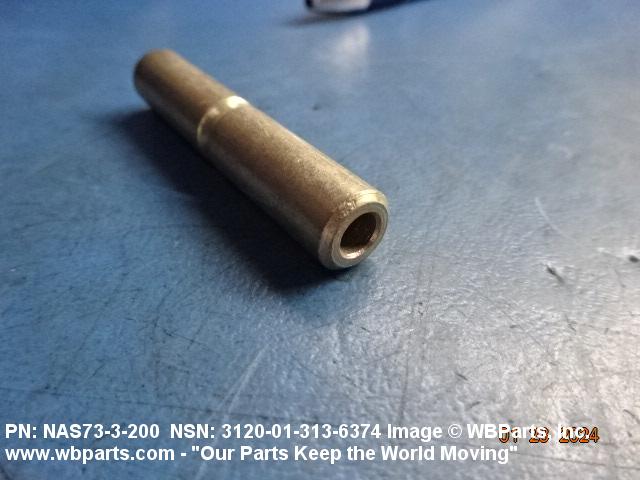

Drawings & Photos | NSN 3120-01-313-6374
Demand History | NSN 3120-01-313-6374
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-313-6374 | 2024-01-15 | 6 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-313-6374
Technical Data | NSN 3120-01-313-6374
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY II,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 17C SOLID |

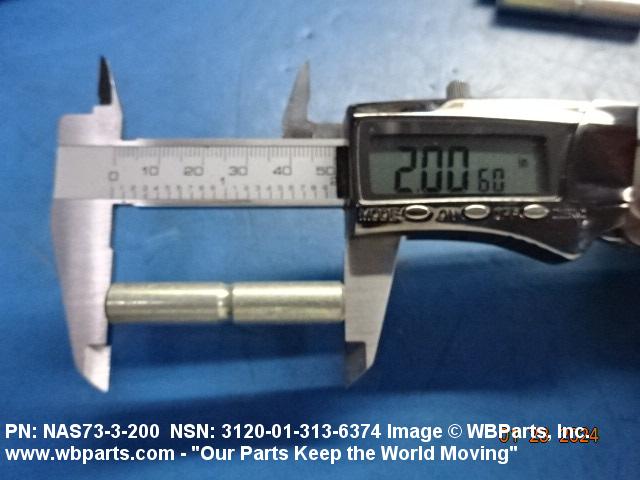

| OVERALL LENGTH | 2.0050 INCHES MINIMUM AND 2.0100 INCHES MAXIMUM |

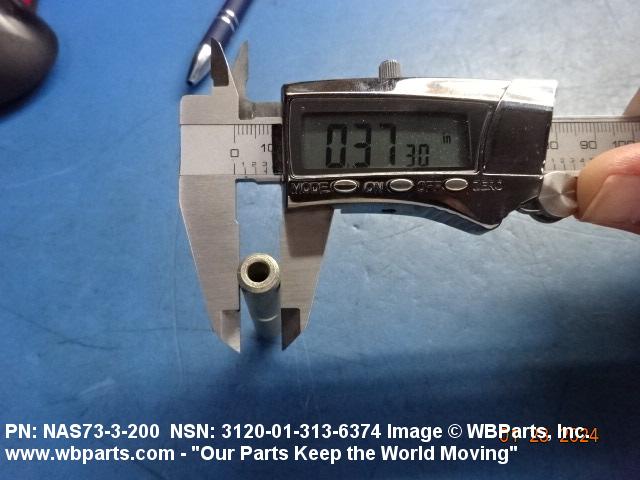

| BODY OUTSIDE DIAMETER | 0.3720 INCHES MINIMUM AND 0.3730 INCHES MAXIMUM |

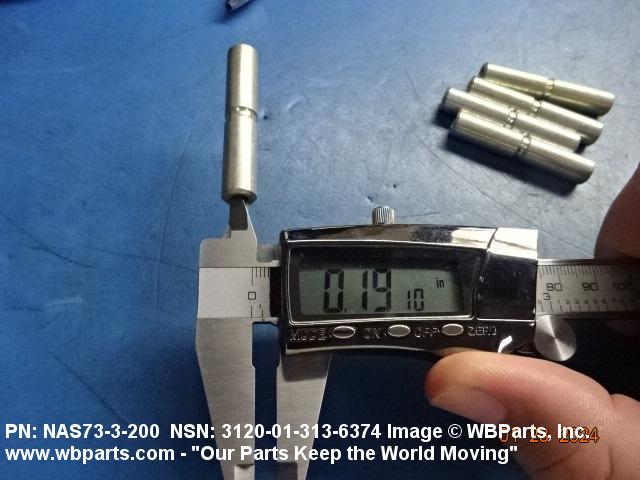

| BODY INSIDE DIAMETER | 0.1895 INCHES MINIMUM AND 0.1910 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| SPECIFICATION/STANDARD DATA | 80205-NAS73 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0210 INCHES MINIMUM AND 0.0410 INCHES MAXIMUM |
| (NON-CORE DATA) CHAMFER ANGLE | 40.0 DEGREES MINIMUM AND 50.0 DEGREES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3120-01-313-6374
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
