NSN 3120-01-331-9760 MS141044C, MS14104-4C, 01-331-9760
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-331-9760 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: MS141044C, MS14104-4C, 3120-01-331-9760, 01-331-9760, 3120013319760, 013319760
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 31 DEC 1990 | 01-331-9760 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

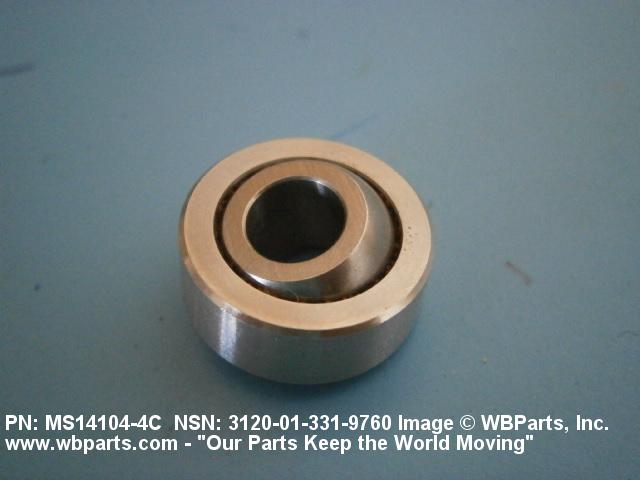

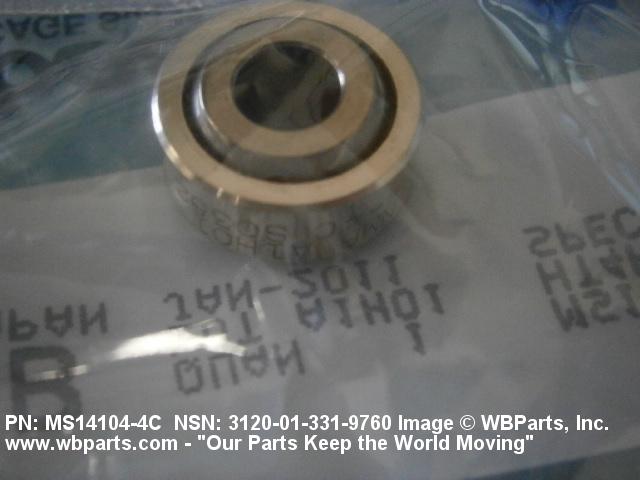

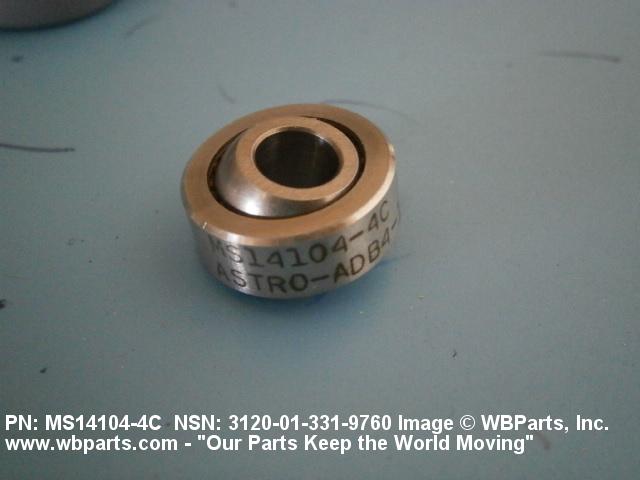

Drawings & Photos | NSN 3120-01-331-9760
Demand History | NSN 3120-01-331-9760
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-331-9760 | 2025-11-307 | 10 | DIBBS |
| MS141044C | 2020-11-316 | 10 | US |
| 3120-01-331-9760 | 2020-04-113 | 40 | US |
| 3120-01-331-9760 | 2011-12-335 | 5 | United States |
| 3120-01-331-9760 | 2011-12-335 | 4 | United States |
| 3120-01-331-9760 | 2011-12-335 | 5 | United States |
| 3120-01-331-9760 | 2007-09-247 | 44 | Turkey |
Cross Reference | NSN 3120-01-331-9760
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS14104-4C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-331-9760
Technical Data | NSN 3120-01-331-9760
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP XM-13 INNER MEMBER STEEL COMP 630 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5629H1000,PH13-8MO ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS5643,17-4PH ASSN STD SINGLE MATERIAL RESPONSE OUTER RING |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 23.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER |
| SURFACE TREATMENT | PASSIVATE INNER MEMBER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,440C FED SPEC SINGLE TREATMENT RESPONSE INNER MEMBER |
| STYLE DESIGNATOR | 11A WITH INSERT AND/OR LINER |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.6557 INCHES MINIMUM AND 0.6562 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.2450 INCHES MINIMUM AND 0.2550 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.3410 INCHES MINIMUM AND 0.3430 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 6040 POUNDS |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS14104-4C |
Restrictions/Controls & Freight Information | NSN 3120-01-331-9760
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
