NSN 3120-01-385-6451 S61206261523, S6120-62615-23, 01-385-6451
Product Details | SLEEVE BUSHING
3120-01-385-6451 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: S61206261523, S6120-62615-23, 3120-01-385-6451, 01-385-6451, 3120013856451, 013856451
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 15 JAN 1994 | 01-385-6451 | 13206 ( BUSHING, SLEEVE ) |

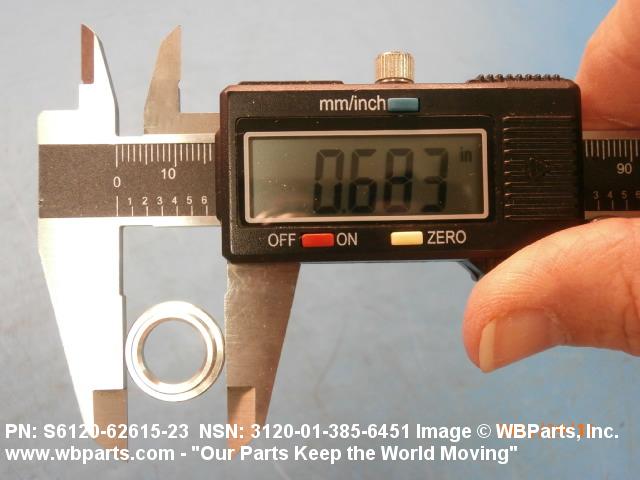

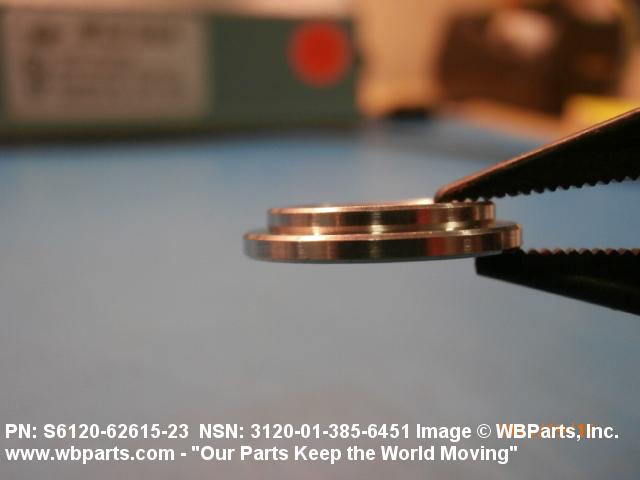

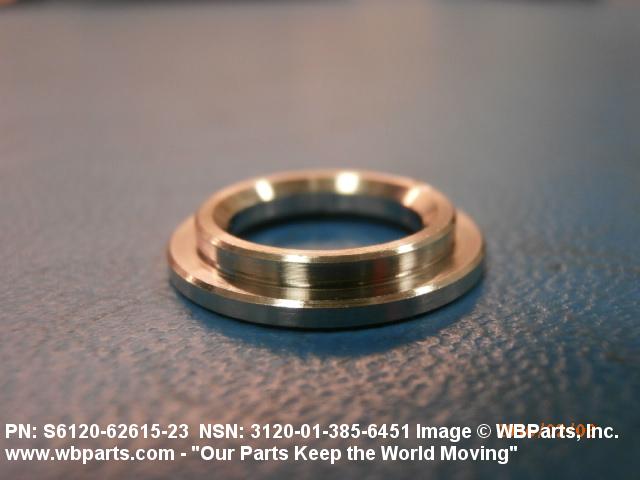

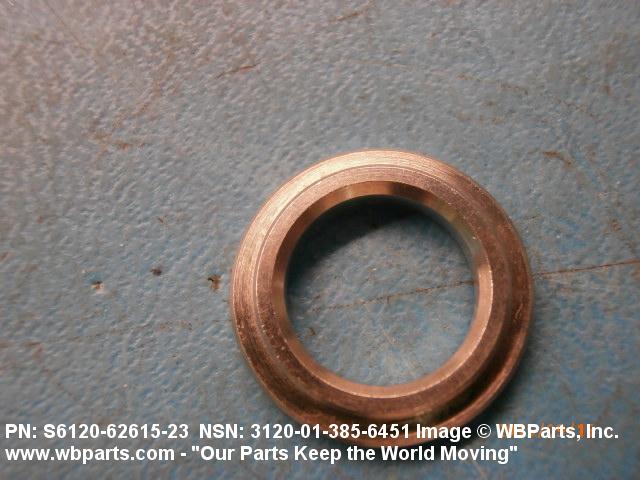

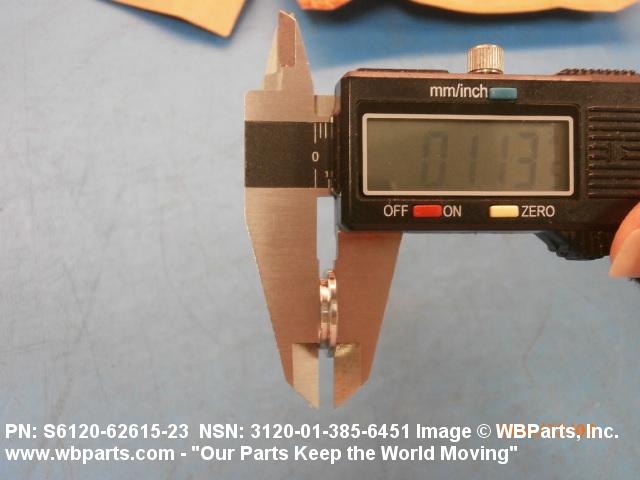

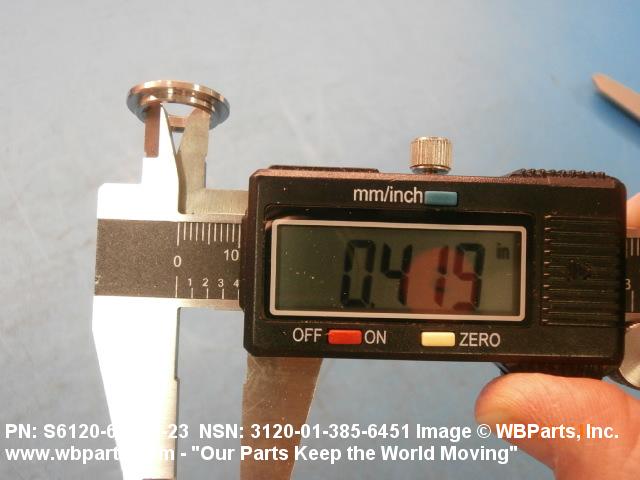

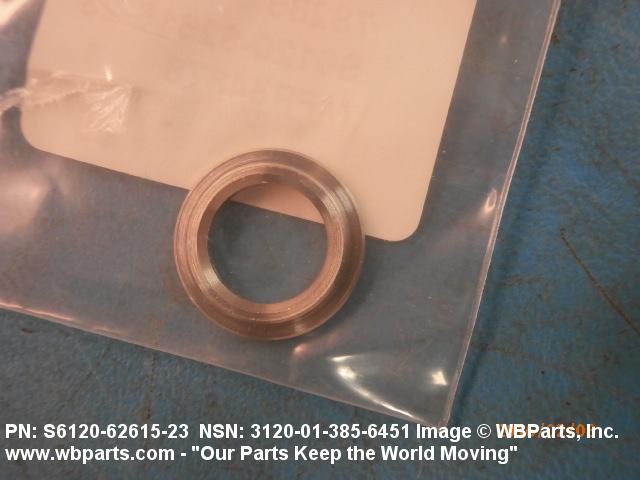

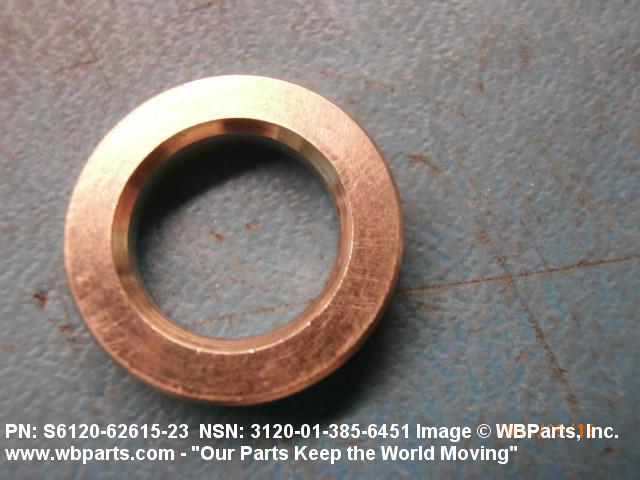

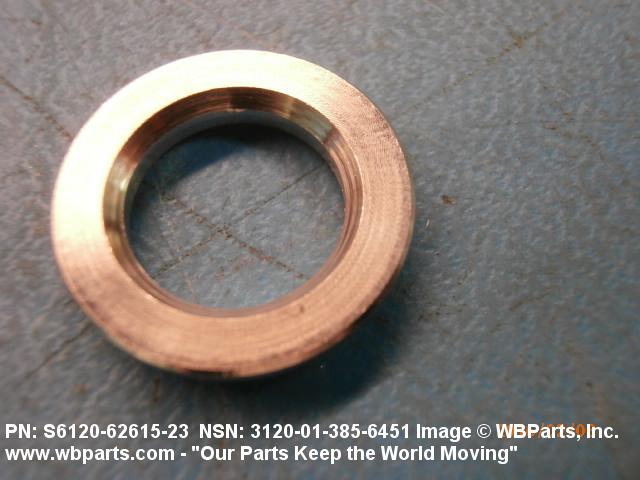

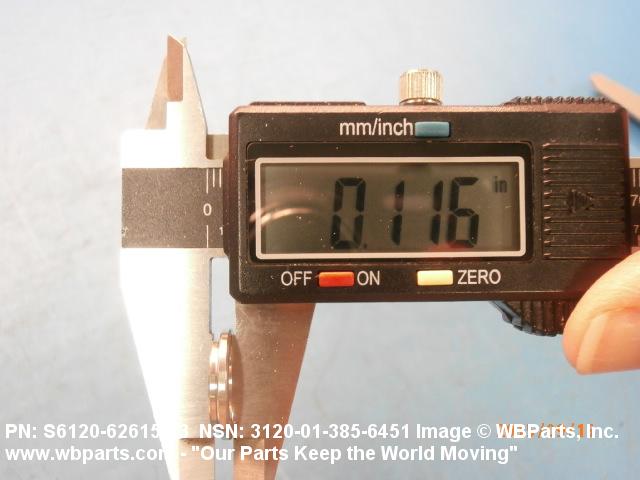

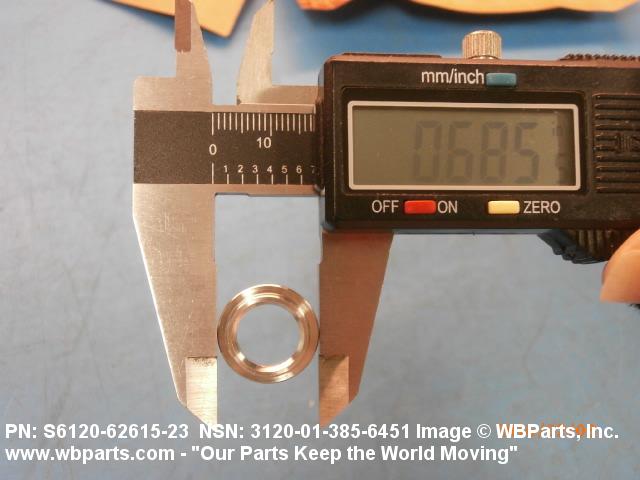

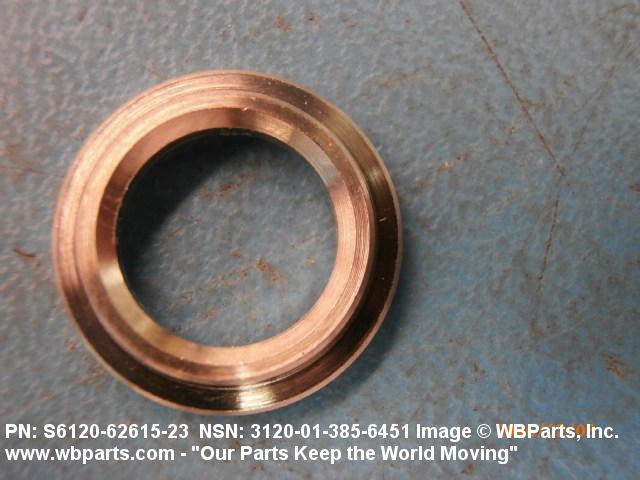

Drawings & Photos | NSN 3120-01-385-6451
Demand History | NSN 3120-01-385-6451
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-385-6451 | 2015-06-160 | 30 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-385-6451
Technical Data | NSN 3120-01-385-6451
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 321 OVERALL |
| STYLE DESIGNATOR | 17C SOLID |
| OVERALL LENGTH | 0.2500 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.7500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3120-01-385-6451
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
