NSN 3120-01-386-1092 MS141037A, MS14103-7A, 01-386-1092
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-386-1092 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: MS141037A, MS14103-7A, 3120-01-386-1092, 01-386-1092, 3120013861092, 013861092
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 27 JAN 1994 | 01-386-1092 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

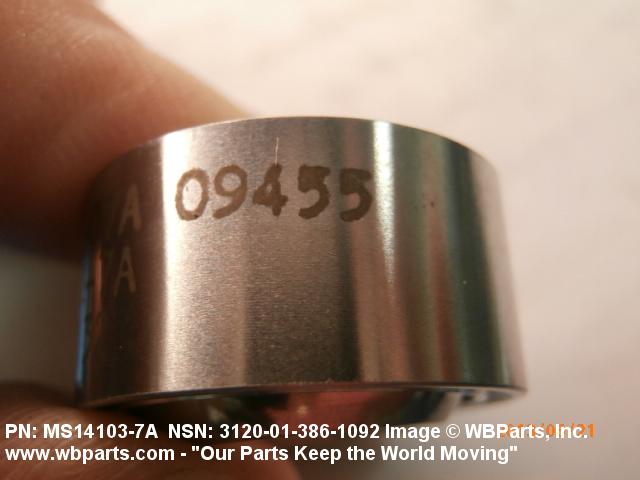

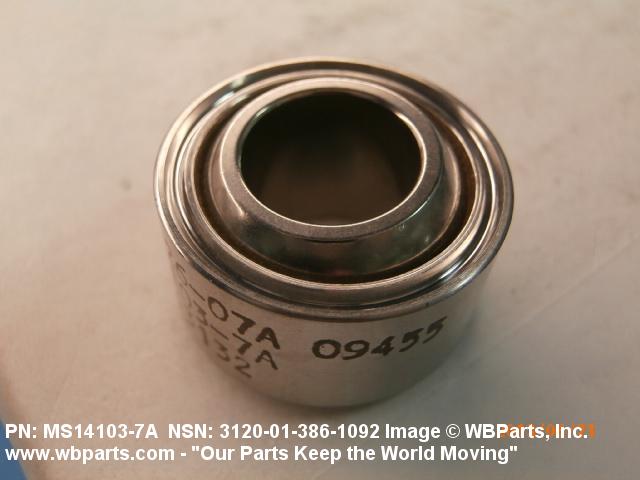

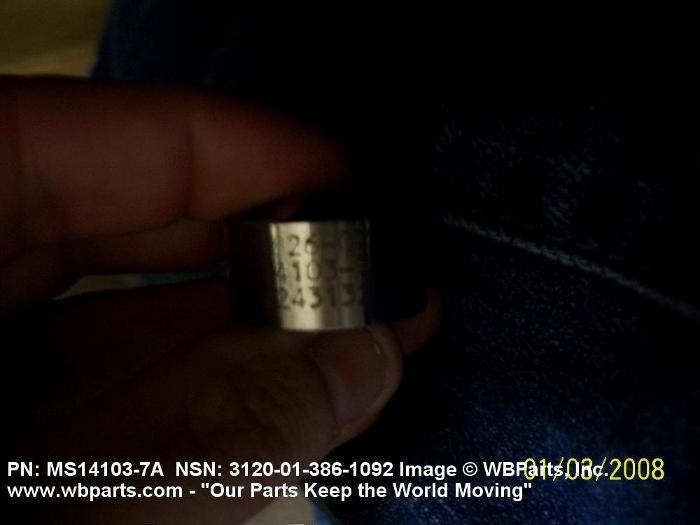

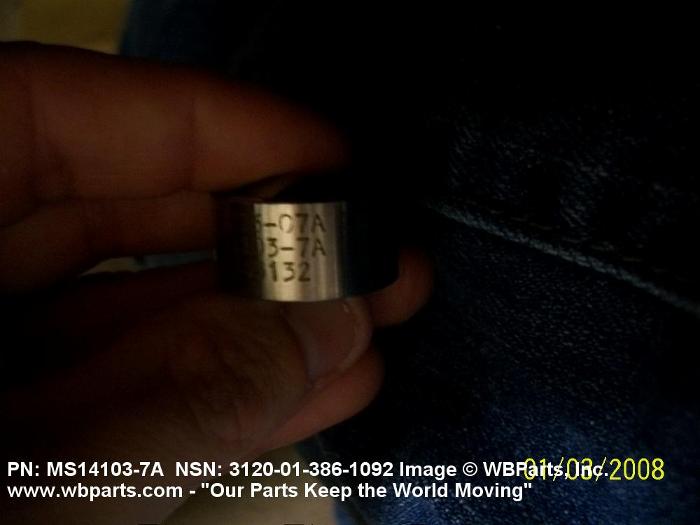

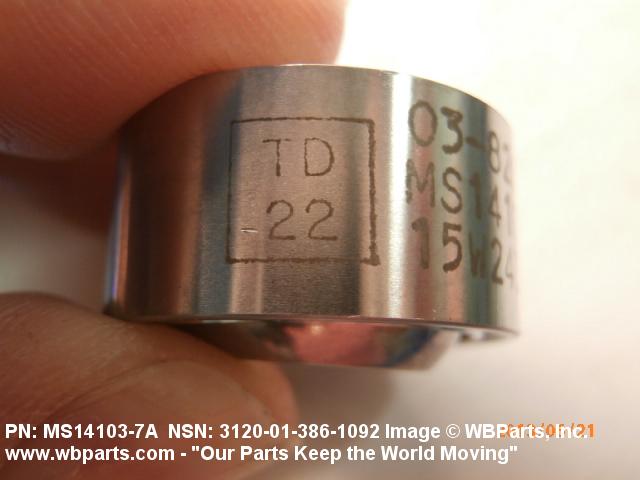

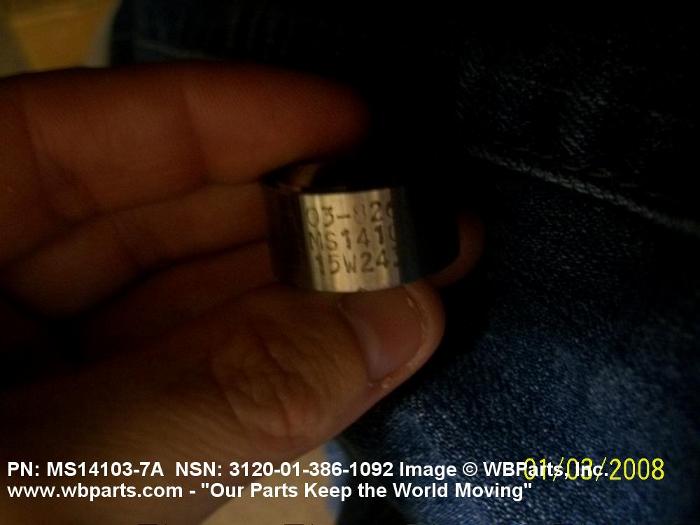

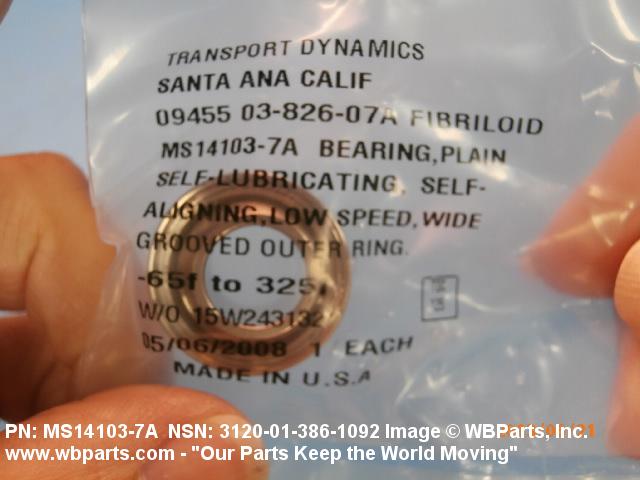

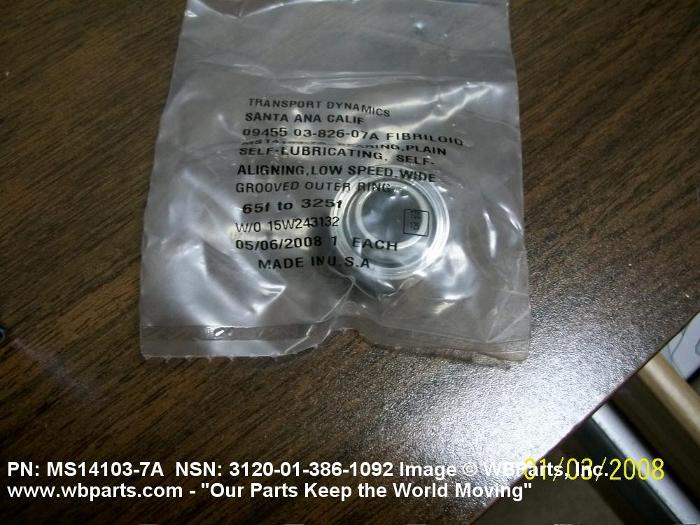

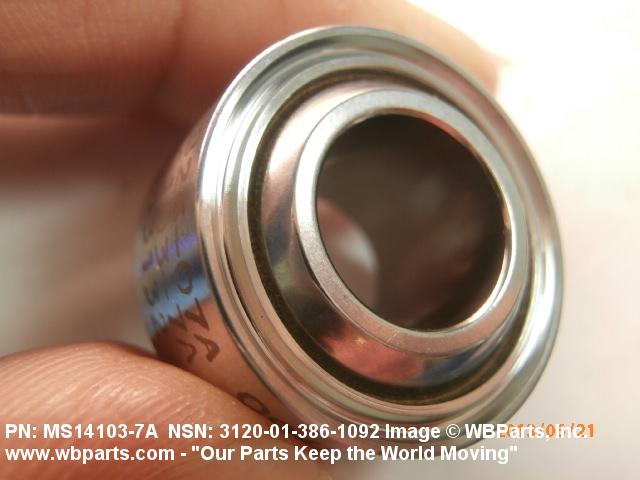

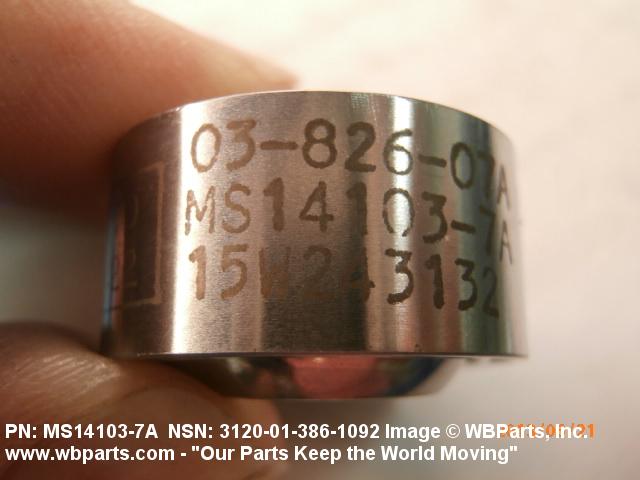

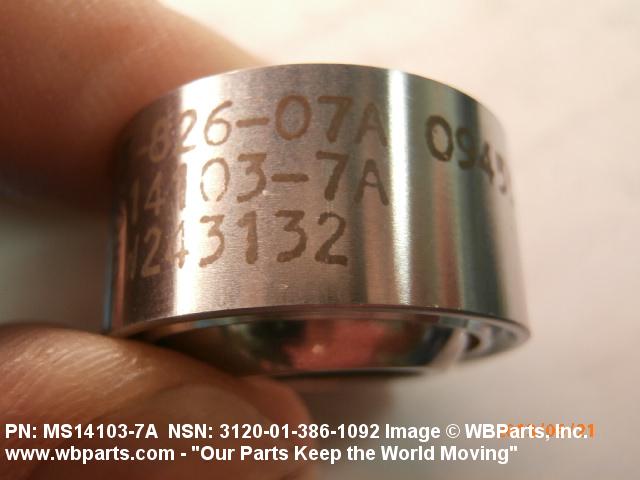

Drawings & Photos | NSN 3120-01-386-1092
Demand History | NSN 3120-01-386-1092
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS141037A | 2022-11-307 | 10 | US |
| MS141037A | 2018-03-81 | 90 | us |
| 3120-01-386-1092 | 2015-01-22 | 100 | IT |
| 3120-01-386-1092 | 2015-01-22 | 200 | IT |
| 3120-01-386-1092 | 2013-10-290 | 70 | IT |
| 3120-01-386-1092 | 2013-06-161 | 30 | United States |
| MS141037A | 2012-11-324 | 4 | US |
| MS141037A | 2012-04-108 | 20 | MY |
| MS141037A | 2012-03-68 | 20 | US |
| MS141037A | 2011-03-66 | 10 | United States |
| 3120-01-386-1092 | 2011-03-63 | 20 | US |
| MS141037A | 2011-03-62 | 20 | US |
| MS141037A | 2010-09-273 | 3 | US |
Cross Reference | NSN 3120-01-386-1092
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS14103-7A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-386-1092
Technical Data | NSN 3120-01-386-1092
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER |
| STYLE DESIGNATOR | 10A WITH INSERT AND/OR LINER WITH STAKING GROOVE |

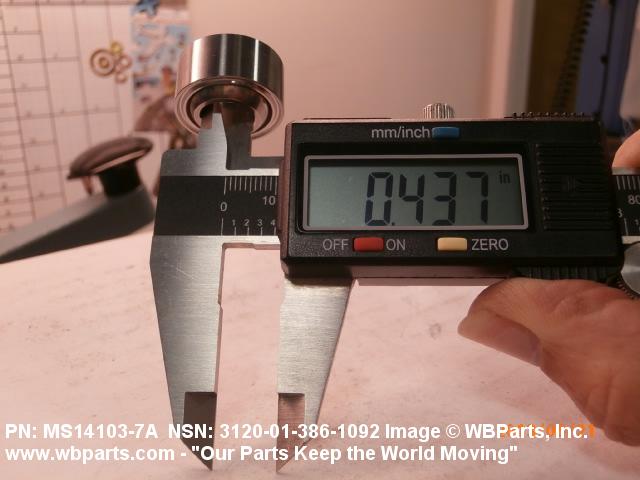

| BORE DIAMETER | 0.4370 INCHES MINIMUM AND 0.4375 INCHES MAXIMUM |

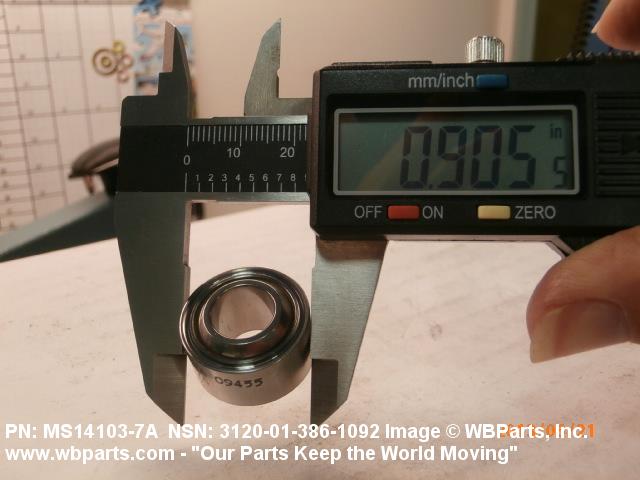

| OUTER MEMBER OUTSIDE DIAMETER | 0.9057 INCHES MINIMUM AND 0.9062 INCHES MAXIMUM |

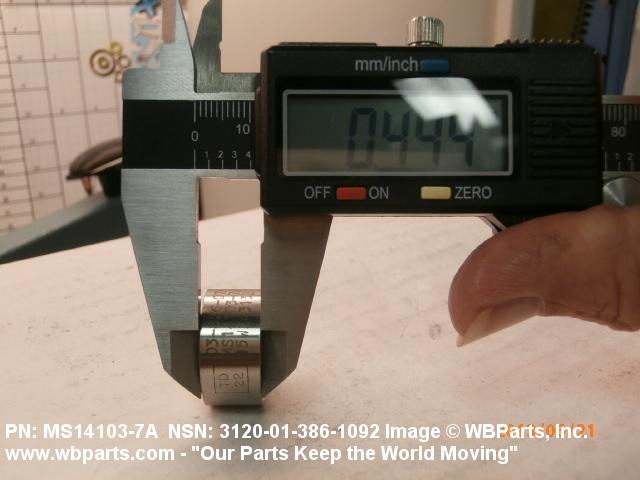

| OUTER MEMBER WIDTH | 0.4420 INCHES NOMINAL |

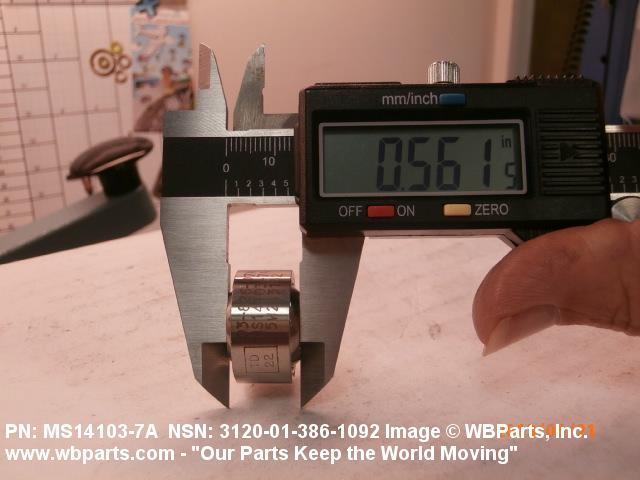

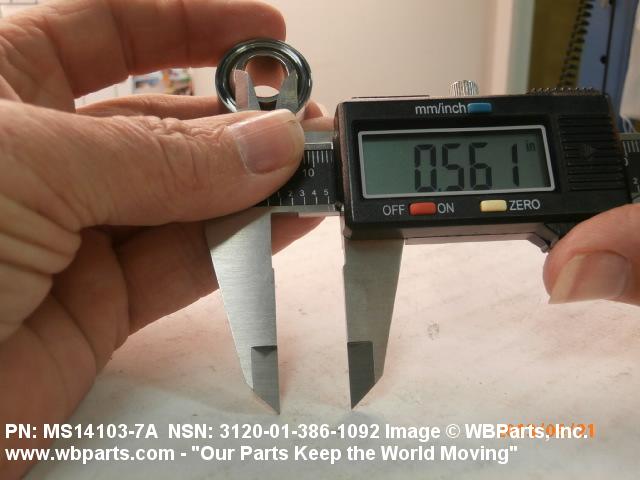

| INNER MEMBER WIDTH | 0.5600 INCHES MINIMUM AND 0.5620 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 19700 POUNDS |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS14103-7A |
Restrictions/Controls & Freight Information | NSN 3120-01-386-1092
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
