NSN 3120-01-459-2364 RMLF6279, RMLF-6-279, 4D00156
Product Details | TRACK ROLLER PLAIN BEARING
3120-01-459-2364 A detachable assembly consisting of an outer and inner ring, designed for use in a track roller or similar application. It is used to carry a load and reduce sliding friction. It does not employ rolling elements, but may incorporate non-metallic liners or sleeves to aid in reducing friction and/or providing lubrication. See also BEARING, BALL, TRACK ROLLER; and BEARING, ROLLER, TRACK ROLLER. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: RMLF6279, RMLF-6-279, 4D00156, 4D0015-6, 3120-01-459-2364, 01-459-2364, 3120014592364, 014592364
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 25 SEP 1998 | 01-459-2364 | 42389 ( BEARING, PLAIN, TRACK ROLLER ) |
Drawings & Photos | NSN 3120-01-459-2364
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-459-2364
Technical Data | NSN 3120-01-459-2364
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 INNER MEMBER STEEL COMP XM-16 OUTER RING PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM OUTSIDE DIAMETER SURFACE OF BODY 55.0 ROCKWELL C MINIMUM AND 60.0 ROCKWELL C MAXIMUM RACE LINER |

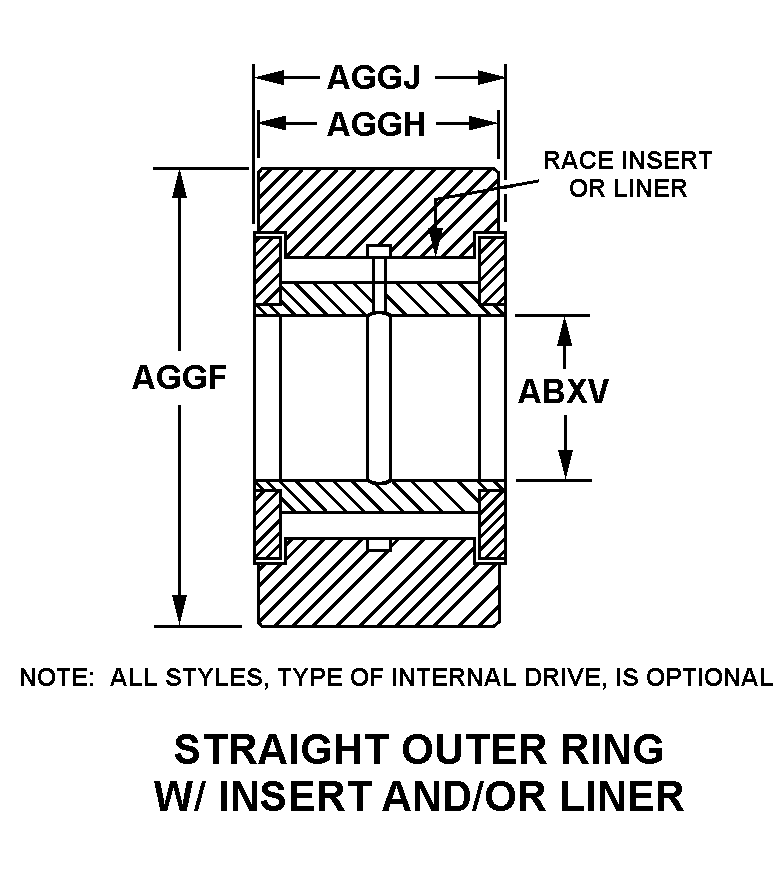

| STYLE DESIGNATOR | 38A STRAIGHT OUTER RING W/INSERT AND/OR LINER |
| BORE DIAMETER | 0.3745 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 1.0615 INCHES MINIMUM AND 1.0625 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.3700 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4950 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | C-17A |
Restrictions/Controls & Freight Information | NSN 3120-01-459-2364
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3120-01-459-2364
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
