NSN 3120-01-470-8316 KRP149603T, KRP149603TC, 01-470-8316
Product Details | CAM FOLLOWER PLAIN BEARING
3120-01-470-8316 A detachable assembly, which provides rolling contact with a cam or similar device, and converts reciprocating or oscillating motion to linear motion. The assembly consists of an outer ring and and integral stud. It does not employ rolling elements but may incorporate nonmetallic liners or sleeves to aid in reducing friction and/or providing lubrication. See also CAM FOLLOWER, NEEDLE BEARING.
Part Alternates: KRP149603T, KRP149603TC, 3120-01-470-8316, 01-470-8316, 3120014708316, 014708316
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 11 JAN 2000 | 01-470-8316 | 42390 ( BEARING, PLAIN, CAM FOLLOWER ) |
Drawings & Photos | NSN 3120-01-470-8316
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-470-8316
Technical Data | NSN 3120-01-470-8316
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5663 NATIONAL SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CHROMIUM RACE INSERT CHROMIUM ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-C-320, TY-II, CL-2 FED SPEC 1ST TREATMENT RESPONSE RACE INSERT QQ-C-320, TY-II, CL-2 FED SPEC 1ST TREATMENT RESPONSE ROD END BODY |

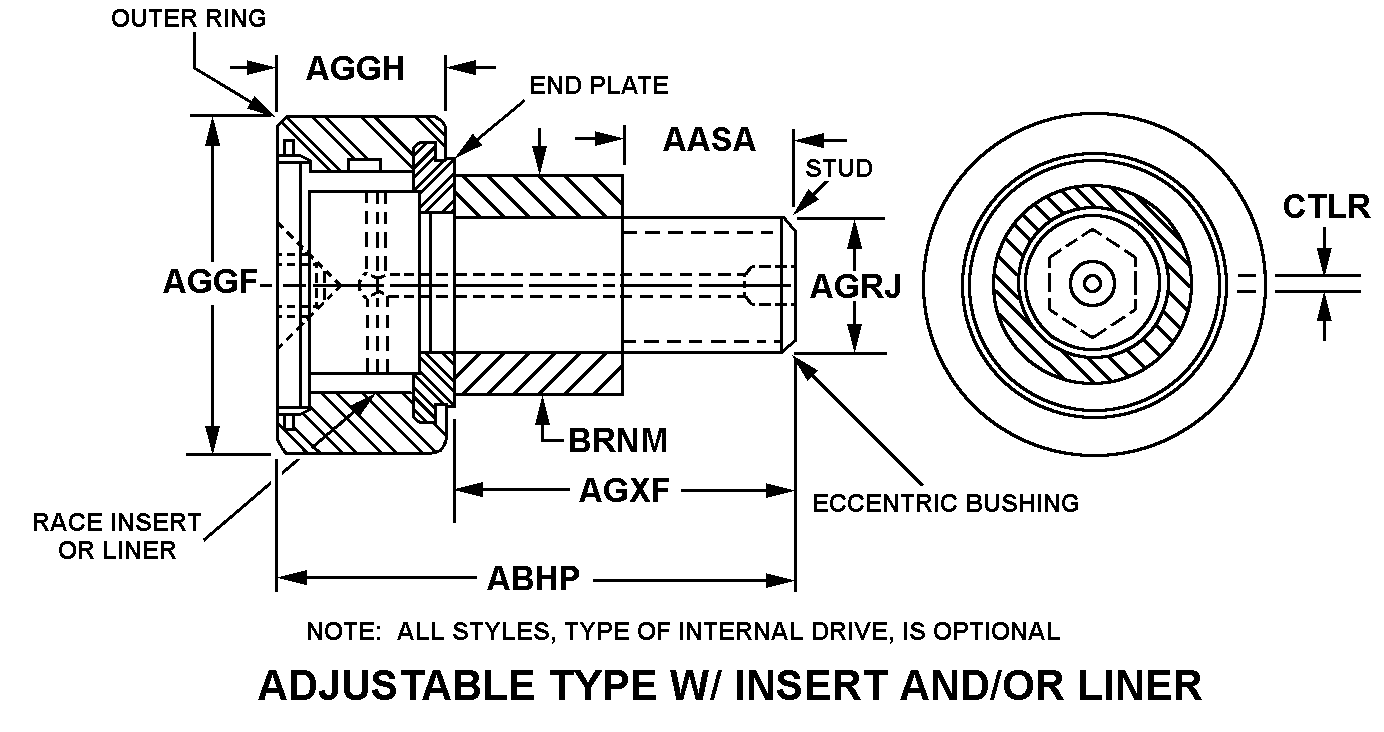

| STYLE DESIGNATOR | 37A ADJUSTABLE TYPE W/INSERT AND/OR LINER |
| OVERALL LENGTH | 1.0390 INCHES NOMINAL |
| OUTER MEMBER OUTSIDE DIAMETER | 0.9554 INCHES MINIMUM AND 0.9567 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.3540 INCHES NOMINAL |
| STUD LENGTH | 0.6772 INCHES MINIMUM AND 0.6850 INCHES MAXIMUM |
| CAM END DIAMETER | 0.2947 INCHES MINIMUM AND 0.2953 INCHES MAXIMUM |
| SHANK STYLE | 1 EXTERNALLY THREADED |
| THREAD SERIES DESIGNATOR | MJ |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | RADIAL ULTIMATE LOAD: 2320 LBS; MAX OPERTAING LOAD: 1624 LBS; MAX OPERATING TEMPERATURE: 626 DEG F |
Restrictions/Controls & Freight Information | NSN 3120-01-470-8316
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
