NSN 3120-01-491-4872 MS141016K, MS14101-6K, 01-491-4872
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-491-4872 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: MS141016K, MS14101-6K, 3120-01-491-4872, 01-491-4872, 3120014914872, 014914872
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 23 OCT 2001 | 01-491-4872 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

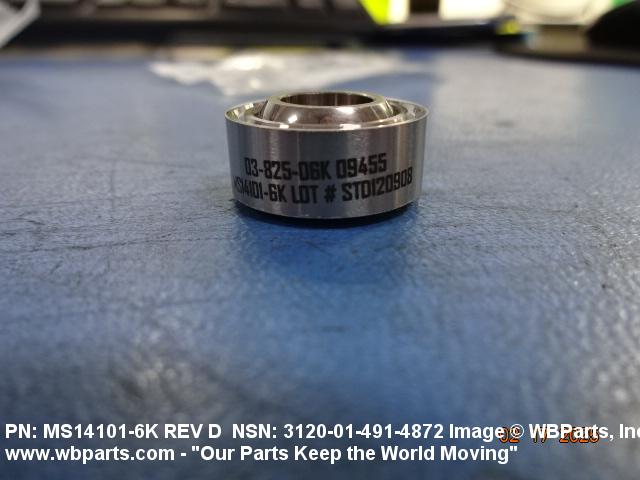

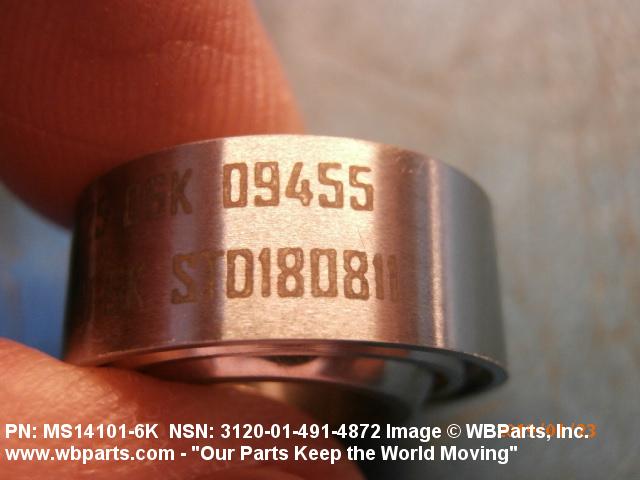

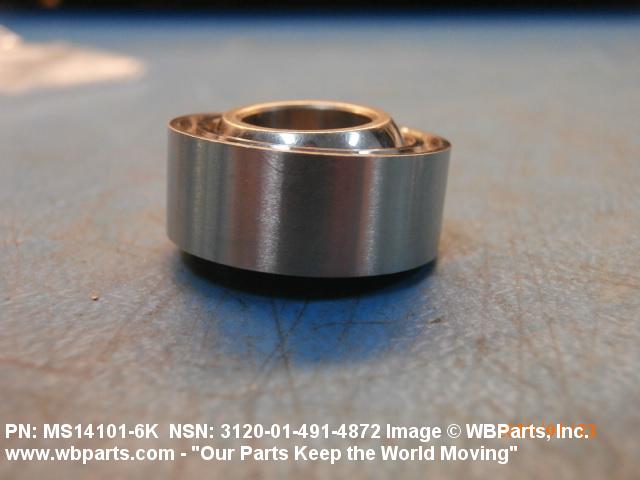

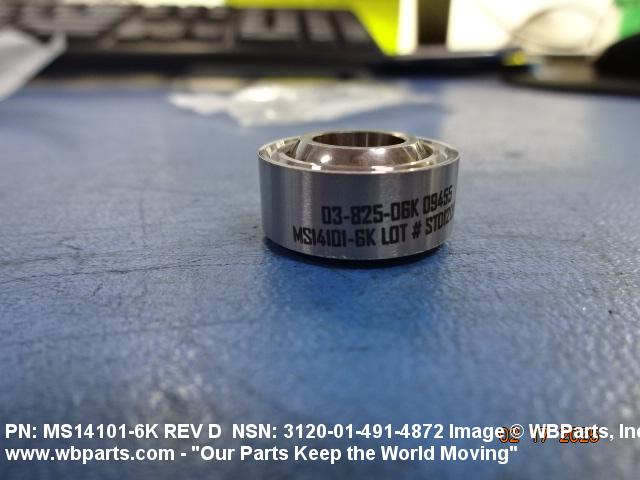

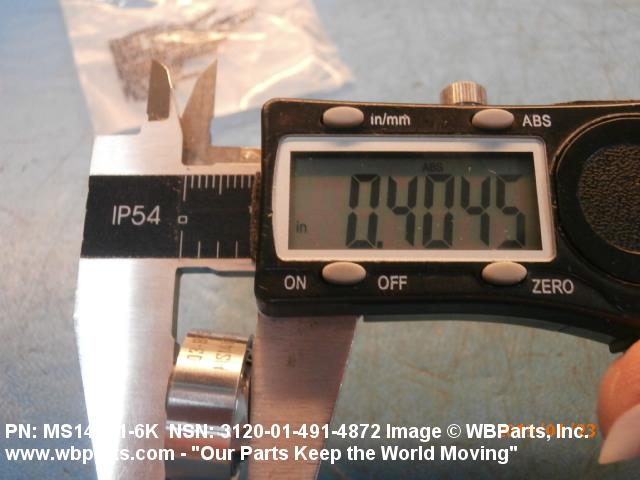

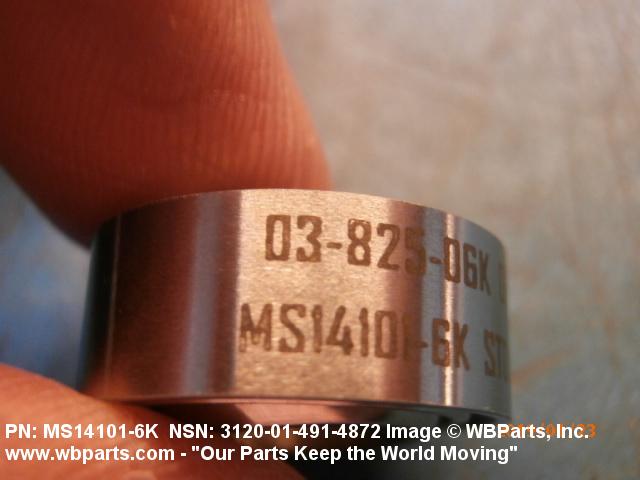

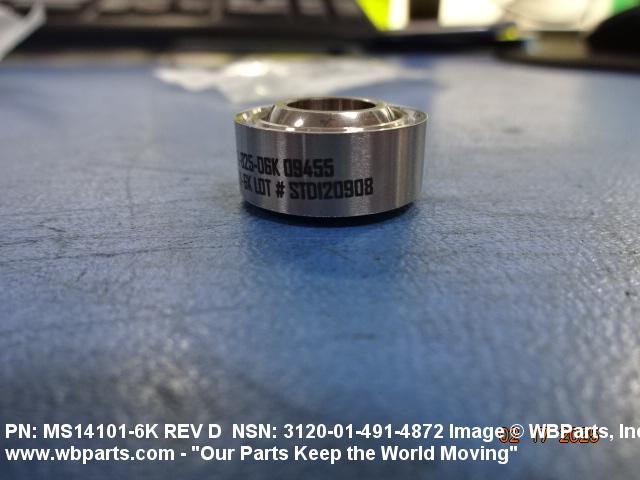

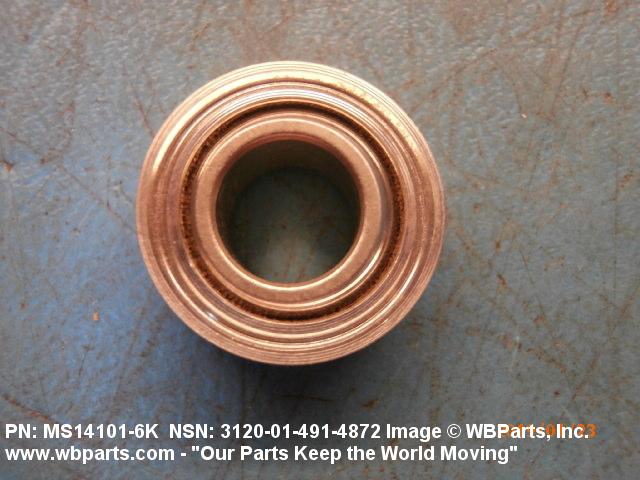

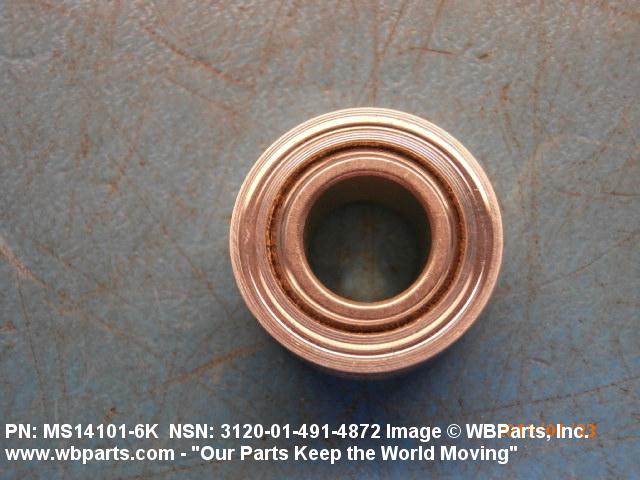

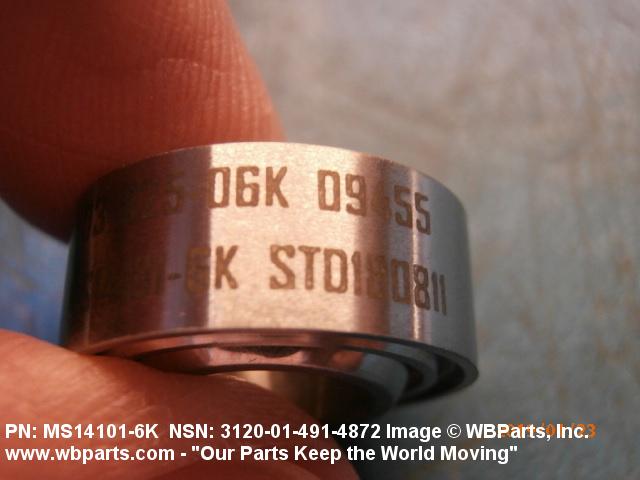

Drawings & Photos | NSN 3120-01-491-4872
Demand History | NSN 3120-01-491-4872
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-491-4872 | 2025-11-324 | 52 | DIBBS |
| 3120-01-491-4872 | 2025-01-30 | 1 | Australia |
| 3120-01-491-4872 | 2024-07-193 | 122 | DIBBS |
| 3120-01-491-4872 | 2024-03-84 | 50000 | DIBBS |
| 3120-01-491-4872 | 2023-05-150 | 150 | United States |
| MS141016K | 2022-08-216 | 1 | CO |
| 3120-01-491-4872 | 2022-03-75 | 4 | US |
| 3120-01-491-4872 | 2019-04-98 | 40 | US |
| MS141016K | 2019-01-09 | 5 | Canada |
| 3120-01-491-4872 | 2018-07-197 | 150 | UK |
| 3120-01-491-4872 | 2018-07-197 | 150 | UK |
| 3120-01-491-4872 | 2014-01-25 | 2 | MX |
Cross Reference | NSN 3120-01-491-4872
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS14101-6K | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-491-4872
Technical Data | NSN 3120-01-491-4872
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER PLASTIC POLYTETRAFLUOROETHYLENE RACE LINER |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER 28.0 ROCKWELL C MINIMUM AND 37.0 ROCKWELL C MAXIMUM OUTER RACE MEMBER |
| SURFACE TREATMENT | ANODIZE INNER MEMBER |
| STYLE DESIGNATOR | 10A WITH INSERT AND/OR LINER WITH STAKING GROOVE |

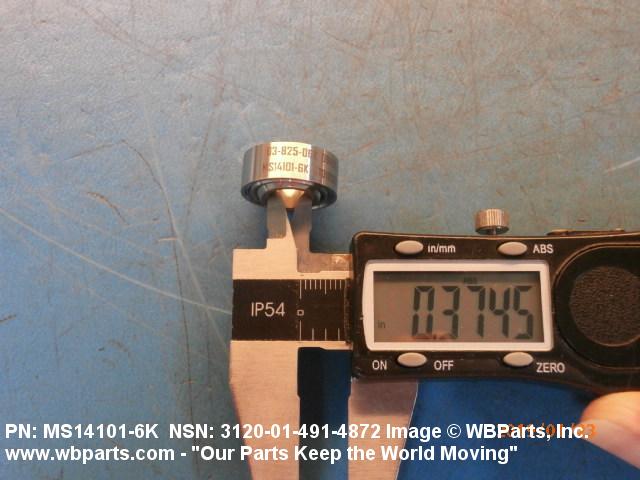

| BORE DIAMETER | 0.3745 INCHES MINIMUM AND 0.3750 INCHES MAXIMUM |

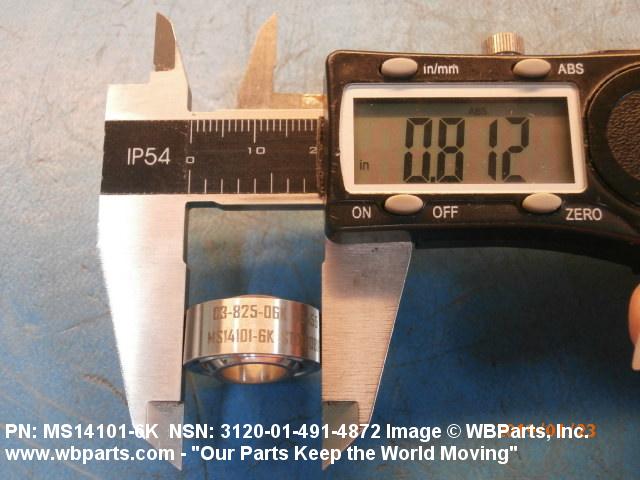

| OUTER MEMBER OUTSIDE DIAMETER | 0.8120 INCHES MINIMUM AND 0.8125 INCHES MAXIMUM |

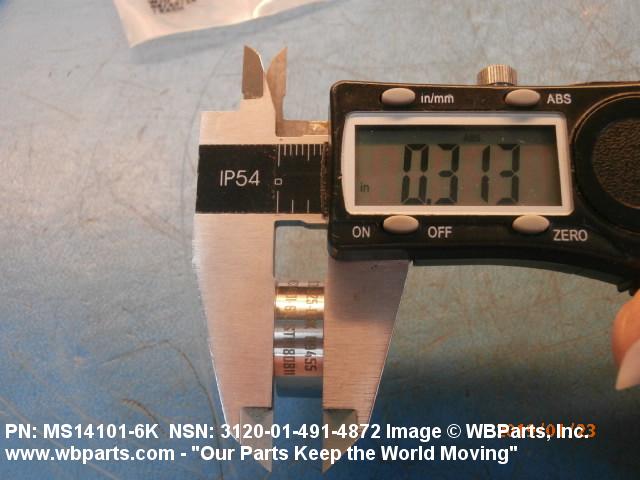

| OUTER MEMBER WIDTH | 0.3070 INCHES MINIMUM AND 0.3170 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.4040 INCHES MINIMUM AND 0.4060 INCHES MAXIMUM |
| SPECIAL FEATURES | LOW BREAK-AWAY TORQUE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS14101-6K |
Restrictions/Controls & Freight Information | NSN 3120-01-491-4872
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
