NSN 3120-01-492-5349 HSP27102A, HSP27-102A, 01-492-5349
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-492-5349 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: HSP27102A, HSP27-102A, 3120-01-492-5349, 01-492-5349, 3120014925349, 014925349
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 03 DEC 2001 | 01-492-5349 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |
Drawings & Photos | NSN 3120-01-492-5349
Demand History | NSN 3120-01-492-5349
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-492-5349 | 2019-08-224 | 2 | US |
| 3120-01-492-5349 | 2017-02-32 | 10 | us |
| 3120-01-492-5349 | 2012-01-25 | 2 | US |
| 3120-01-492-5349 | 2010-11-322 | 1 | United Kingdom |
Cross Reference | NSN 3120-01-492-5349
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HSP27-102A | 02758 | U S BEARINGS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-492-5349
Technical Data | NSN 3120-01-492-5349
| Characteristic | Specifications |
|---|---|

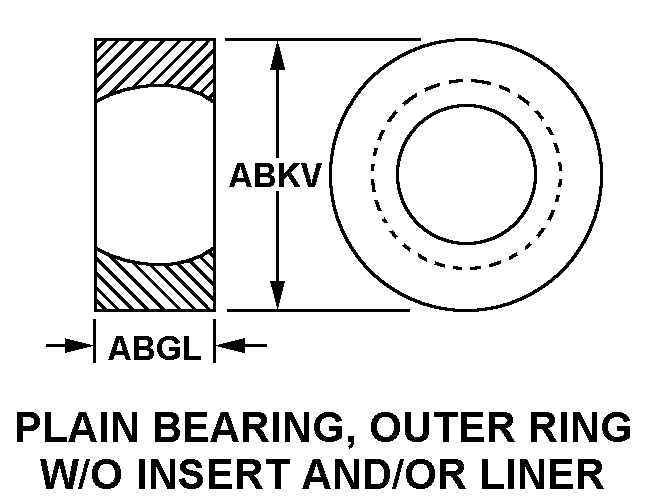

| STYLE DESIGNATOR | 11D PLAIN BEARING, OUTER RING WITHOUT INSERT AND/OR LINER |
| WIDTH | 0.8250 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 2.6970 INCHES MAXIMUM |
| LUBRICATION MATERIAL | LUBRICATING OIL |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BEARING ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 3120-01-492-5349
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
