NSN 3120-01-508-8802 MS14238C06025, MS14238C06-025, 01-508-8802
Product Details | SLEEVE BUSHING
3120-01-508-8802 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: MS14238C06025, MS14238C06-025, 3120-01-508-8802, 01-508-8802, 3120015088802, 015088802
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 04 JUN 2003 | 01-508-8802 | 13206 ( BUSHING, SLEEVE ) |

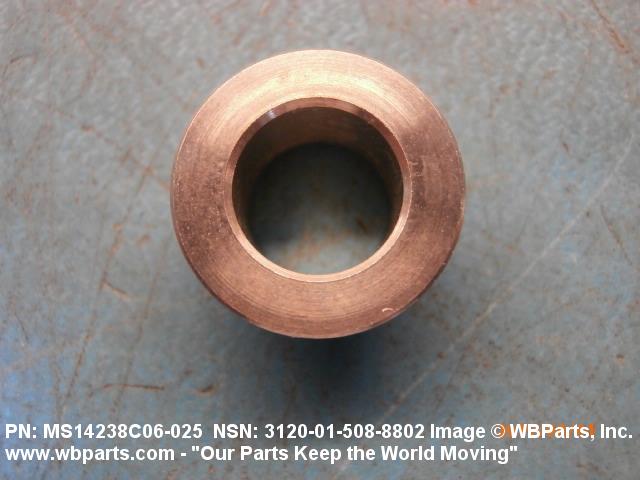

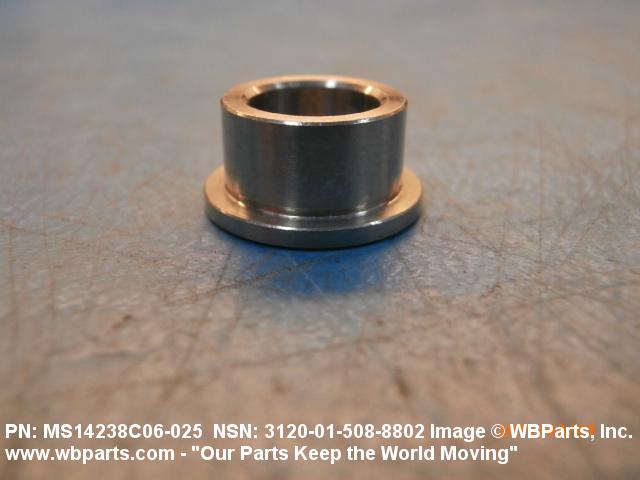

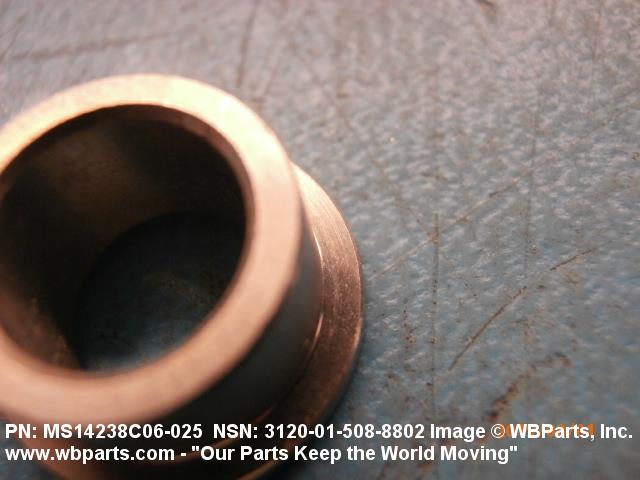

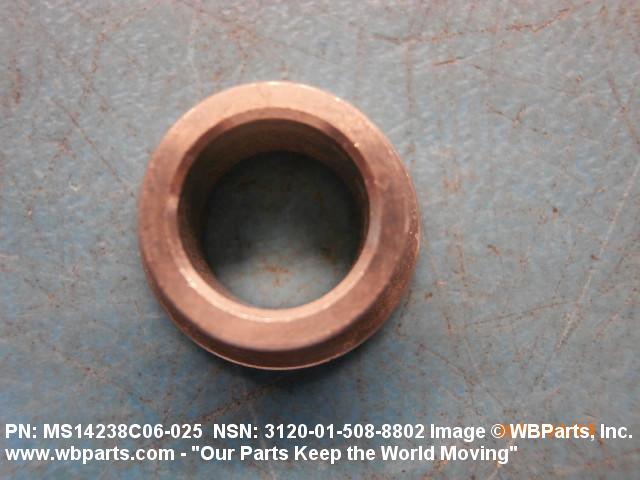

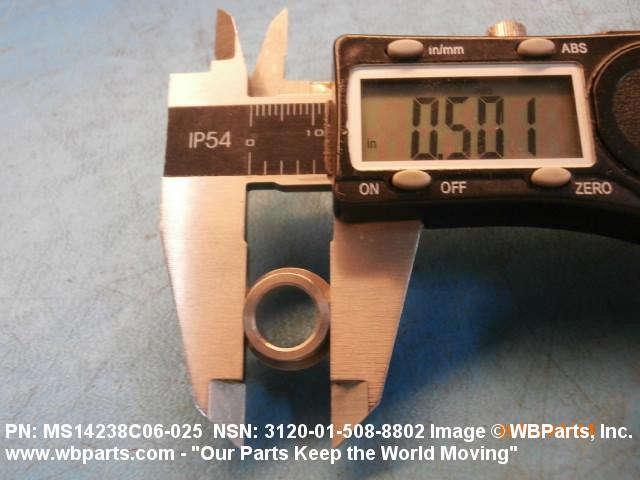

Drawings & Photos | NSN 3120-01-508-8802
Demand History | NSN 3120-01-508-8802
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-508-8802 | 2019-07-195 | 5 | South Korea |
| MS14238C06025 | 2015-10-279 | 8 | us |
| MS14238C06025 | 2015-06-155 | 40 | US |
| 3120-01-508-8802 | 2008-07-203 | 12 | US |
Cross Reference | NSN 3120-01-508-8802
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS14238C06-025 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-508-8802
Technical Data | NSN 3120-01-508-8802
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5654 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 22C SOLID |

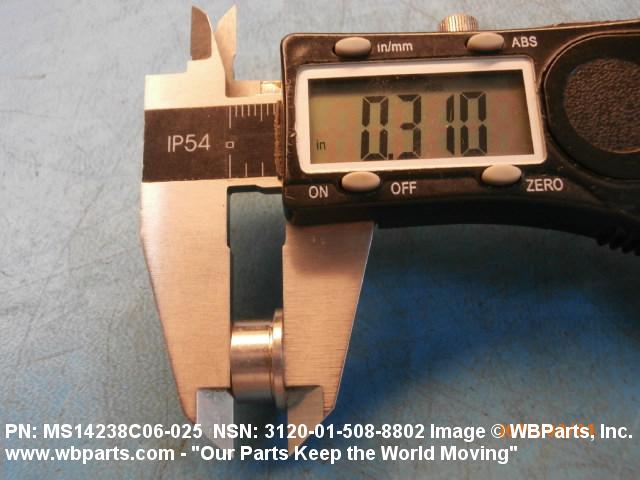

| OVERALL LENGTH | 0.3120 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.5013 INCHES MINIMUM AND 0.5020 INCHES MAXIMUM |

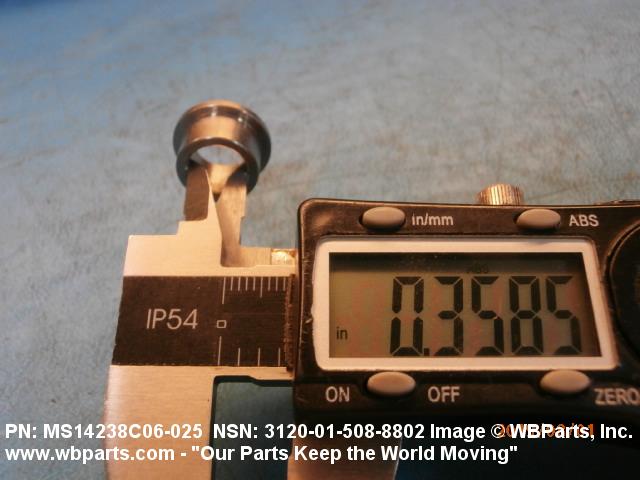

| BODY INSIDE DIAMETER | 0.3560 INCHES MINIMUM AND 0.3640 INCHES MAXIMUM |

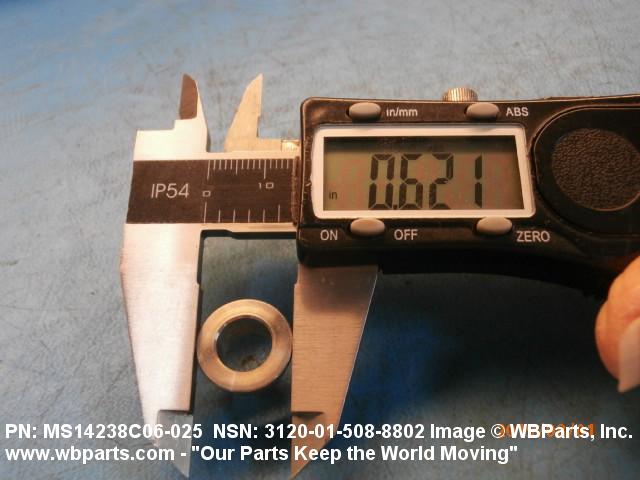

| FLANGE OUTSIDE DIAMETER | 0.6150 INCHES MINIMUM AND 0.6350 INCHES MAXIMUM |

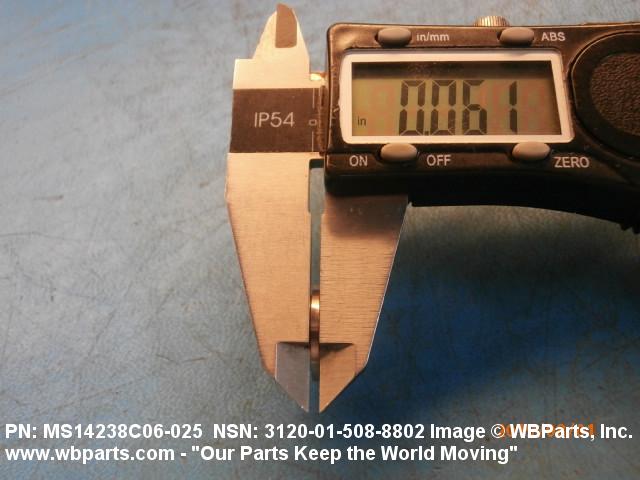

| FLANGE WIDTH | 0.0600 INCHES MINIMUM AND 0.0640 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE ALL CORNERS |
| III END ITEM IDENTIFICATION | RQ-4A GLOBAL HAWK |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BUSHING,SLEEVE FLANGED,PRESS FIT,REAM TYPE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS14238C06-025 |
Restrictions/Controls & Freight Information | NSN 3120-01-508-8802
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
