NSN 3120-01-547-9961 HS5542, HS554205016, HS5542-05016
Product Details | SLEEVE BUSHING
3120-01-547-9961 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: HS5542, HS554205016, HS5542-05016, 3120-01-547-9961, 01-547-9961, 3120015479961, 015479961
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 06 FEB 2007 | 01-547-9961 | 13206 ( BUSHING, SLEEVE ) |

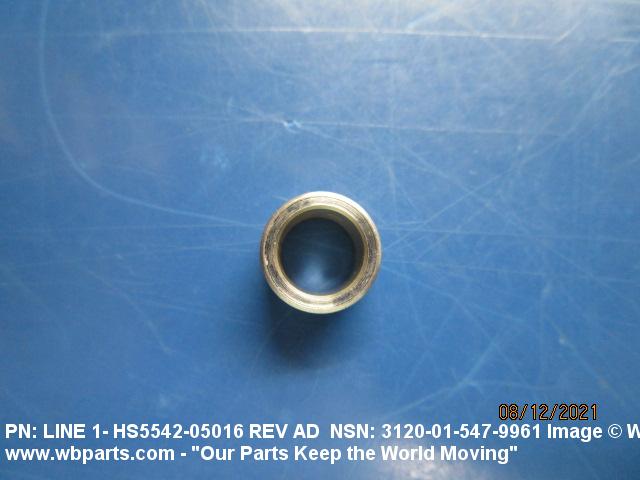

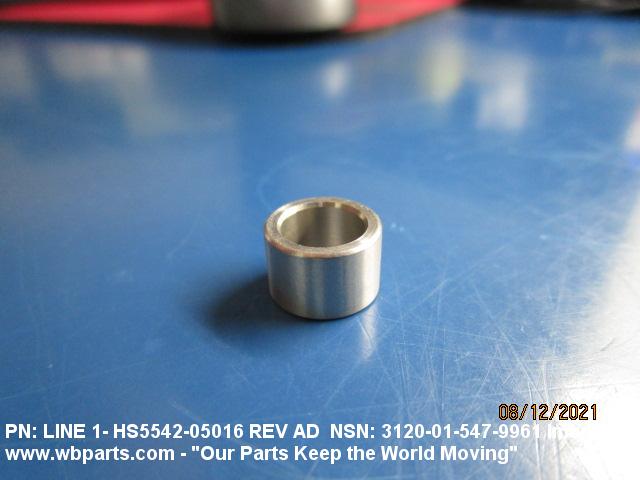

Drawings & Photos | NSN 3120-01-547-9961
Demand History | NSN 3120-01-547-9961
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HS5542-05016 | 2026-01-07 | 235 | DIBBS |
| HS5542-05016 | 2025-12-355 | 235 | DIBBS |
| HS5542-05016 | 2025-11-309 | 482 | DIBBS |
| HS5542-05016 | 2025-08-220 | 300 | DIBBS |
| HS5542-05016 | 2025-07-212 | 300 | DIBBS |
| 3120-01-547-9961 | 2024-10-291 | 206 | DIBBS |
| 3120-01-547-9961 | 2024-10-275 | 206 | DIBBS |
| 3120-01-547-9961 | 2021-07-201 | 699 | DIBBS |
| HS554205016 | 2021-07-194 | 1 | United States |
| 3120-01-547-9961 | 2021-05-143 | 699 | DIBBS |
| HS554205016 | 2021-04-95 | 1 | United States |
| 3120-01-547-9961 | 2021-03-89 | 1 | United States |
| 3120-01-547-9961 | 2021-01-11 | 250 | DIBBS |
| 3120-01-547-9961 | 2021-01-03 | 250 | DIBBS |
| 3120-01-547-9961 | 2019-01-31 | 1965 | DIBBS |
| 3120-01-547-9961 | 2017-10-293 | 2366 | DIBBS |
| 3120-01-547-9961 | 2016-08-234 | 1753 | DIBBS |
| 3120-01-547-9961 | 2013-06-157 | 3 | United States |
| 3120-01-547-9961 | 2010-02-36 | 3541 | DIBBS |
| 3120-01-547-9961 | 2009-06-160 | 1570 | DIBBS |
| 3120-01-547-9961 | 2008-04-109 | 1170 | DIBBS |
| 3120-01-547-9961 | 2008-03-84 | 2 | DIBBS |
| 3120-01-547-9961 | 2008-02-38 | 3 | DIBBS |
| 3120-01-547-9961 | 2008-02-36 | 3 | DIBBS |
| 3120-01-547-9961 | 2008-01-04 | 959 | DIBBS |
| 3120-01-547-9961 | 2007-09-261 | 26 | DIBBS |
| 3120-01-547-9961 | 2007-06-180 | 25 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-547-9961
Technical Data | NSN 3120-01-547-9961
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A 276, UNS S21800 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | 17C SOLID |

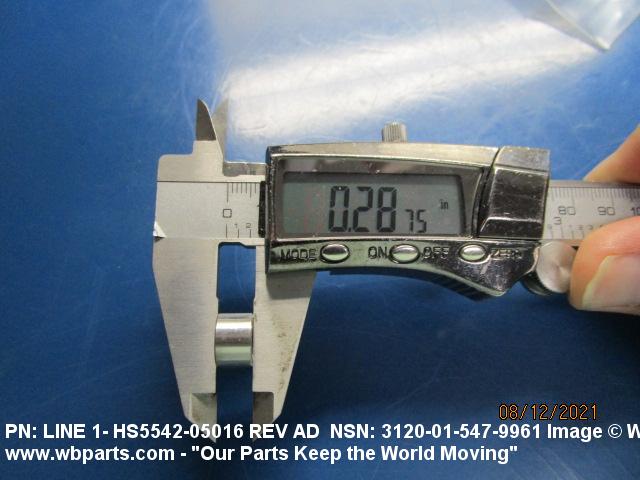

| OVERALL LENGTH | 0.2880 INCHES NOMINAL |

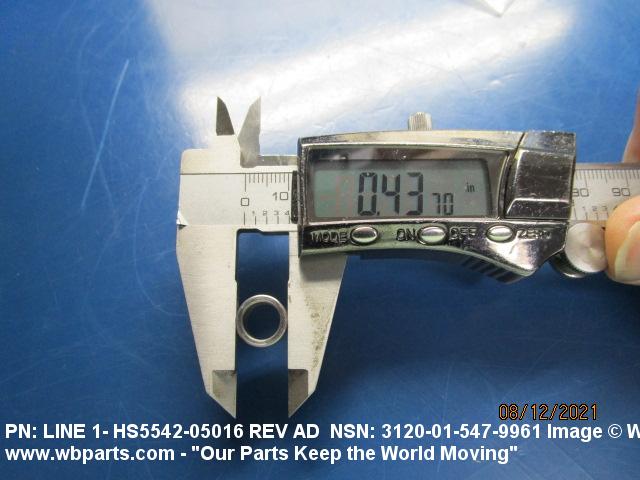

| BODY OUTSIDE DIAMETER | 0.4370 INCHES NOMINAL |

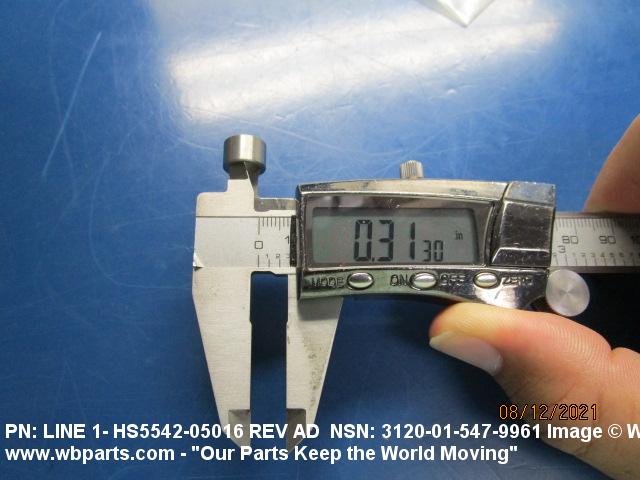

| BODY INSIDE DIAMETER | 0.3120 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | 1520-01-355-8250, HELICOPTER, ATTACK |
Restrictions/Controls & Freight Information | NSN 3120-01-547-9961
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-547-9961
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
