NSN 3120-01-558-1108 7E0558, 7E-0558, 01-558-1108
Product Details | SPHERICAL PLAIN BEARING
3120-01-558-1108 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: 7E0558, 7E-0558, 3120-01-558-1108, 01-558-1108, 3120015581108, 015581108
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 NOV 2007 | 01-558-1108 | 13204 ( BEARING, PLAIN, SPHERICAL ) |

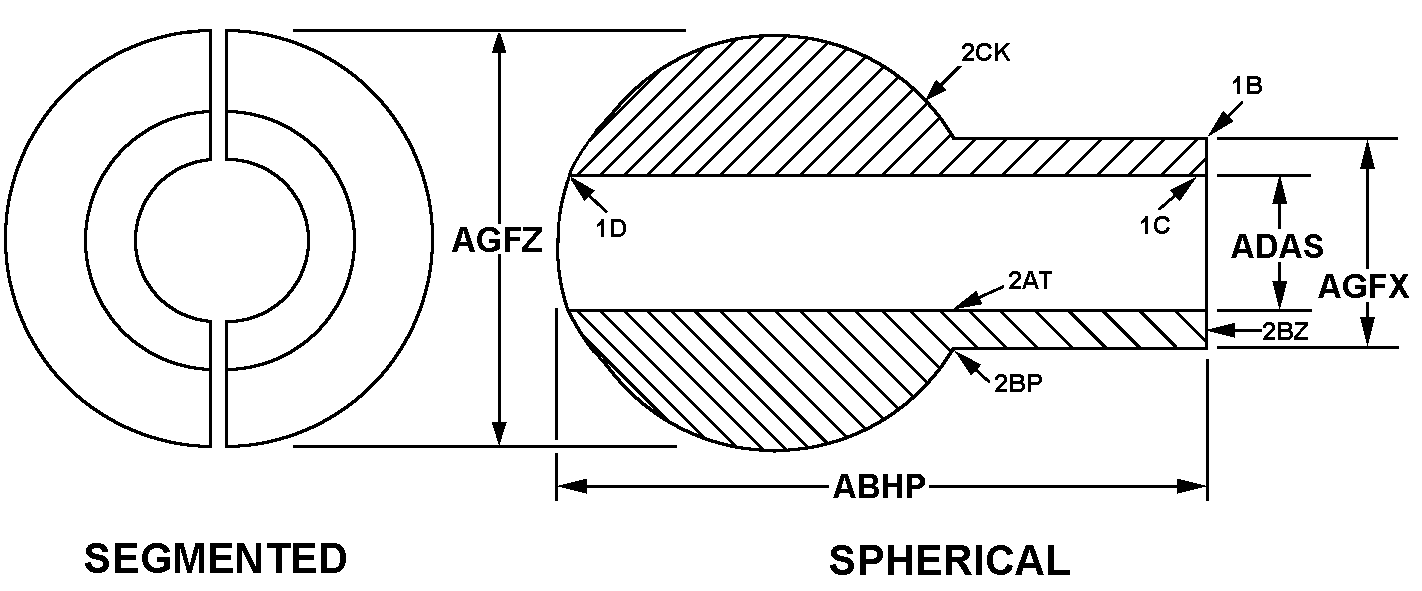

Drawings & Photos | NSN 3120-01-558-1108
Cross Reference | NSN 3120-01-558-1108
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7E-0558 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-558-1108
Technical Data | NSN 3120-01-558-1108
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 16B SEGMENTED |
| LUBRICATION MATERIAL | LUBRICATING OIL |
| SPECIAL FEATURES | USED AS A ROD BEARING DURING MAJOR ENGINE OVERHAUL |
| III END ITEM IDENTIFICATION | CATERPILLAR ENGINE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ROD BEARING |
Restrictions/Controls & Freight Information | NSN 3120-01-558-1108
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
