NSN 3120-01-584-3447 MS141036K, MS14103-6K, 01-584-3447
Product Details | SELF-ALIGNING PLAIN BEARING
3120-01-584-3447 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The item consists of a bored precision ground ball (or spherical plain bearing) around which an outer ring is fitted. The assembly may be either separable or nonseparable. Excludes BEARING, PLAIN, ROD END and BEARING, PLAIN, SPHERICAL.
Part Alternates: MS141036K, MS14103-6K, 3120-01-584-3447, 01-584-3447, 3120015843447, 015843447
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 22 APR 2010 | 01-584-3447 | 13208 ( BEARING, PLAIN, SELF-ALIGNING ) |

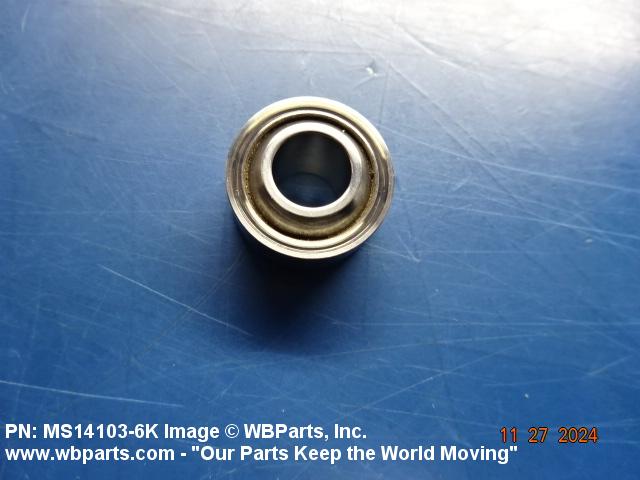

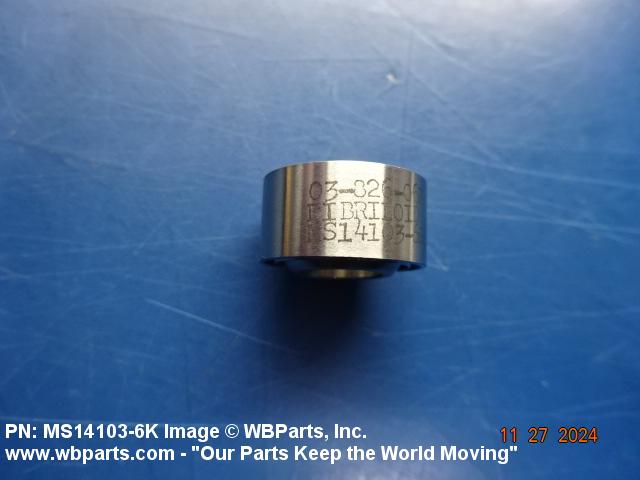

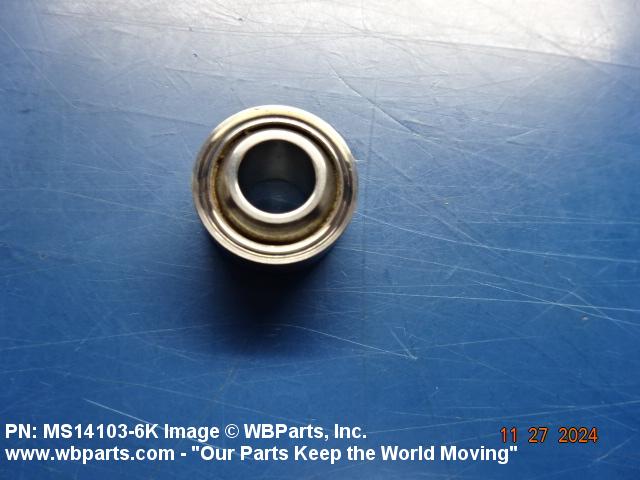

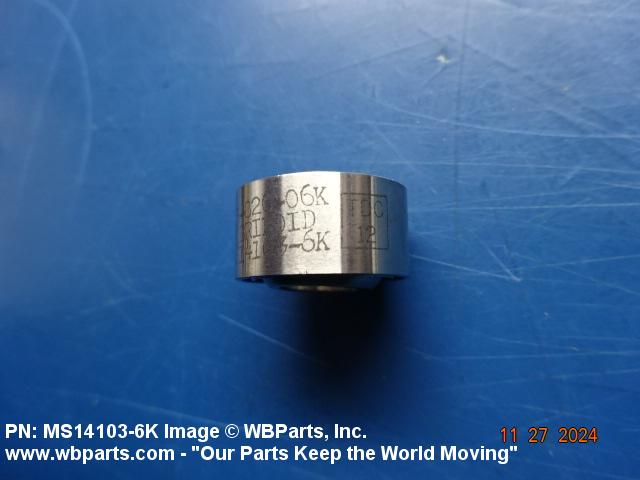

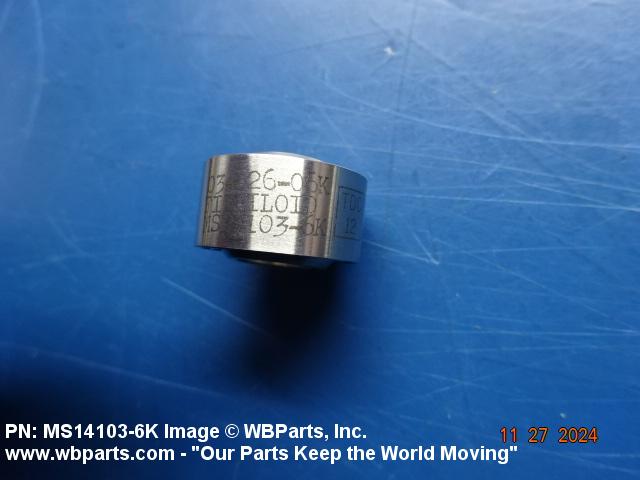

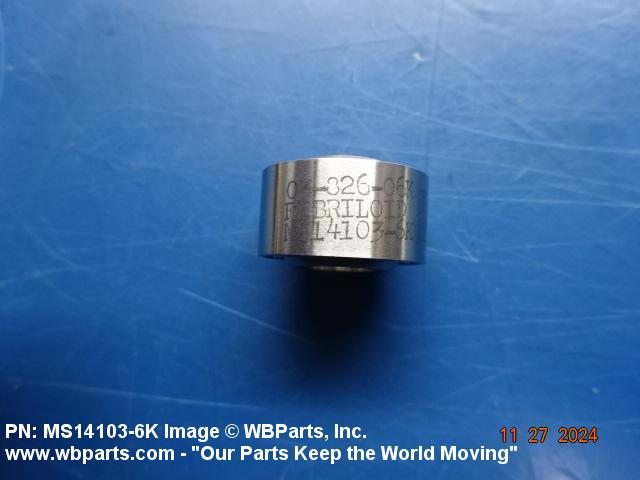

Drawings & Photos | NSN 3120-01-584-3447
Demand History | NSN 3120-01-584-3447
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-584-3447 | 2024-11-312 | 2 | United States |
| MS141036K | 2021-07-204 | 100 | US |
| MS141036K | 2021-07-204 | 200 | US |
| MS141036K | 2021-07-204 | 500 | US |
| 3120-01-584-3447 | 2021-03-76 | 15 | DIBBS |
| 3120-01-584-3447 | 2018-04-107 | 28 | DIBBS |
| 3120-01-584-3447 | 2018-04-99 | 28 | DIBBS |
| MS141036K | 2011-01-27 | 1 | US |
| MS141036K | 2010-06-160 | 8 | United States |
| MS141036K | 2009-11-310 | 22 | United States |
| MS141036K | 2007-06-162 | 25 | US |
| MS141036K | 2006-12-335 | 35 | US |
Cross Reference | NSN 3120-01-584-3447
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS14103-6K | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-584-3447
Related Products | NSN 3120-01-584-3447
Technical Data | NSN 3120-01-584-3447
| Characteristic | Specifications |
|---|---|
| INNER MEMBER WIDTH | 0.4060 INCHES NOMINAL |
| OVERALL WIDTH | 0.5000 INCHES NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | INAVY-BEARING PLAIN, SELF ALIGNING |
| HARDNESS RATING | 55.0 ROCKWELL C MINIMUM INNER MEMBER AND 62.0 ROCKWELL C MAXIMUM INNER MEMBER |
| OUTER MEMBER WIDTH | 0.5000 INCHES NOMINAL |
| SURFACE TREATMENT | PASSIVATE INNER MEMBER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5630 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| MATERIAL | STEEL COMP 440C OVERALL |
| OUTER MEMBER OUTSIDE DIAMETER | 0.8125 INCHES NOMINAL |
| END ITEM IDENTIFICATION | 1680-01-582-9973, FITTING ASSY, LH, AIR |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE INNER MEMBER |
| STYLE DESIGNATOR | WITH INSERT AND/OR LINER WITH STAKING GROOVE |
| BORE DIAMETER | 0.3750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3120-01-584-3447
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-01-584-3447
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
