NSN 3120-01-629-1386 NAS77A4016, NAS77A4-016 , 01-629-1386

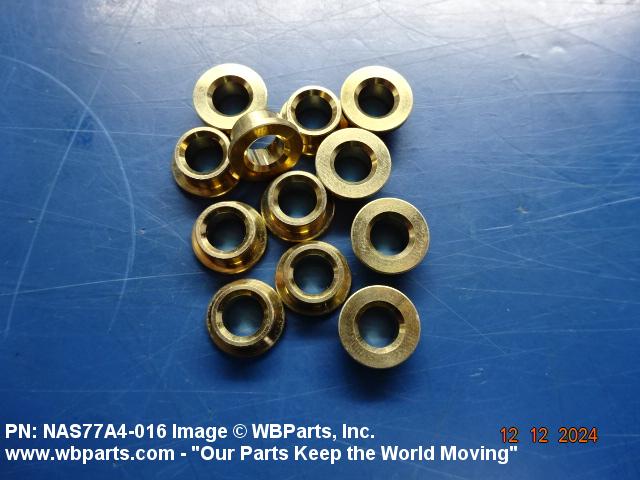

Product Details | SLEEVE BUSHING
3120-01-629-1386 A tubular shaped unthreaded item with or without a flange at one end designed to be inserted into a hole to reduce the inside diameter of the hole and to protect the surrounding body structure from damage resulting from stress, strain, and/or vibration. The overall length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body. Includes items which are divided into two or more segments which includes 180 degrees (3.141 radians) or less of the bearing periphery. For items made of rubber, see BUSHING, NONMETALLIC. See also BEARING, SLEEVE; BUSHING, TAPERED; SPACER, SLEEVE; INSULATOR, BUSHING; and BUSHING, ELECTRICAL CONDUCTOR. Excludes BUSHING, DRILL, JIG.20231200026Bearings, Plain, Unmounted53650035Bushings, Rings, Shims, and Spacers
Part Alternates: NAS77A4016, NAS77A4-016 , 3120-01-629-1386, 01-629-1386, 3120016291386, 016291386
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 2014170 | 01-629-1386 | 13206 ( BUSHING, SLEEVE ) |
Drawings & Photos | NSN 3120-01-629-1386
Demand History | NSN 3120-01-629-1386
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS77A4016 | 2024-11-325 | 12 | United States |
| NAS77A4016 | 2024-05-134 | 12 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-629-1386
Technical Data | NSN 3120-01-629-1386
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 630 OR |
| STYLE DESIGNATOR | SOLID, EXTERNAL FLANGE ONE END |
| OVERALL LENGTH | 0.212 INCHES MINIMUM AND |
| BODY OUTSIDE DIAMETER | 0.3751 INCHES MINIMUM AND |
| BODY INSIDE DIAMETER | 0.2500 INCHES MINIMUM AND |
| FLANGE OUTSIDE DIAMETER | 0.4900 INCHES MINIMUM AND |
| FLANGE WIDTH | 0.0570 INCHES MINIMUM AND |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER |
| SPECIFICATION/STANDARD DATA | 80205-NAS77 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III END ITEM IDENTIFICATION | F-35 |
Restrictions/Controls & Freight Information | NSN 3120-01-629-1386
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | GX | HQ Defense Logistics Agency, Enterprise Business Systems Fort Belvoir, VA 22060 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
