NSN 3120-01-643-2790 BACB10FB06GC , 01-643-2790, 016432790
Product Details | SPHERICAL PLAIN BEARING
3120-01-643-2790 A detachable part in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. It may be divided into two or more segments of 180 degrees (3.141 radians) or less. The item has a cylindrical bore and is basically spherical in its exterior design to allow for shaft misalignment. Excludes BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: BACB10FB06GC , 3120-01-643-2790, 01-643-2790, 3120016432790, 016432790
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 2015085 | 01-643-2790 | 13204 ( BEARING, PLAIN, SPHERICAL ) |

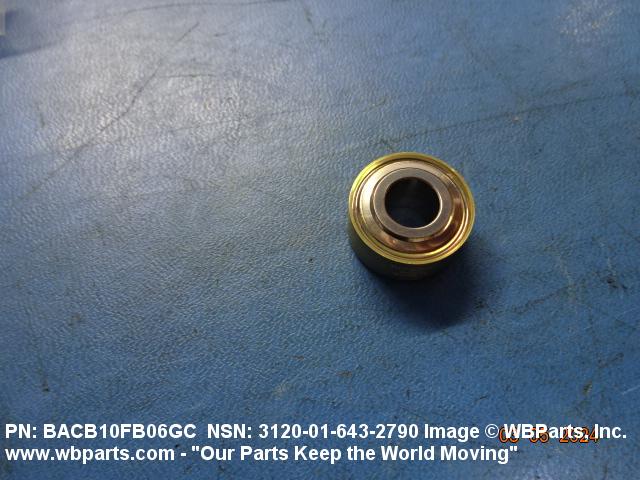

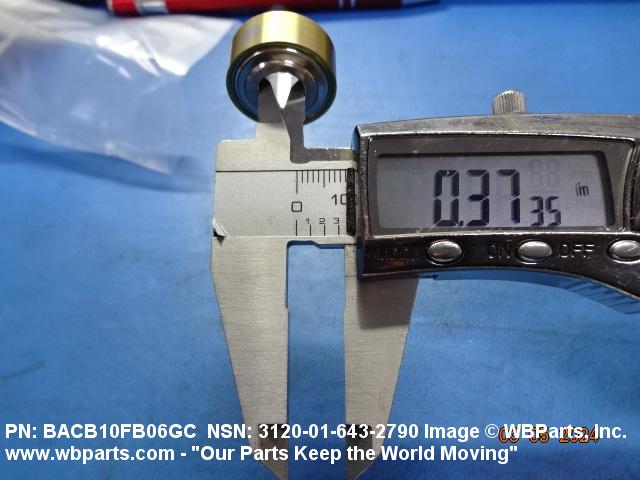

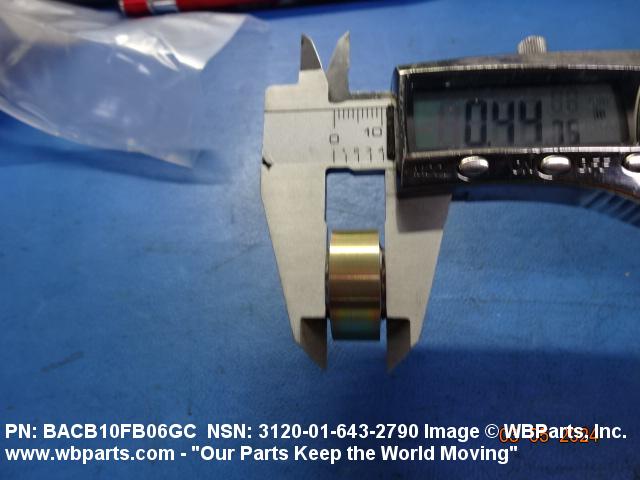

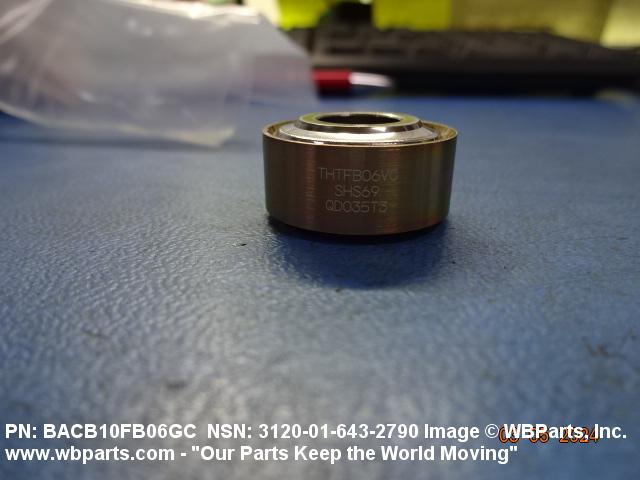

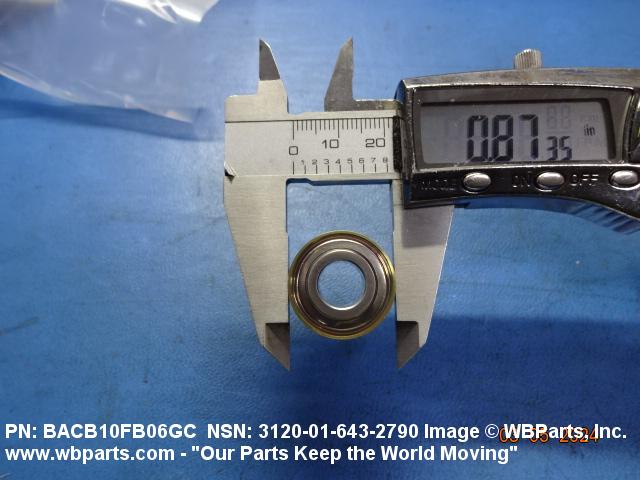

Drawings & Photos | NSN 3120-01-643-2790
Demand History | NSN 3120-01-643-2790
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACB10FB06GC | 2025-08-233 | 21 | DIBBS |
| BACB10FB06GC | 2024-08-227 | 14 | DIBBS |
| 3120-01-643-2790 | 2024-02-33 | 25 | United States |
| BACB10FB06GC | 2019-04-108 | 21 | DIBBS |
| 3120-01-643-2790 | 2018-11-310 | 20 | DIBBS |
| 3120-01-643-2790 | 2018-05-143 | 12 | DIBBS |
| 3120-01-643-2790 | 2018-05-135 | 12 | DIBBS |
| 3120-01-643-2790 | 2018-03-74 | 9 | DIBBS |
| 3120-01-643-2790 | 2018-03-66 | 9 | DIBBS |
| BACB10FB06GC | 2017-04-117 | 2 | United States |
| BACB10FB06GC | 2017-04-102 | 1 | us |
| BACB10FB06GC | 2017-04-101 | 2 | us |
| 3120-01-643-2790 | 2017-03-76 | 200 | United States |
| 3120-01-643-2790 | 2017-01-12 | 5 | DIBBS |
| 3120-01-643-2790 | 2017-01-04 | 5 | DIBBS |
| 3120-01-643-2790 | 2016-12-341 | 5 | DIBBS |
| 3120-01-643-2790 | 2016-07-206 | 10 | DIBBS |
| 3120-01-643-2790 | 2016-07-192 | 5 | DIBBS |
| 3120-01-643-2790 | 2016-03-69 | 2 | DIBBS |
| 3120-01-643-2790 | 2016-01-28 | 2 | DIBBS |
| 3120-01-643-2790 | 2015-09-271 | 1 | DIBBS |
| 3120-01-643-2790 | 2015-09-270 | 1 | DIBBS |
| BACB10FB06GC | 2010-01-12 | 1000 | IT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3120-01-643-2790
Technical Data | NSN 3120-01-643-2790
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | CADMIUM OR |
| STYLE DESIGNATOR | SOLID |
| OVERALL LENGTH | 0.3880 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.3750 INCHES NOMINAL |
| SPHERICAL BODY DIAMETER | 0.7830 INCHES NOMINAL |
| SPECIAL FEATURES | GROOVED RING |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BEARING,NARROW RING,SELF LUB LINER,SEALED,CLAMPED INSTL |
Restrictions/Controls & Freight Information | NSN 3120-01-643-2790
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3120-01-643-2790
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
