NSN 3130-00-227-4142 SEHB31, 00-227-4142, 002274142
Product Details | BALL BEARING UNIT
3130-00-227-4142 An assembled unit, composed of a housing incorporating a single or multiple row ball bearing(s), designed to meet various or specific conditions of mounting.
Part Alternates: SEHB31, 3130-00-227-4142, 00-227-4142, 3130002274142, 002274142
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-227-4142 | 30556 ( BEARING UNIT, BALL ) |
Drawings & Photos | NSN 3130-00-227-4142
Cross Reference | NSN 3130-00-227-4142
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SEHB31 | 57448 | STEPHENS-ADAMSON INC A SUB OF ALLIS-CHALMERS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-00-227-4142
Related Products | NSN 3130-00-227-4142
Technical Data | NSN 3130-00-227-4142
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 1.9375 INCHES NOMINAL |
| MATERIAL | IRON MALLEABLE HOUSING STEEL SEAL |

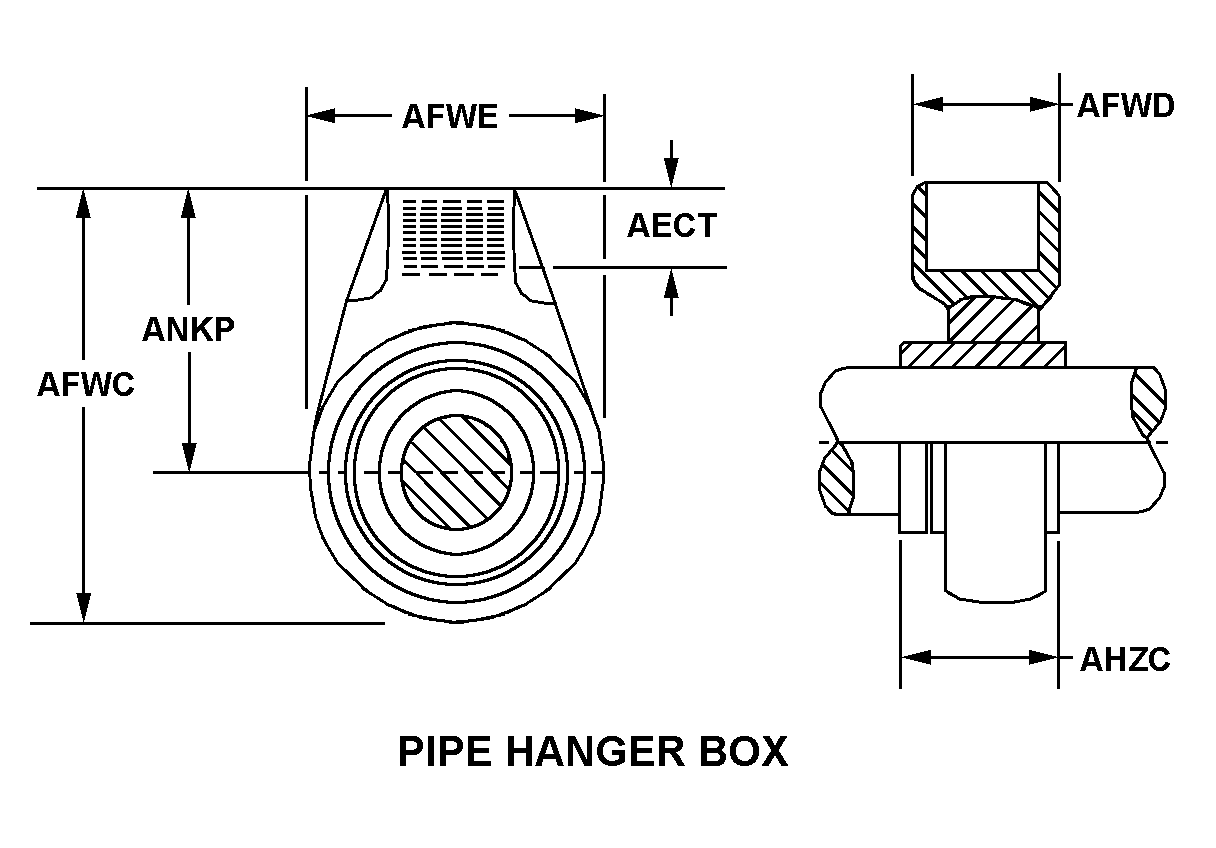

| STYLE DESIGNATOR | A60 PIPE HANGER BOX |
| THREAD DEPTH | 0.8125 INCHES NOMINAL |
| HOUSING HEIGHT | 5.3750 INCHES NOMINAL |
| HOUSING LENGTH | 1.8750 INCHES NOMINAL |
| HOUSING WIDTH | 4.2500 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 2.0312 INCHES NOMINAL |
| HEIGHT FROM BOTTOM OF BASE TO BORE CENTERLINE | 3.2500 INCHES NOMINAL |
| NOMINAL PIPE SIZE DESIGNATION | 1.000 INCHES |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION FITTING TYPE | HYDRAULIC |
| LUBRICATION FITTING ANGLE FROM HORIZONTAL CENTERLINE | 45.0 DEGREES NOMINAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| ROLLING ELEMENT GROOVE QUANTITY | 1 |
| ALIGNMENT TYPE | SELF-ALIGNING |
| TEMP RATING | 275.0 DEG FAHRENHEIT |
| BLOCK TYPE | FIXED |
| SHAFT END TYPE | OPEN |
| SEAL TYPE | LABYRINTH |
| SEAL LOCATION | BOTH ENDS |
| ROTATING ELEMENT LOCKING METHOD | DIRECT |
| LOAD CAPABILITY TYPE | RADIAL |
| FEATURES PROVIDED | GROUND ROLLING ELEMENT GROOVE |
Restrictions/Controls & Freight Information | NSN 3130-00-227-4142
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
