NSN 3130-00-259-9973 L20R, 00-259-9973, 002599973
Product Details | BALL BEARING UNIT
3130-00-259-9973 An assembled unit, composed of a housing incorporating a single or multiple row ball bearing(s), designed to meet various or specific conditions of mounting.
Part Alternates: L20R, 3130-00-259-9973, 00-259-9973, 3130002599973, 002599973
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 27 JUN 1973 | 00-259-9973 | 30556 ( BEARING UNIT, BALL ) |
Drawings & Photos | NSN 3130-00-259-9973
Demand History | NSN 3130-00-259-9973
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| L20R | 2017-02-47 | 20 | United States |
Cross Reference | NSN 3130-00-259-9973
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L20R | 02695 | MORSE INDUSTRIAL CORP SEALMASTER BEARING DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-00-259-9973
Related Products | NSN 3130-00-259-9973
Technical Data | NSN 3130-00-259-9973
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 1.2500 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |

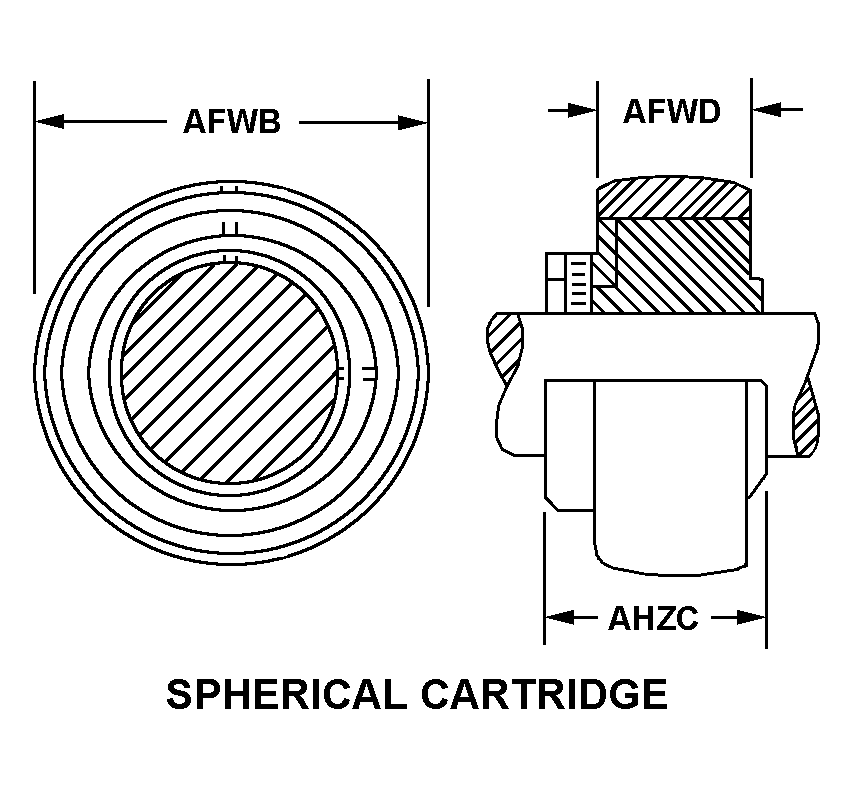

| STYLE DESIGNATOR | A55 SPHERICAL CARTRIDGE |
| HOUSING DIAMETER | 2.4409 INCHES NOMINAL |
| HOUSING LENGTH | 0.7087 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 1.4062 INCHES NOMINAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| ROLLING ELEMENT GROOVE QUANTITY | 1 |
| ALIGNMENT TYPE | RIGID |
| BLOCK TYPE | FIXED |
| SHAFT END TYPE | OPEN |
| SEAL TYPE | CONTACT |
| SEAL LOCATION | BOTH ENDS |
| ROTATING ELEMENT LOCKING METHOD | SETSCREW LOCKING COLLAR |
| COLLAR LOCATION | ONE END |
| LOAD CAPABILITY TYPE | RADIAL |
| FEATURES PROVIDED | GROUND ROLLING ELEMENT GROOVE |
Restrictions/Controls & Freight Information | NSN 3130-00-259-9973
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
