NSN 3130-01-318-2101 SPB20OPNMODIFIED, SPB-20-OPN-MODIFIED, 408058022001
Product Details | BALL BEARING UNIT
3130-01-318-2101 An assembled unit, composed of a housing incorporating a single or multiple row ball bearing(s), designed to meet various or specific conditions of mounting.
Part Alternates: SPB20OPNMODIFIED, SPB-20-OPN-MODIFIED, 408058022001, 4080-58022-001, 3130-01-318-2101, 01-318-2101, 3130013182101, 013182101
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 14 APR 1990 | 01-318-2101 | 30556 ( BEARING UNIT, BALL ) |
Drawings & Photos | NSN 3130-01-318-2101
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-01-318-2101
Related Products | NSN 3130-01-318-2101
Technical Data | NSN 3130-01-318-2101
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 1.2500 INCHES NOMINAL |
| MATERIAL | STEEL BEARING ALUMINUM ALLOY 6061 HOUSING RUBBER SYNTHETIC SEAL |
| SURFACE TREATMENT | PLASTIC POLYURETHANE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-83286 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

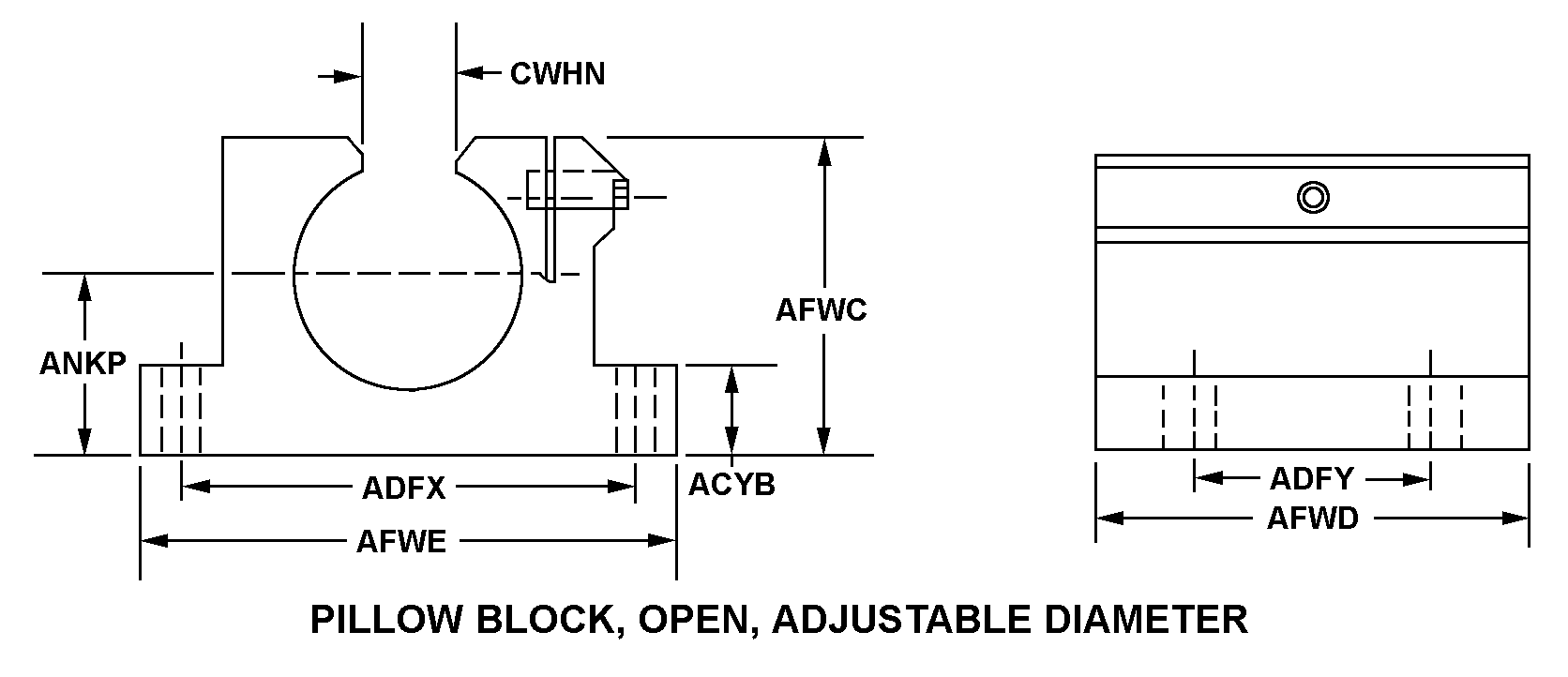

| STYLE DESIGNATOR | A8 PILLOW BLOCK, OPEN, ADJUSTABLE DIAMETER |
| BASE THICKNESS | 0.407 INCHES MINIMUM AND 0.469 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 3.490 INCHES MINIMUM AND 3.510 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.990 INCHES MINIMUM AND 2.010 INCHES MAXIMUM |
| HOUSING HEIGHT | 2.500 INCHES MINIMUM AND 2.624 INCHES MAXIMUM |
| HOUSING LENGTH | 3.250 INCHES MINIMUM AND 3.500 INCHES MAXIMUM |
| HOUSING WIDTH | 3.938 INCHES MINIMUM AND 4.062 INCHES MAXIMUM |
| HEIGHT FROM BOTTOM OF BASE TO BORE CENTERLINE | 1.497 INCHES MINIMUM AND 1.503 INCHES MAXIMUM |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.203 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| LUBRICATION FITTING TYPE | SELF LUBRICATED |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| ALIGNMENT TYPE | SELF-ALIGNING |
| BLOCK TYPE | FIXED |
| SHAFT END TYPE | OPEN |
| SEAL TYPE | CONTACT |
| SEAL LOCATION | BOTH ENDS |
| LOAD CAPABILITY TYPE | RADIAL AND THRUST |
Restrictions/Controls & Freight Information | NSN 3130-01-318-2101
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3130-01-318-2101
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
