NSN 3130-01-459-5441 FE1496X, 01-459-5441, 014595441
Product Details | BEARING UNIT HOUSING
3130-01-459-5441 A single or multiple piece item without ball, plain or roller bearing(s). It is designed to meet various or specific conditions of mounting. For items with bearings, see BEARING UNIT, BALL; BEARING UNIT, PLAIN; and BEARING UNIT, ROLLER.
Part Alternates: FE1496X, 3130-01-459-5441, 01-459-5441, 3130014595441, 014595441
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 05 OCT 1998 | 01-459-5441 | 30559 ( HOUSING, BEARING UNIT ) |

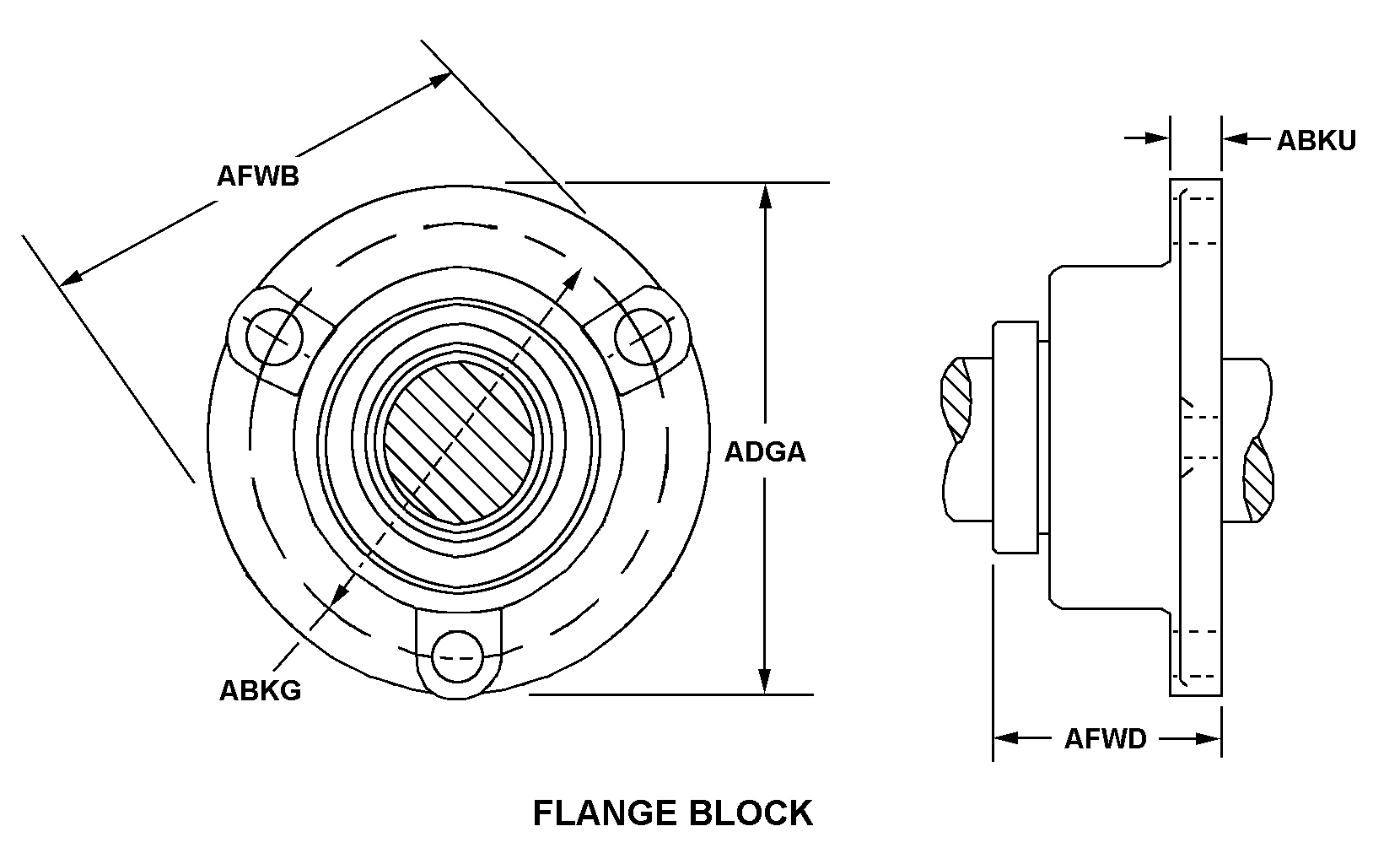

Drawings & Photos | NSN 3130-01-459-5441
Cross Reference | NSN 3130-01-459-5441
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FE1496X | 10741 | CARLISLE AND FINCH COMPANY, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3130-01-459-5441
Technical Data | NSN 3130-01-459-5441
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 0.3790 INCHES MINIMUM AND 0.3810 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY OVERALL |
| STYLE DESIGNATOR | A39 FLANGE BLOCK |
| BOLT CIRCLE DIAMETER | 1.562 INCHES NOMINAL |
| FLANGE THICKNESS | 0.500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 3.422 INCHES NOMINAL |
| HOUSING DIAMETER | 3.422 INCHES NOMINAL |
| HOUSING LENGTH | 1.438 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | 6230-00-144-3422 |
Restrictions/Controls & Freight Information | NSN 3130-01-459-5441
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
