NSN 3210-00-115-0140 MMWP0S681, MMWP0S68-1, MILS52205
Product Details | CIRCULAR SAWMILL
3210-00-115-0140 A power operated circular saw with a sawmill carriage, used for sawing logs into rough lumber. It may include additional equipment consisting of extra blades, sawdust conveyor, and the like.
Part Alternates: MMWP0S681, MMWP0S68-1, MILS52205, 3210-00-115-0140, 00-115-0140, 3210001150140, 001150140
Woodworking Machinery and Equipment | Sawmill and Planing Mill Machinery
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 32 | 23 SEP 1968 | 00-115-0140 | 07243 ( SAWMILL, CIRCULAR ) |
Drawings & Photos | NSN 3210-00-115-0140
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3210-00-115-0140
Related Products | NSN 3210-00-115-0140
Technical Data | NSN 3210-00-115-0140
| Characteristic | Specifications |
|---|---|
| MOUNTING TYPE | SEMITRAILER |
| DESIGN TYPE | RIGHT-HAND |
| CARRIAGE TYPE | HEAD BLOCK |
| CARRIAGE FRAME MATERIAL | STEEL |
| CARRIAGE TRUCK QUANTITY | 4 |
| WHEEL QUANTITY PER TRUCK | 2 |
| WHEEL DIAMETER ACCOMMODATED | 10.000 INCHES NOMINAL |
| AXLE DIAMETER | 2.000 INCHES NOMINAL |
| BEARING TYPE | ANTIFRICTION |
| AUTOMATIC REVERSIBLE TRACK SCRAPER FEATURE | INCLUDED |
| STEEL HEAD BLOCK QUANTITY | 4 |
| WIRE CABLE DRIVE FEATURE | INCLUDED |
| HUSK LENGTH | 68.000 INCHES NOMINAL |
| HUSK WIDTH | 38.000 INCHES NOMINAL |
| CARRIAGE LENGTH | 192.000 INCHES NOMINAL |
| CARRIAGE WIDTH | 72.000 INCHES NOMINAL |
| TRACKWAY LENGTH | 540.000 INCHES NOMINAL |
| SAW MANDREL DIAMETER | 2.438 INCHES NOMINAL |
| SAW MANDREL LENGTH | 58.000 INCHES NOMINAL |
| SAW MANDREL PULLEY FACE TYPE | GROOVED |
| PULLEY FACE WIDTH | 10.375 INCHES NOMINAL |
| PULLEY DIAMETER | 36.500 INCHES NOMINAL |
| PULLEY BORE DIAMETER | 2.438 INCHES NOMINAL |
| SAW BLADE DESIGN | LOG |
| BLADE DIAMETER | 54.000 INCHES MINIMUM AND 60.000 INCHES MAXIMUM |

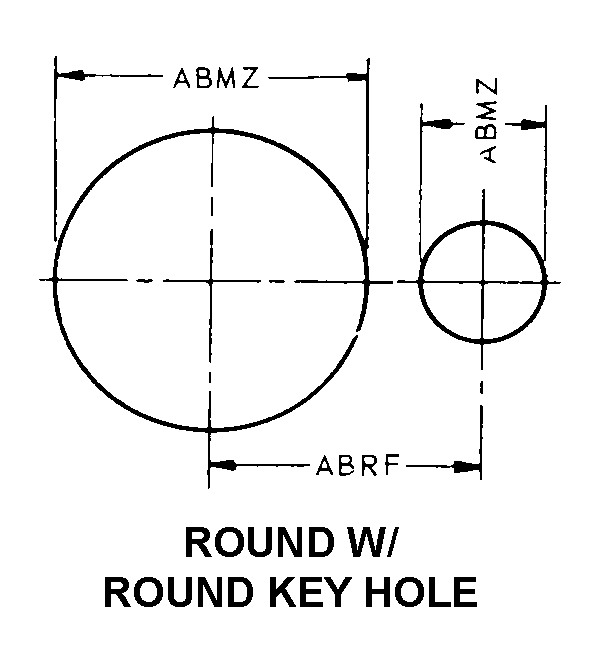

| ARBOR HOLE STYLE | 5 ROUND W/ ROUND KEY HOLE |
| DIAMETER | 1.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 3.000 INCHES NOMINAL |
| TOP SAW RIG | NOT INCLUDED |
| PRIME MOVER TYPE | DIESEL ENGINE |
| PRIME MOVER QUANTITY | 1 OR 1 |
| PRIME MOVER HORSEPOWER RATING | 60.0 |
| SPECIAL FEATURES | ABMZ1B 2 PIN HOLES |
| MANUFACTURERS CODE | 26508 |
| DESIGN CONTROL REFERENCE | MMWP0S68-1 |
Restrictions/Controls & Freight Information | NSN 3210-00-115-0140
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 131670 | TOOLS PWR O/T PWR HND TOOLS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3210-00-115-0140
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | M | Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel |
| Appropriation and Budget Activity | Q | Other Support Equipment |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | W | Line of Communication/Base Support Systems |
| Weapons Systems/End Item or Homogeneous Group | WU | Tool Sets and Miscellaneous Sets, Kits and Outfits |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | D | When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
