NSN 3210-00-708-7627 D812D, D912H, 00-708-7627
Product Details | CIRCULAR SAWMILL
3210-00-708-7627 A power operated circular saw with a sawmill carriage, used for sawing logs into rough lumber. It may include additional equipment consisting of extra blades, sawdust conveyor, and the like.
Part Alternates: D812D, D912H, 3210-00-708-7627, 00-708-7627, 3210007087627, 007087627
Woodworking Machinery and Equipment | Sawmill and Planing Mill Machinery
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 32 | 14 FEB 1968 | 00-708-7627 | 07243 ( SAWMILL, CIRCULAR ) |
Drawings & Photos | NSN 3210-00-708-7627
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3210-00-708-7627
Related Products | NSN 3210-00-708-7627
Technical Data | NSN 3210-00-708-7627
| Characteristic | Specifications |
|---|---|
| MOUNTING TYPE | STATIONARY |
| DESIGN TYPE | RIGHT-HAND |
| CARRIAGE TYPE | TRACK |
| CARRIAGE FRAME MATERIAL | STEEL |
| CARRIAGE TRUCK QUANTITY | 1 |
| WHEEL QUANTITY PER TRUCK | 4 |
| WHEEL DIAMETER ACCOMMODATED | 2.000 INCHES NOMINAL |
| AXLE DIAMETER | 0.625 INCHES NOMINAL |
| BEARING TYPE | ANTIFRICTION |
| AUTOMATIC REVERSIBLE TRACK SCRAPER FEATURE | NOT INCLUDED |
| WIRE CABLE DRIVE FEATURE | NOT INCLUDED |
| CARRIAGE LENGTH | 42.500 INCHES NOMINAL |
| CARRIAGE WIDTH | 33.000 INCHES NOMINAL |
| TRACKWAY LENGTH | 552.000 INCHES NOMINAL |
| SAW MANDREL DIAMETER | 1.438 INCHES NOMINAL |
| SAW MANDREL LENGTH | 14.750 INCHES NOMINAL |
| SAW MANDREL PULLEY FACE TYPE | GROOVED OR GROOVED |
| PULLEY FACE WIDTH | 1.875 INCHES NOMINAL |
| PULLEY DIAMETER | 6.500 INCHES MINIMUM AND 14.000 INCHES MAXIMUM |
| PULLEY BORE DIAMETER | 1.125 INCHES MINIMUM AND 1.438 INCHES MAXIMUM |
| SAW BLADE DESIGN | LOG AND FIXED EDGER AND ADJUSTABLE EDGER |
| BLADE DIAMETER | 13.000 INCHES MINIMUM AND 30.000 INCHES MAXIMUM |

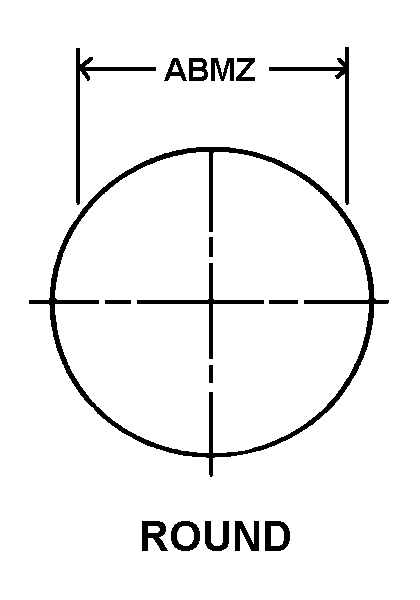

| ARBOR HOLE STYLE | 1 ROUND |
| DIAMETER | 1.375 INCHES NOMINAL |
| TOP SAW RIG | NOT INCLUDED |
| PRIME MOVER TYPE | DIESEL ENGINE |
| PRIME MOVER QUANTITY | 1 |
| PRIME MOVER HORSEPOWER RATING | 40.0 |
| SPECIAL FEATURES | EQUIPED W/4 STABILIZING CAM ROLLS 1.5 IN. FACE DIA. ON TRUCK IN ADDITION TO WHEELS,13 IN. DIA. EDGER SAWS FOR DIMENSIONAL MILLING OPERATIONS,20 IN. DIA. SAWS FOR CANTING OPERATIONS,CAN BE READILY DISASSEMBLED FOR RELOCATION |
Restrictions/Controls & Freight Information | NSN 3210-00-708-7627
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 131670 | TOOLS PWR O/T PWR HND TOOLS |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | JS | Naval ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3210-00-708-7627
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
