NSN 3439-00-033-9670 CE181447, 00-033-9670, 000339670
Product Details | ELECTRIC SOLDERING IRON TIP
3439-00-033-9670 A metallic item designed to be attached to the end of an electric soldering iron or an electric soldering iron handle for the purpose of transmitting heat to the item being soldered. Tt may include an integral electrical heating element and may be designed to accommodate a tiplet.
Part Alternates: CE181447, 3439-00-033-9670, 00-033-9670, 3439000339670, 000339670
Metalworking Machinery | Miscellaneous Welding, Soldering, and Brazing Supplies and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 01 JAN 1963 | 00-033-9670 | 11205 ( TIP, ELECTRIC SOLDERING IRON ) |
Drawings & Photos | NSN 3439-00-033-9670
Cross Reference | NSN 3439-00-033-9670
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CE181447 | 98230 | NATIONAL SECURITY AGENCY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3439-00-033-9670
Technical Data | NSN 3439-00-033-9670
| Characteristic | Specifications |
|---|---|
| TIP TYPE | STRAIGHT |
| MATERIAL | COPPER |
| BODY STYLE | A1 ROUND |
| OVERALL LENGTH | 3.781 INCHES NOMINAL |
| MOUNTING END DIAMETER | 0.620 INCHES NOMINAL |
| TIP WIDTH | 0.890 INCHES NOMINAL |
| TIPLET ACCOMMODATION | NOT INCLUDED |

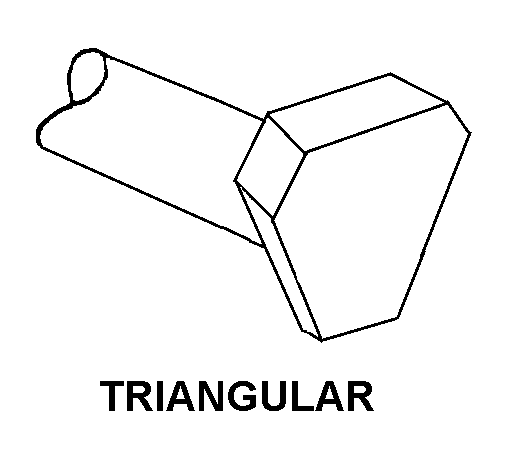

| TIP END STYLE | B14 TRIANGULAR |
| INTEGRAL HEATING ELEMENT | NOT INCLUDED |
| MOUNTING METHOD | PLUG W/SETSCREW |
| MANUFACTURERS CODE | 98230 |
| DESIGN CONTROL REFERENCE | CE181447 |
Restrictions/Controls & Freight Information | NSN 3439-00-033-9670
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3439-00-033-9670
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 5N | Consumable cryptologic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FPD | Air Force Cryptologic Support Center (ESC) San Antonio, TX 78243-5000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
