NSN 3439-01-322-3221 514T04701, 514T047-01, 01-322-3221
Product Details | SOLDERING AID HEAT SINK
3439-01-322-3221 An item for dissipating heat during soldering operations which incorporates either a liquid absorbent in the form of foam or gel, or a metallic absorbent. The metallic absorbent is designed for attachment to heat sensitive components, such as diodes or transistors, to prevent thermal changes. Excludes HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENTS.
Part Alternates: 514T04701, 514T047-01, 3439-01-322-3221, 01-322-3221, 3439013223221, 013223221
Metalworking Machinery | Miscellaneous Welding, Soldering, and Brazing Supplies and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 03 JUL 1990 | 01-322-3221 | 61653 ( HEAT SINK, SOLDERING AID ) |
Drawings & Photos | NSN 3439-01-322-3221
Cross Reference | NSN 3439-01-322-3221
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 514T047-01 | 65065 | WOODWARD FST INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3439-01-322-3221
Related Products | NSN 3439-01-322-3221
Technical Data | NSN 3439-01-322-3221
| Characteristic | Specifications |
|---|---|

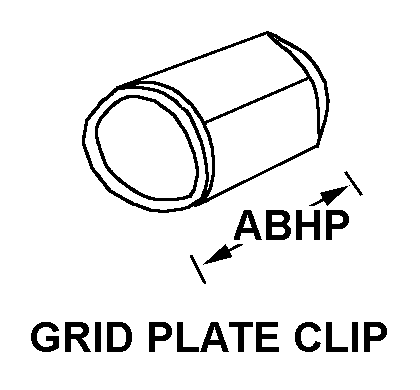

| STYLE DESIGNATOR | D5 GRID PLATE CLIP |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| SPECIAL FEATURES | RQRD TO ABSORB HEAT DURING WELDING PROCESS DURING INSTALLATION OF INLET FITTING;C/O TURNED BAR STOCK W/THREADED ID AND GAS PURGE CROSS-HOLE;0.8 IN. DIA BY 1.0 IN. LG |
Restrictions/Controls & Freight Information | NSN 3439-01-322-3221
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 746 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3439-01-322-3221
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
